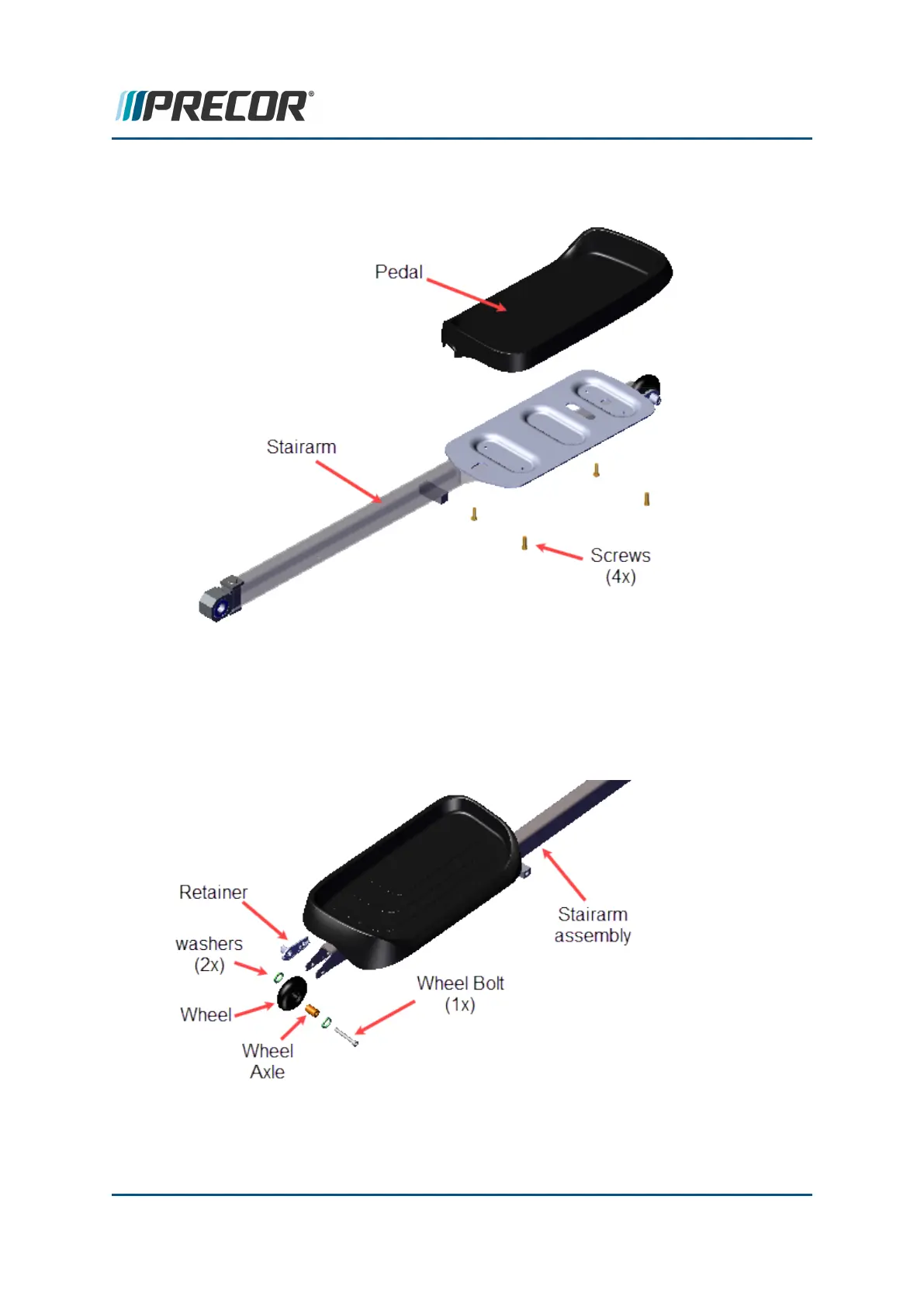

1. If the Pedal was removed, position the Pedal.onto the Stairarm weldment pedal bracket
and secure using the four #2 Phillips screws, torque to 25 in-lbs (2.8 Nm).
Stairarm Wheel Installation
2. If the Stairarm Wheel was removed, reinstall the Wheel. Install the Wheel Axle into the
Wheel. Then insert the Wheel and two washers (2x) into the Stairarm weldment wheel
mounting bracket. Secure using the Retainer and 1/4" hex key bolt, torque to 100 in-lbs
(11.3 Nm).
+++++++++++++++++++
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 202
6 Replacement Procedures
Stairarm Replacement
