Stairarm Linkarm Installation

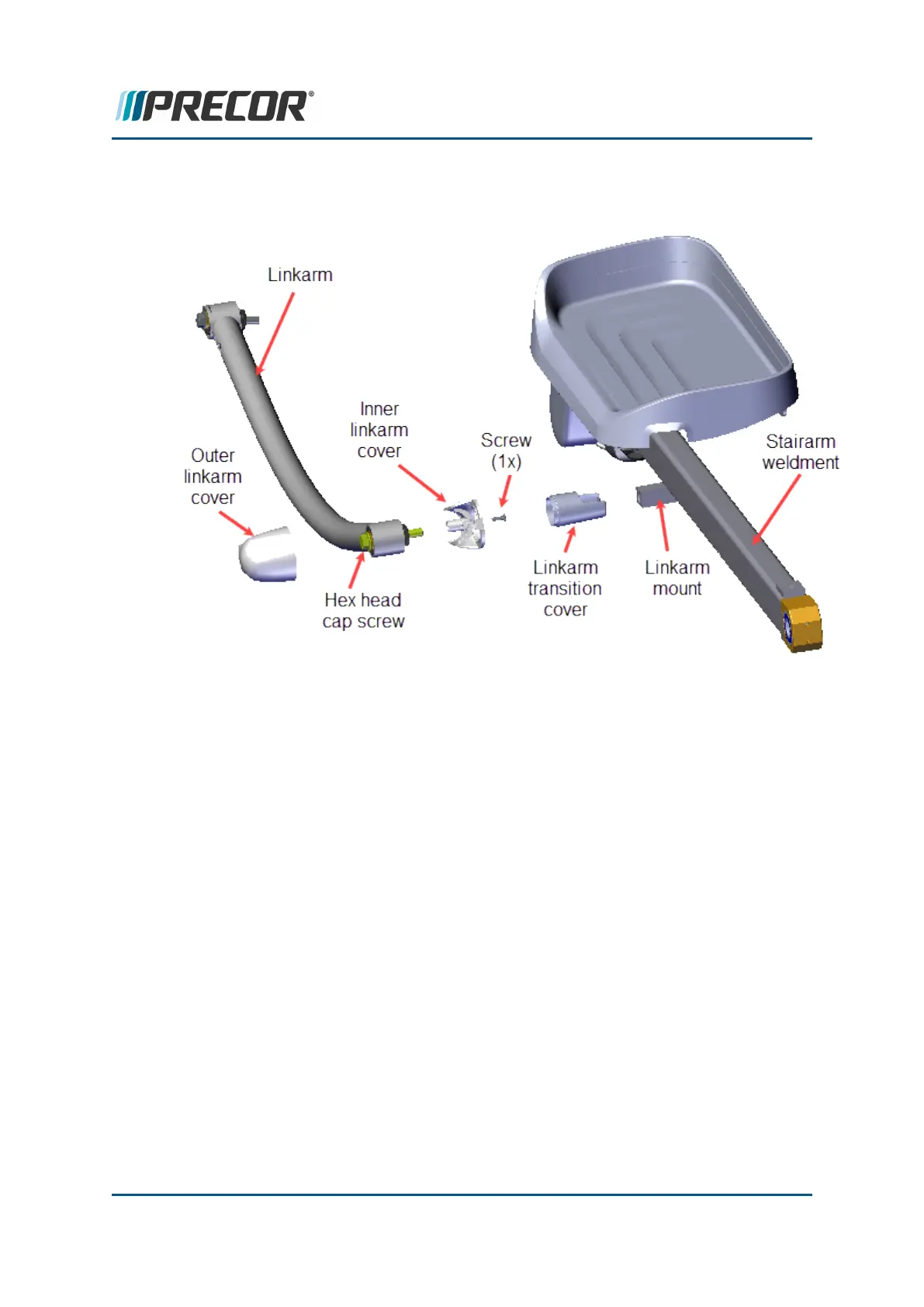

3. Reinstall the Linkarm onto the stairarm (moving arm models only):
a. Make sure the Linkarm Transition cover is installed onto the stairarm weldment
Linkarm Mount.
b. Position the Inner Linkarm cover onto the Linkarm and then install the Linkarm
onto the stairarm weldment Linkarm Mount. Secure using 9/16" hex head screw
and torque to 300 +/- 90 in-lbs (34 +/- 10 Nm).
c. Reinstall the Outer Linkarm Cover and secure using the #2 Phillips screw.
4. Reinstall the stairarm wheel onto the ramp. Carefully place the wheel onto the back of
the track and then slide the wheel up the ramp.
Stairarm Input Crank Installation
5. Reinstall the stairarm onto the input drive Crank Spindle:
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 203
6 Replacement Procedures
Stairarm Replacement
