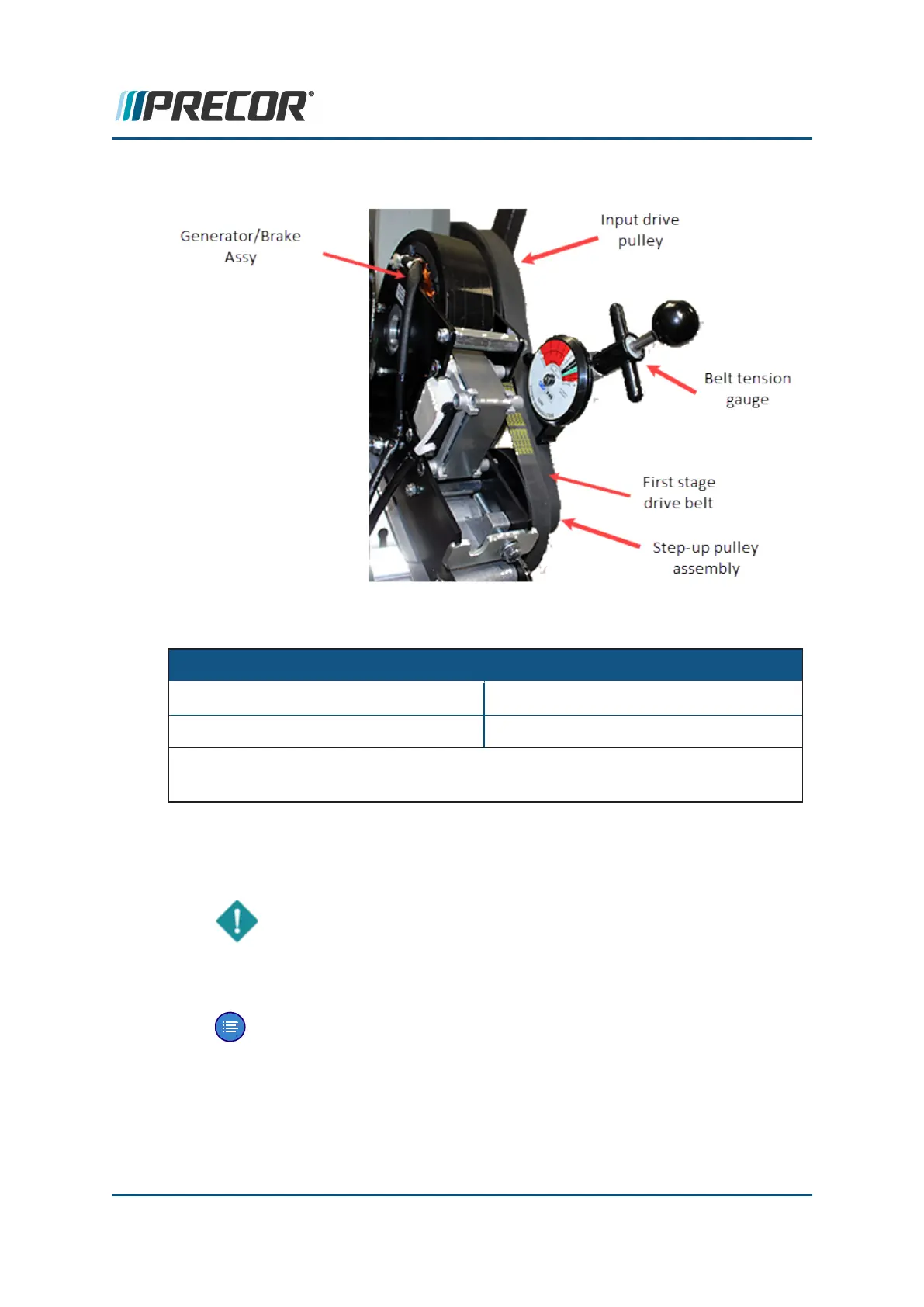

measured belt tension.
4. Compare the measured belt tension to the first stage drive belt tension specification.
System Component Specification
First Stage Belt Drive Tension - New
(1)
140-150 lbs (63.5 - 68 kgs)
First Stage Belt Drive Tension - Used
(1)
125 - 135 lbs (56.7 - 61 Kgs)
(1)New belt tension applies to new belt first time installations. Used belt tension
applies to reinstalling an existing belt or re-tensioning an existing used belt.
5. If the tension is NOT within the specified limits, do the following tension adjustment
steps to bring the tension within specification:
a. Remove the belt tension gauge.
IMPORTANT: The belt tension gauge must be removed while making ten-
sion adjustments or the measurement will be invalid.
b. Make a small incremental adjustment to the 1/2" First Stage Belt Tensioner bolt
as needed (loosen or tighten) to bring the belt tension into specification.
Note:Belt tension adjustment is an iterative process, only make small
tension changes per adjustment. Be careful to NOT over tension the
belt, which could result in damaging the belt or pulley hardware.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 54
5 Adjustment/Calibration Procedures
Dual Stage Drive Belt Tension Adjustment Procedures
