c. Then use the Crank to rotate the input pulley a couple of rotations to seat the belt
and remeasure the belt tension.
d. If the belt tension is not within specification, repeat the tension adjustment pro-
cess until the belt tension is correctly tensioned.
6. Use a 1/2" socket to tighten the two Drive Components assembly carriage bolts (left
side), torque bolts to 180 in-lbs +/- 54 (20.3 +/_ 4.5 Nm).
7. Measure and verify that the second-stage drive belt is within specification, re-tension
the belt as needed, see "Second Stage Drive Belt Tension Adjustment" on the next
page.
8. Reinstall the left and right Drive Housing Covers and any other removed covers, see
"Drive Housing Covers Replacement" on pageî88.
9. Verify machine operation and return to service.
See Also
"Second Stage Drive Belt Tension Adjustment" on the next page
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 55
5 Adjustment/Calibration Procedures

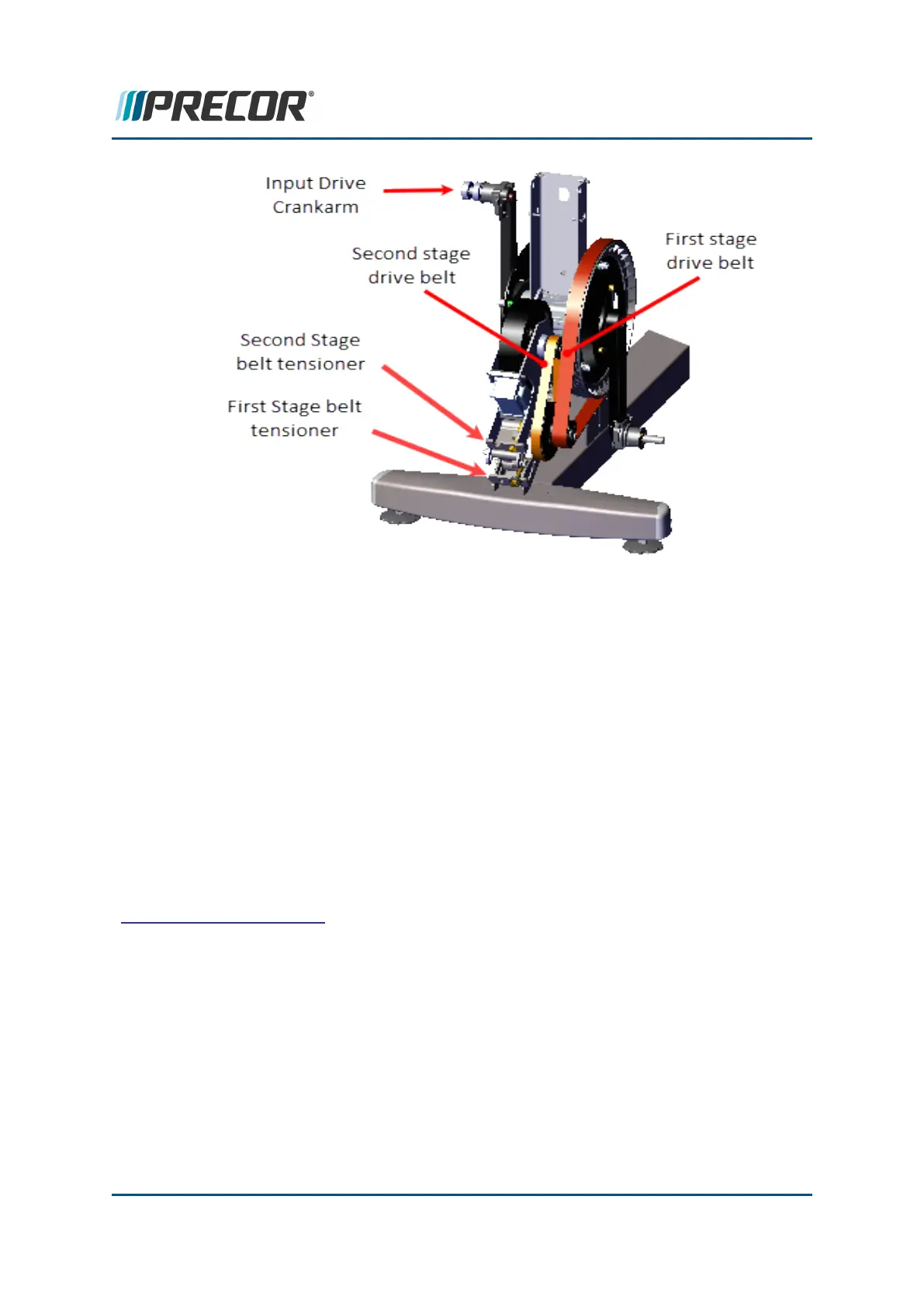

Dual Stage Drive Belt Tension Adjustment Procedures
