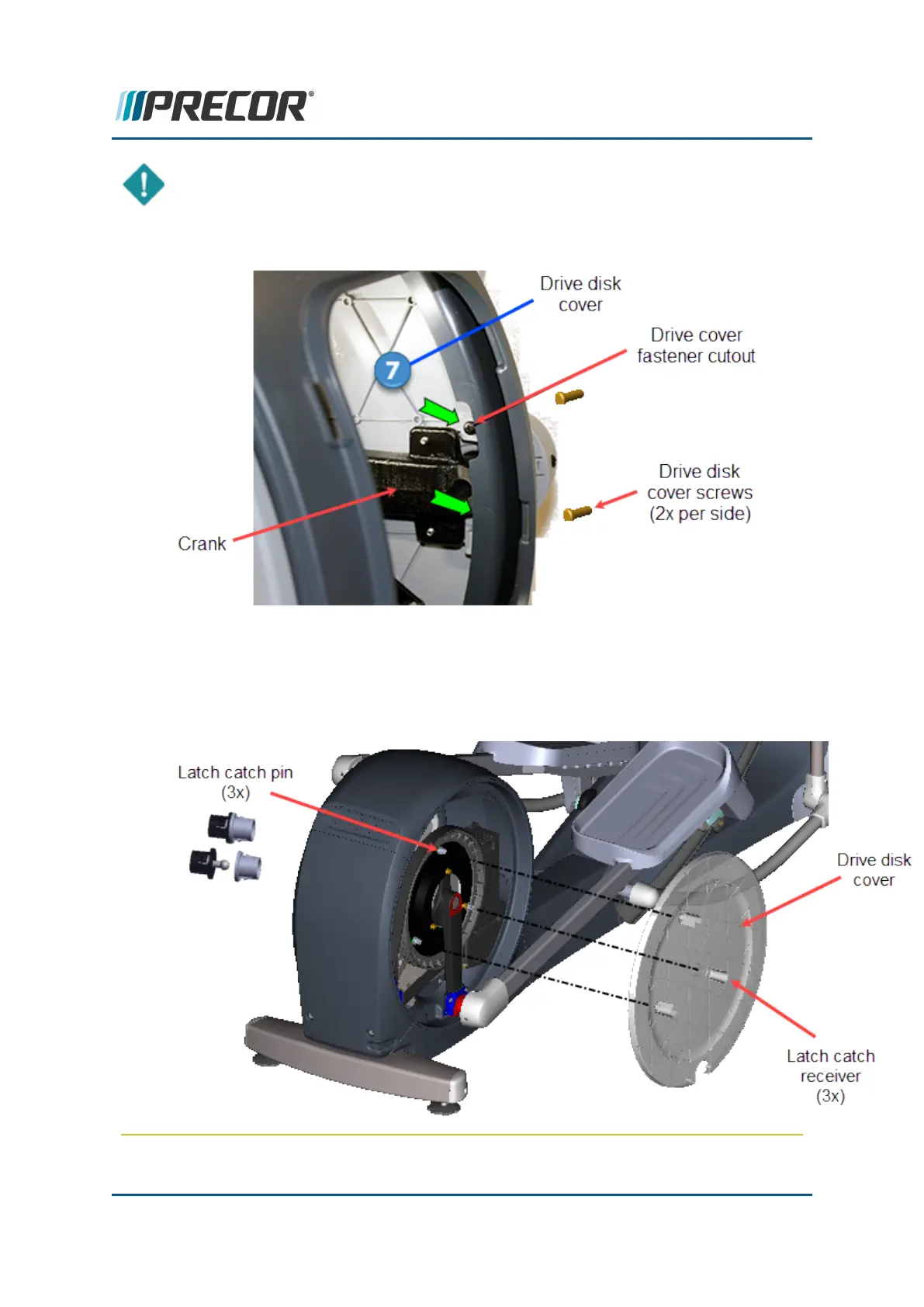

IMPORTANT: Take your time when removing the drive disk mounting screws. The
access area is small and it is very easy to accidentally drop the screws down into the
drive housing area. If this happens, the Drive Housing covers will need to be removed
to retrieve the screw.
3. Use your hand to lightly strike the inside of the drive disk to unsnap the disk from the
three latch catch pins and remove. Rotate the drive disk to position one of the three latch
catch pins at the rear of the housing and then use your hand to strike the inside of the
drive disk to unsnap the disk from the latch catch pin, Repeat for the two remaining latch
catch pins and remove the cover.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 85
6 Replacement Procedures
Covers and Panels Replacement
