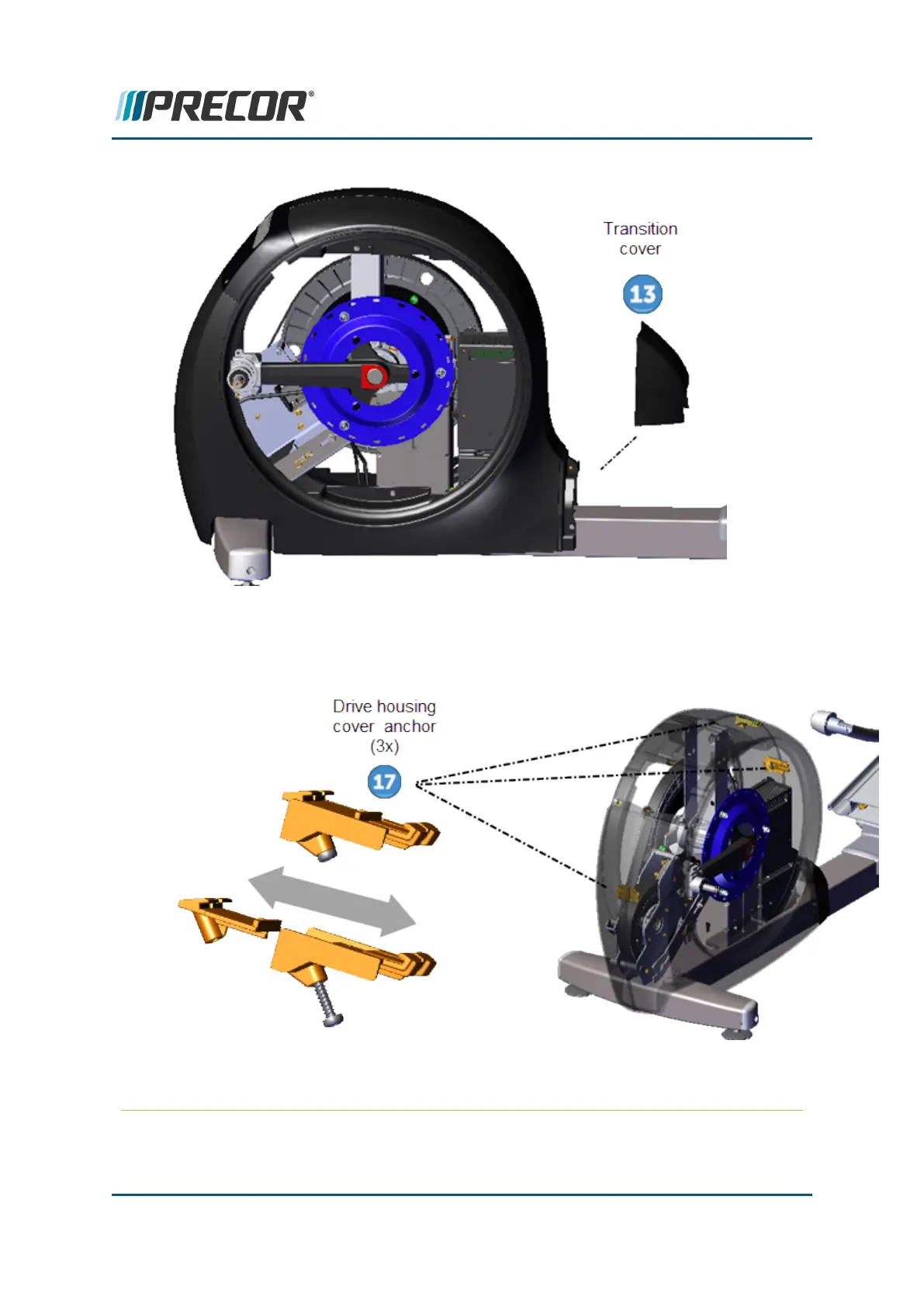

5. Remove the three drive cover anchors. Loosen, but do not remove, the #2 Phillips
screw fastener enough to slide the drive anchor assembly apart and remove from the
left/right drive cover anchor brackets.
6. Remove the three T25 Torx screws that secure the right and left drive covers together.
Remove the screws from the right side. Retain part(s) and/or fastener(s) for installation.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 90
6 Replacement Procedures
Covers and Panels Replacement
