Printronix P4280 - Page 99

5–17Replacement Procedures
1. Screw (6) (Scr, Hex, Wshr, SEMS 10–24x.50)
2. Service Panel (P/N 150538–004)
3. Ribbon Cable Restraints (P/N 107953–002 or 109822–002)
4. Latch (2) (Ref)
5. Ribbon Cable Connector (p/o item 9.)
6. Common Controller Connector J1 (Ref)
7. Screw (4) (Scr, Hex w/LW, 10–24x.38)
8. Mounting Plate (P/N 112430–001)
9. Multi I/O Cable Assembly (P/N 150310–002)
3
2
5
4
6
7
8
9
1

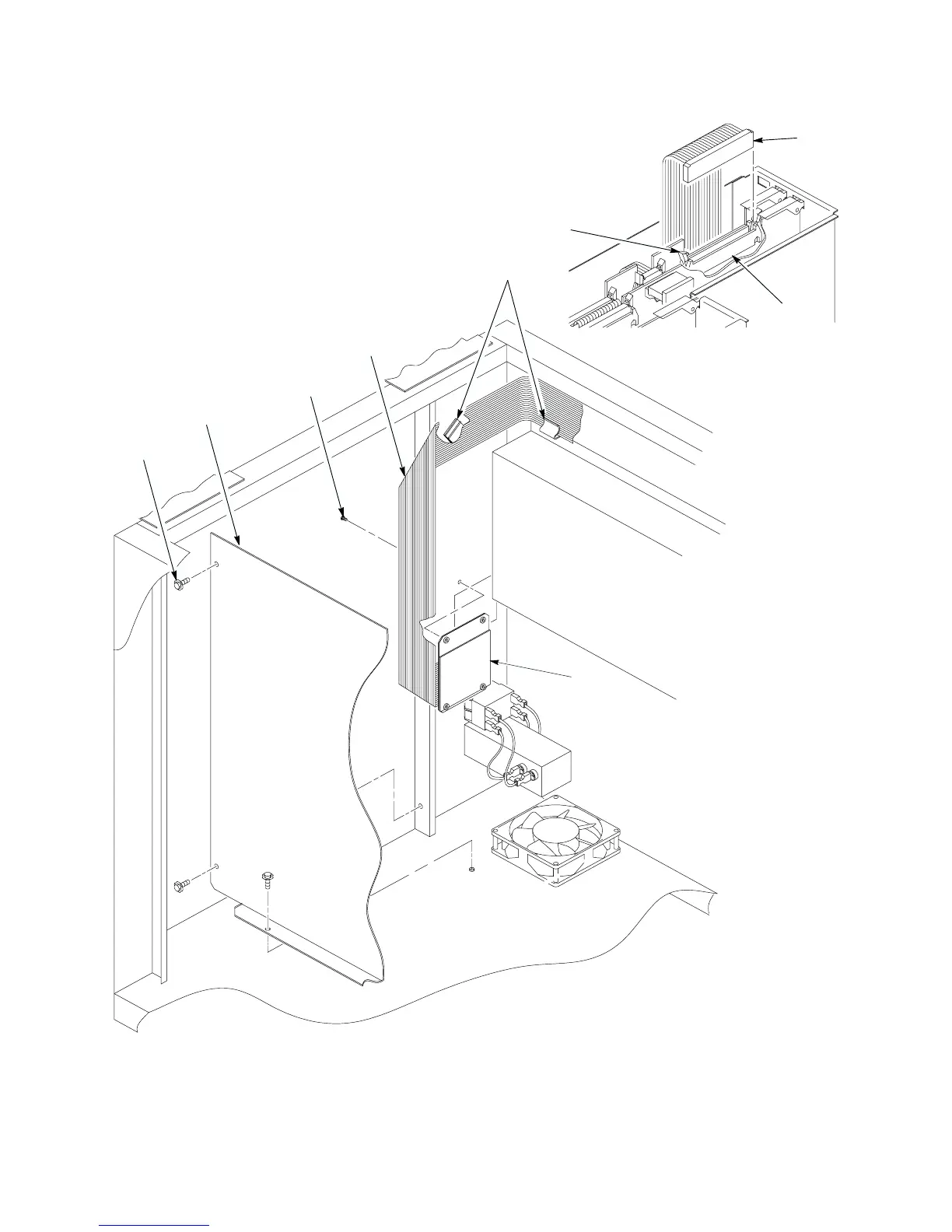

Figure 5–5 . Cable Assembly, Multi I/O, Removal/Installation
