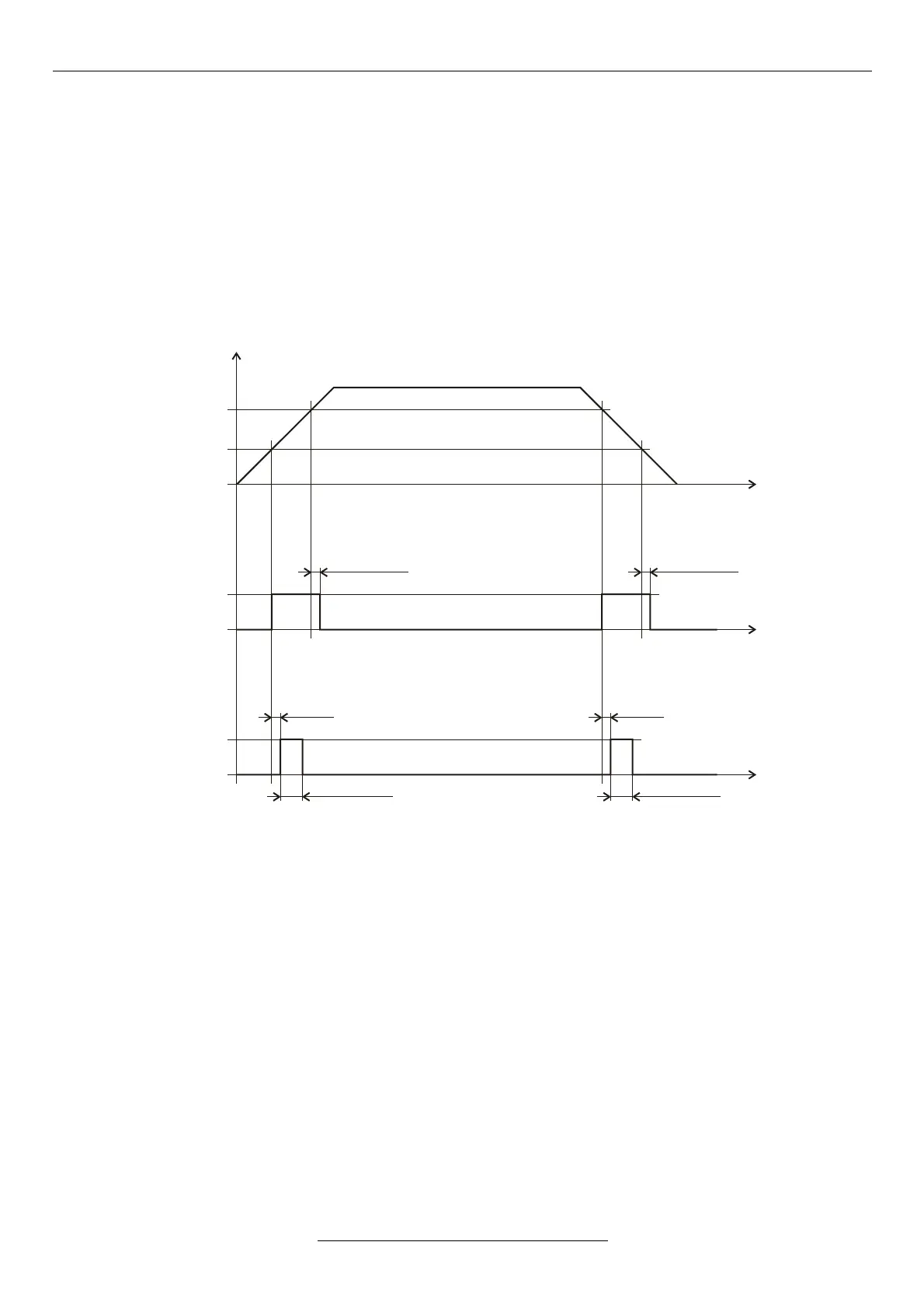

Example for the operation of the digital output, timer and comparator
These settings make it possible to have a delayed signal assigned to any value of a selected parameter, which can be
visualized at digital output, too.
Similar settings can be applied to any comparator and digital output
• comparator 1 mode: window
• comparator 1 source: frequency
(at comparator 1, value 1, value 2 and the hysteresis set according to demand).
• digital output 1 source: comparator 1
• timer 1 effects: digital output 1
(at timer 1, the time period and the delay set according to demand)
f [Hz]
t
active
value 2
value 1
active
time period
delay
hysteresis
delay
hysteresis
time period
Comparator
Relay
