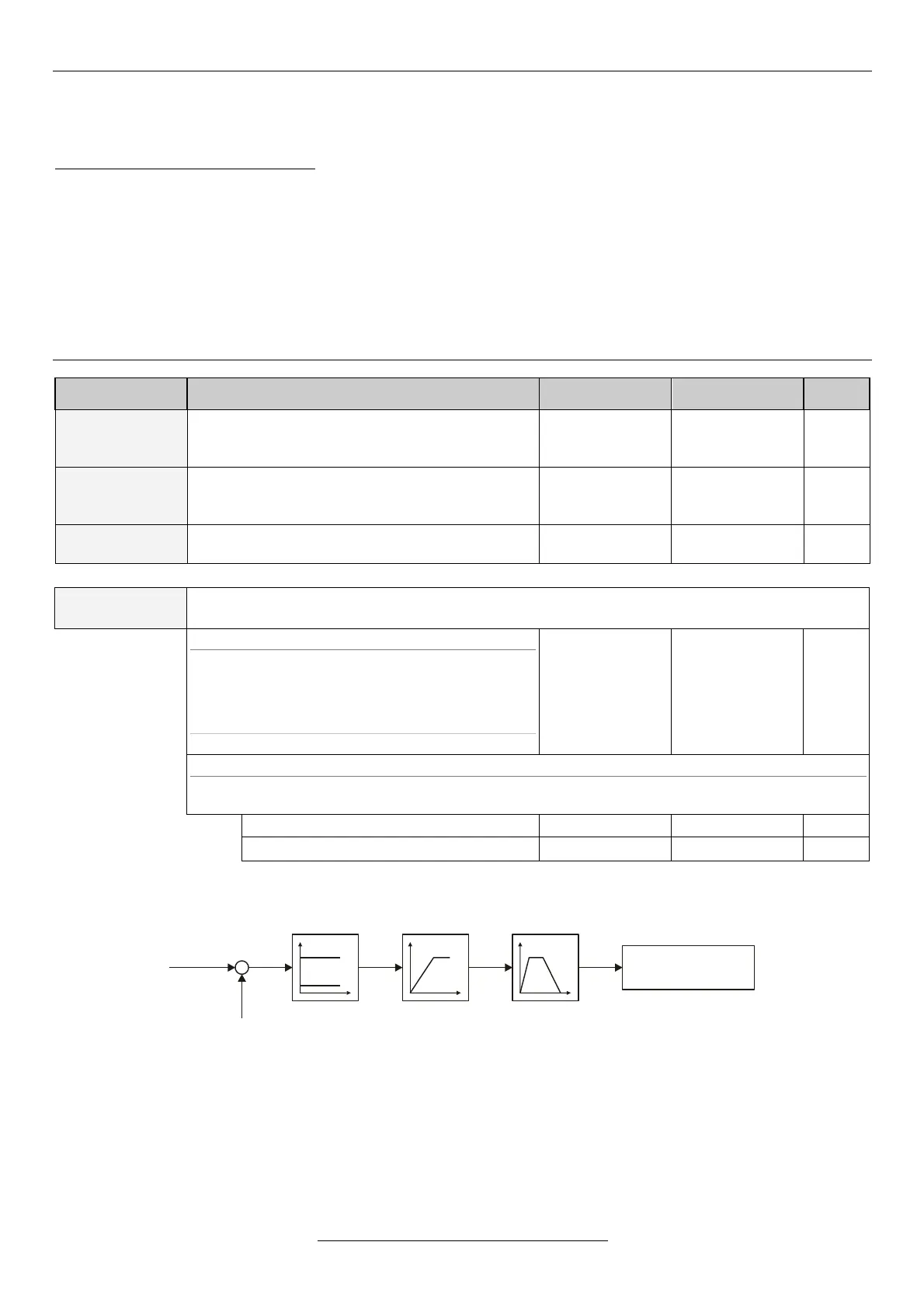

1. Operation mode menu
In this menu, the most important parameters of the operation mode of the frequency converter can be set.
Following parameters can be set here:
• terminal regulation reference signal,
• terminal control reference signal,
• operational mode selection,
• data of the regulation,
• data of the control,
• data of the control signal,
• data of the modifying signal,
• PID selection,
• PID data
Submenu
Explanation, further submenus
Values
Default setting
Unit
1-1
control
ref. signal
If the source of the reference signal is the terminal,
it means the prescribed value of the output
frequency in control mode.
0,01 - 1000,0
1,00
Hz
1-2
regulation
ref. signal
In regulation mode, the value of the regulation
reference signal if the source of the reference
signal is the terminal.
0,00 - 100,00
0,00
%
1-3
selection
Permits the selection of the operation mode.
control
regulation
control
1-5
control
Permits the settings of the parameters used with control tasks.
1-5-1 source of the control reference signal
Selects the source of the control reference signal.
(Setting the parameters of the control reference
input is made in the 4. Inputs menu!)
* IRE 2 for VLD and VHD types only
analogue IN 1-4
IRE
IRE 2 *
terminal
motor pot.
MOD bus
CAN bus
analogue IN 1.
1-5-3 control reference signal limits
If the source of the reference signal is an analogue input, these limits will come to effect, in so far
as they are within the limits of 8-1 f maximum and 8-2 f minimum.
1-5-3-1 maximum
0,01 - 1000,0
1000,0
Hz
1-5-3-2 minimum
0,01 - 1000,0
0,01
Hz
reference
signal
modification
signal
f
out
max
f U/f
up
control T
min
f
down
control T
driving /
technology
