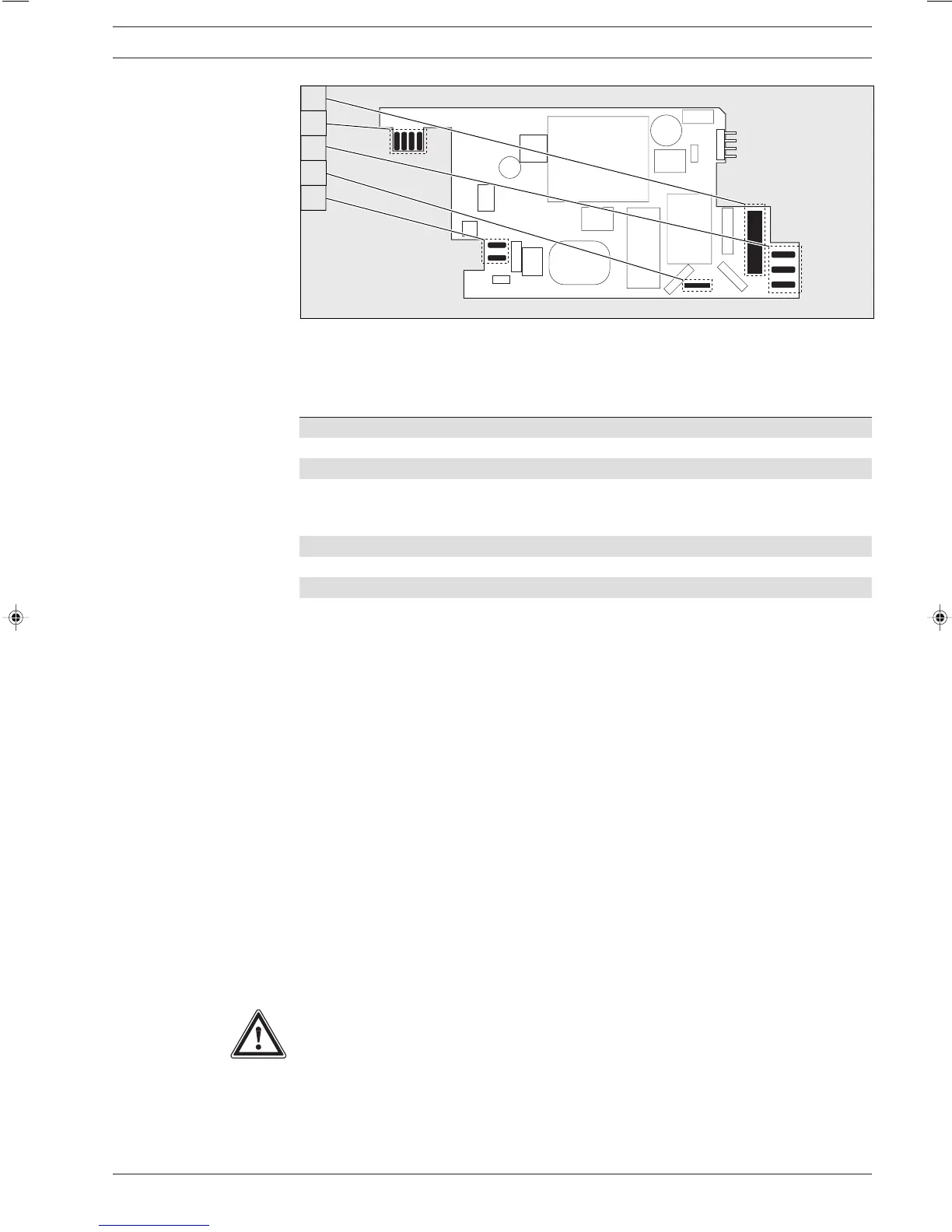

Electrical Installation
1
PE
L1
N
2
4
5
3
Fig. 06
1 Fuse
2 Optional relay connector
3 Mains connector
4 Solenoid earth lead
5 Solenoid connector
Leistungsteil
(im Pumpenfuß)
Option fault indicating relay Contact VDE-cable CSA-cable
NO white white
NC green red
Cbrown black
Option fault indicating NO (fault indicating relay) yellow –
and pacing relay
C (fault indicating relay) green –
NO (pacing relay) white –
C (pacing relay) brown –
7 Operation and Settings
7.1 Operating Components and Functions
Stroke length adjustment knob The stroke length is continuously adjustable between 0 % and 100 % via the stroke length
adjustment knob. Reproducibility is only technically practicable in the adjustment range of
between 30 % and 100 % however.
Multifunction switch The multifunction switch (1e) is used to select the operating mode and to set the stroking rate.
The following operating modes are selected using the multifunction switch:
• Stop
• External
• Manual (to set stroking rate in 10 % steps)
•Test (priming suction function)
External operating terminal The ”terminal for external operating“ is a five channel connector. It is compatible with two and
four channel signal cables used previously. The ”auxiliary frequency“ function can be used only
with the five channel cable, however.
CAUTION
• The electronic system of the pump can be destroyed if the pump is connected incorrectly!
When connecting the 5P universal control cable for external contact control, do not
connect the grey wire instead of the white one! At first, the pump functions without any
faults, however, the electronic system of the pump will be destroyed after approx.
10 million strokes!
