ProMinent
®
Page 45

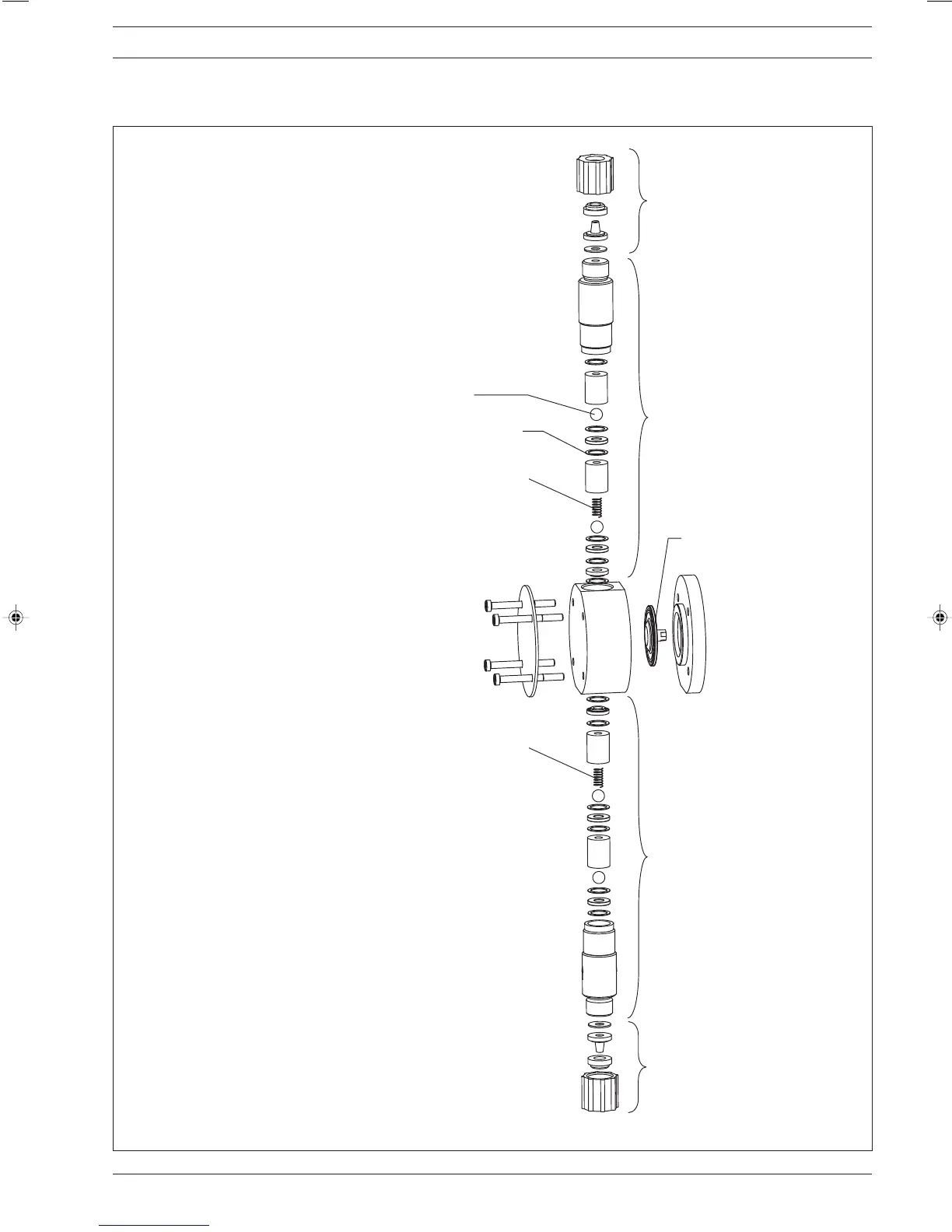

Exploded diagrams of liquid ends
Liquid end 0708 (1008) - 0220 (0420)
TT
60_07-104_00_30-04_2
Connector kit 8/5 TTT 817204
Connector kit 12/9 TTT 817202
Discharge valve set TTT 809444
Diaphragm 0708 1000248
Diaphragm 0413 1000249
Diaphragm 0220 1000250
Suction valve set TTT 809445
Connector kit
4 valve balls 404281
12 seals PTFE 483975
Spare parts kits for:
Type Material Order No.
0708 (1008) TTT 1001741
0413 (0713) TTT 1001742
0220 (0420) TTT 1001754
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
BA_BE_021_07_08_GB2.p65 17.07.2008, 14:35 Uhr45
