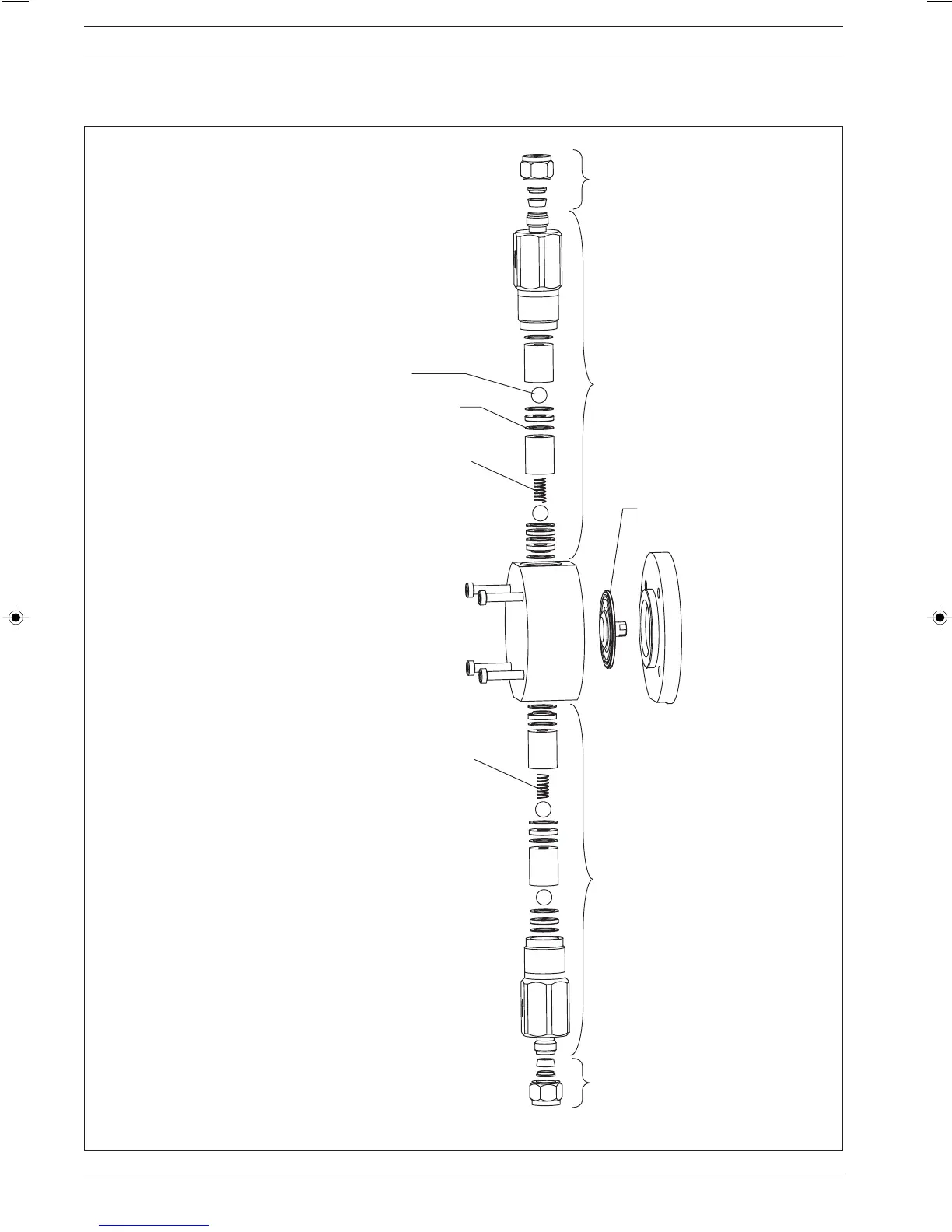

Exploded diagrams of liquid ends
Liquid end 0708 (1008) - 0220 (0420)
SS
60_07-104_00_26-04_2
Connector kit 8 mm SS 104237
Connector kit 12 mm SS 104245
Discharge valve set 8 mm SST 809494
Discharge valve set 12 mm SST 809446
Diaphragm 0708 1000248
Diaphragm 0413 1000249
Diaphragm 0220 1000250
Suction valve set 8 mm SST 809495
Suction valve set 12 mm SST 809447
Connector kit
4 valve balls 404281
12 seals PTFE 483975
Spare parts kits for:
Type Material Order No.
0708 (1008) SST 1001733
0413 (0713) SST 1001734
0220 (0420) SST 1001735
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
