ProMinent
®
Page 32

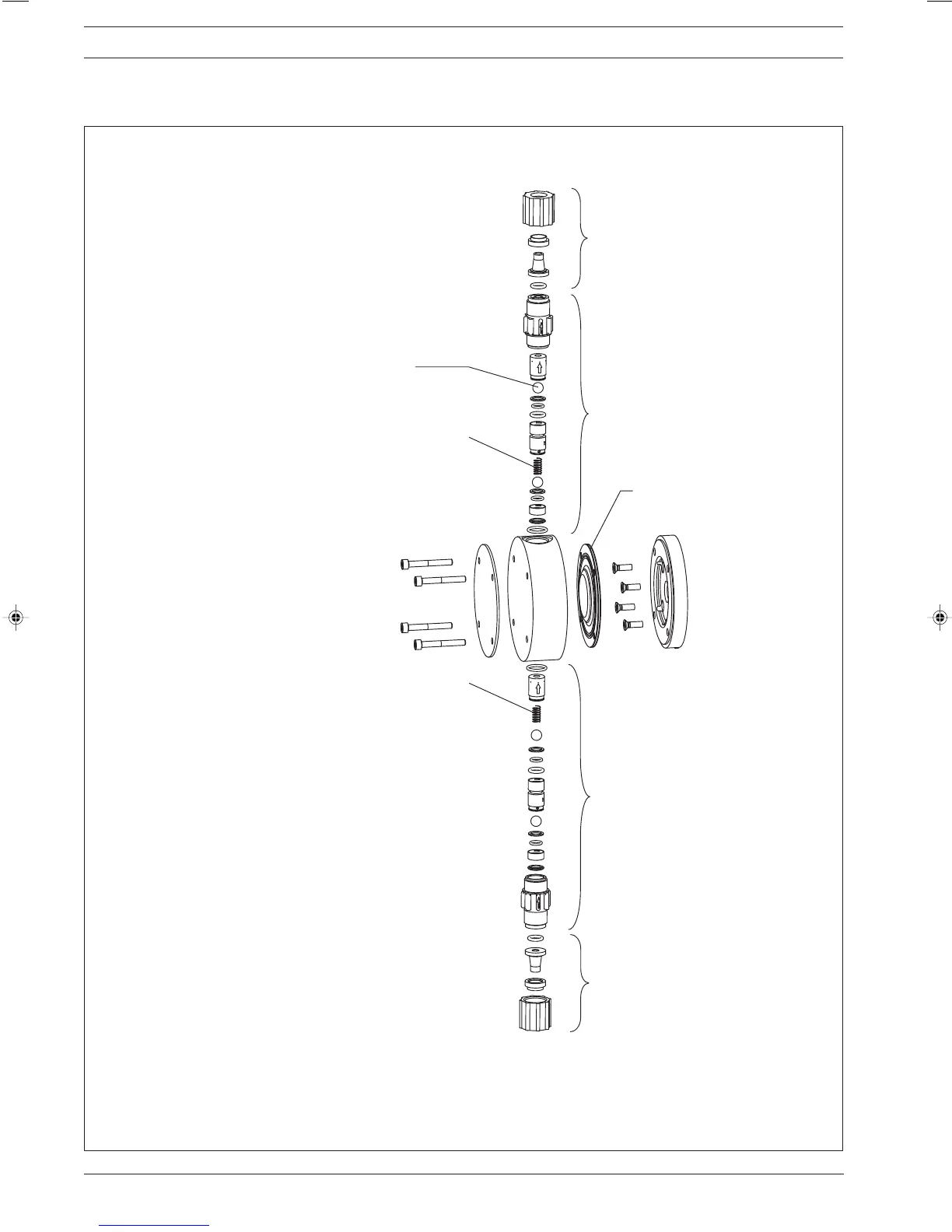

Exploded diagrams of liquid ends
Liquid end 0232
PP without coarse/fine bleed
*
*
60_07-104_00_40-04_2
Connector kit 12/9 PPE 817151
Connector kit 12/9 PPB 817168
Discharge valve set PPE 1001441
Discharge valve set PPB 1001440
Diaphragm 0232 1000251
Suction valve set PPE 1001437
Suction valve set PPB 1001436
Connector kit
Spare parts kits for:
Type Material Order No.
0232 PPE 1001651
0232 PPB 1001659
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
4 valve balls 404281
1 seal set EPDM 1001776
1 seal set FPM 1001774
