ProMinent
®
Page 47

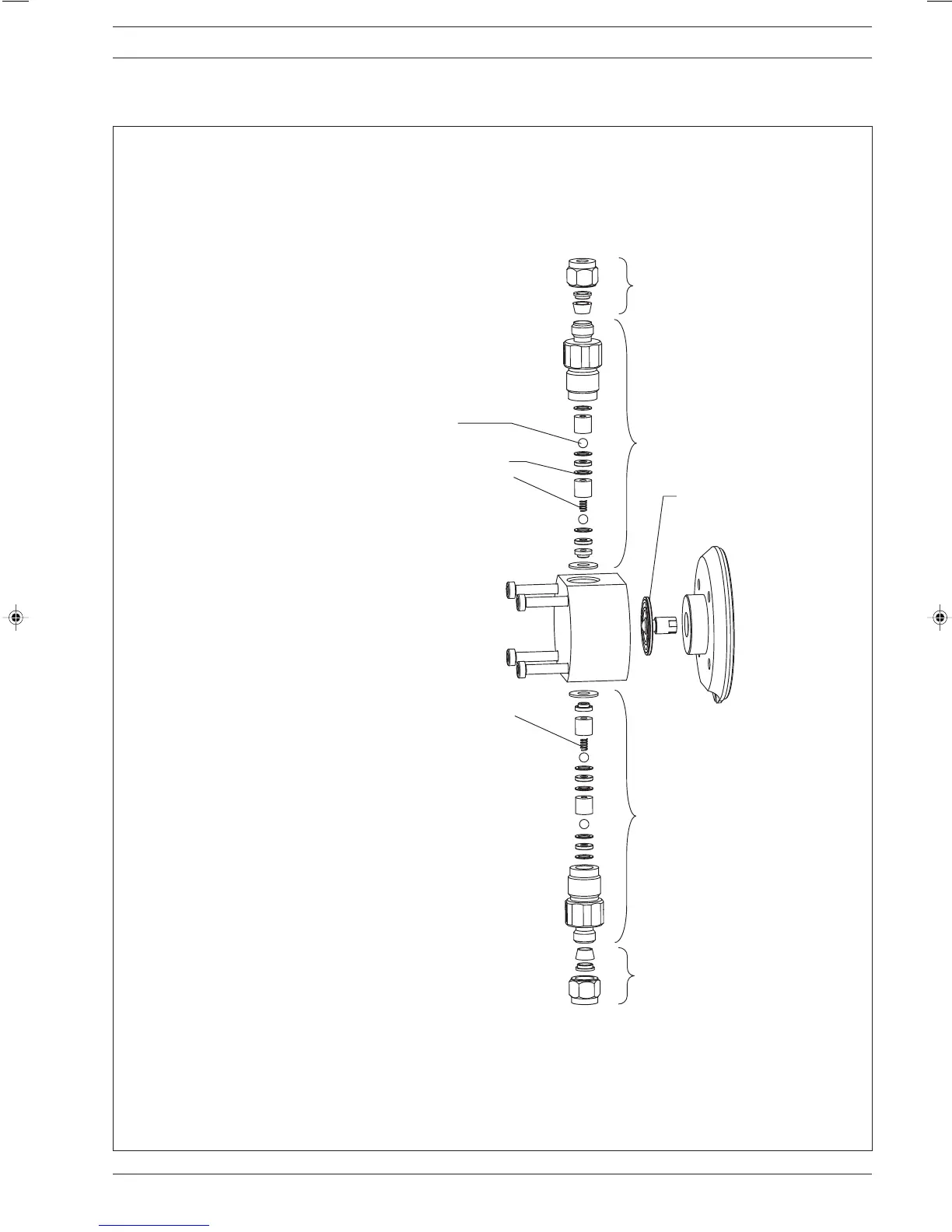

Exploded diagrams of liquid ends
Liquid end 1000 - 1005 (1605)
SS
60_07-104_00_25-04_2
Connector kit 6 mm SS 104233
Discharge valve set 6 mm SST 809418
Diaphragm 1000 1000244
Diaphragm 1601 1000245
Diaphragm 1602 1000246
Diaphragm 1005 1000247
Suction valve set 6 mm SST 809419
Connector kit
4 valve balls 404201
12 seals PTFE 483907
Spare parts kits for:
Type Material Order No.
1000 SST 1001729
1601 SST 1001730
1602 SST 1001731
1005 (1605) SST 1001732
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
BA_BE_021_07_08_GB2.p65 17.07.2008, 14:35 Uhr47
