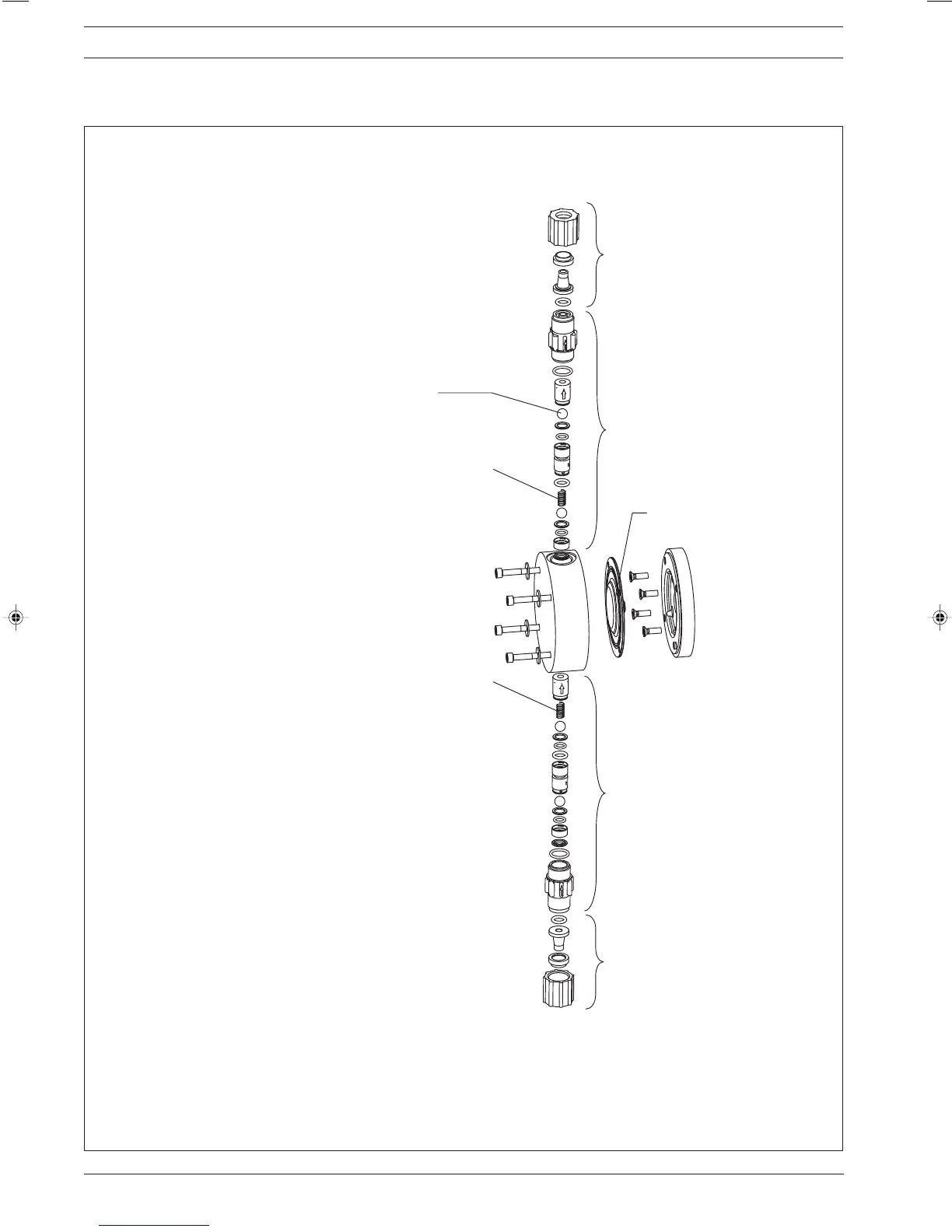

Exploded diagrams of liquid ends
Liquid end 0232
NP without coarse/fine bleed
60_07-104_00_20-04_2
Connector kit 12/9 PCE 817049
Connector kit 12/9 PCB 817051
Discharge valve set PCE 1001439
Discharge valve set PCB 1001438
Diaphragm 0232 1000251
Connector kit
Suction valve set PCE 1001435
Suction valve set PCB 1001434
Spare parts kits for:
Type Material Order No.
0232 NPE 1001719
0232 NPB 1001728
4 valve balls 404281
1 seal set EPDM 1001776
1 seal set FPM 1001774
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
