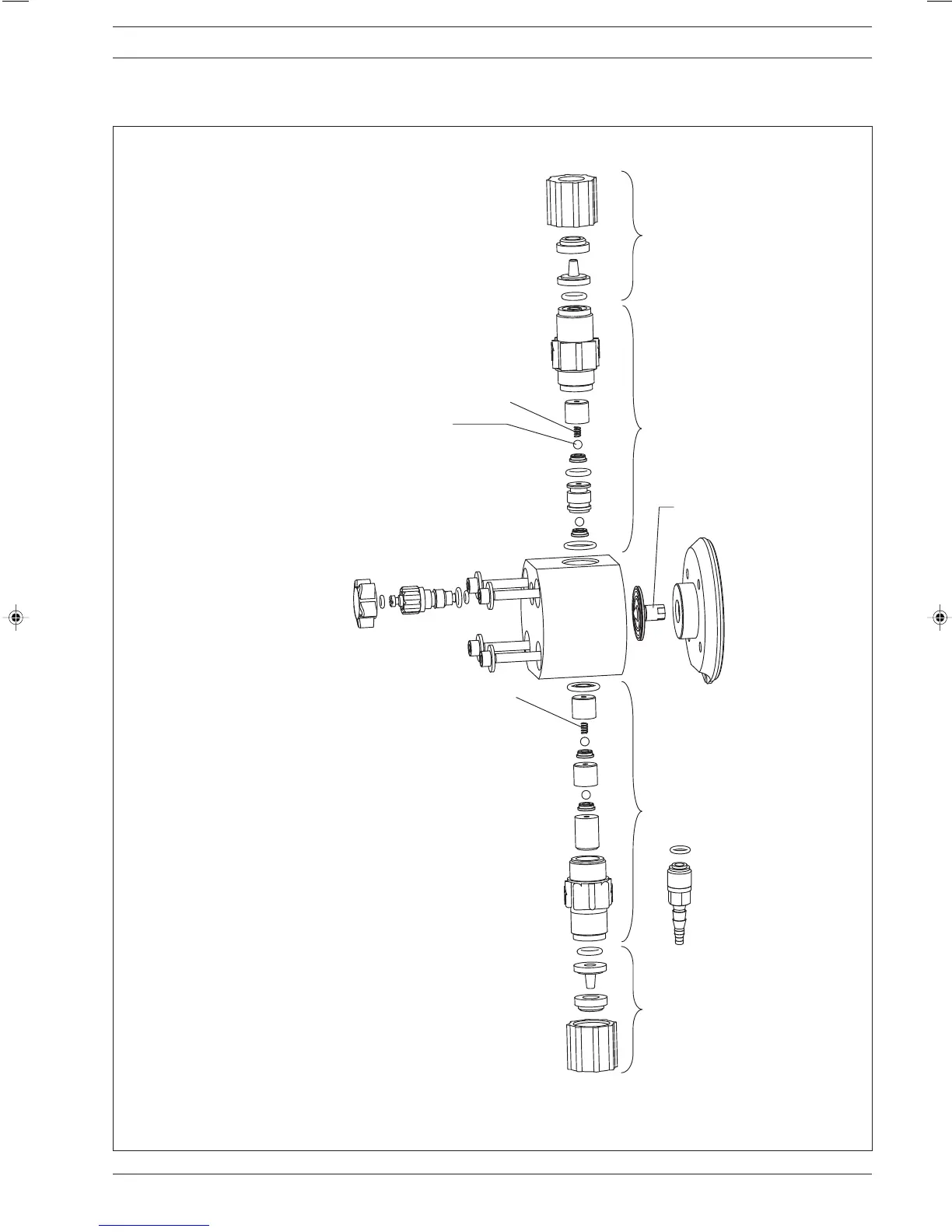

Exploded diagrams of liquid ends
Liquid end 1000 - 1005 (1605)
NP with coarse/fine bleed
*
*
60_07-104_00_23-04_2
Connector kit 6/4 PCE 817060
Connector kit 8/5 PCE 817048
Connector kit 6/4 PCB 817050
Connector kit 8/5 PCB 817053
Discharge valve set PCE 740349
Discharge valve set PCB 740348
Diaphragm 1000 1000244
Diaphragm 1601 1000245
Diaphragm 1602 1000246
Diaphragm 1005 1000247
Suction valve set PCE 792119
Suction valve set PCB 792026
Connector kit
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
Spare parts kits for:
Type Material Order No.
1000 NPE 1001713
1601 NPE 1001714
1602 NPE 1001715
1005 (1605) NPE 1001716
1000 NPB 1001721
1601 NPB 1001722
1602 NPB 1001723
1005 (1605) NPB 1001724
4 valve balls 404201
1 seal set EPDM 1001775
1 seal set FPM 1001773
