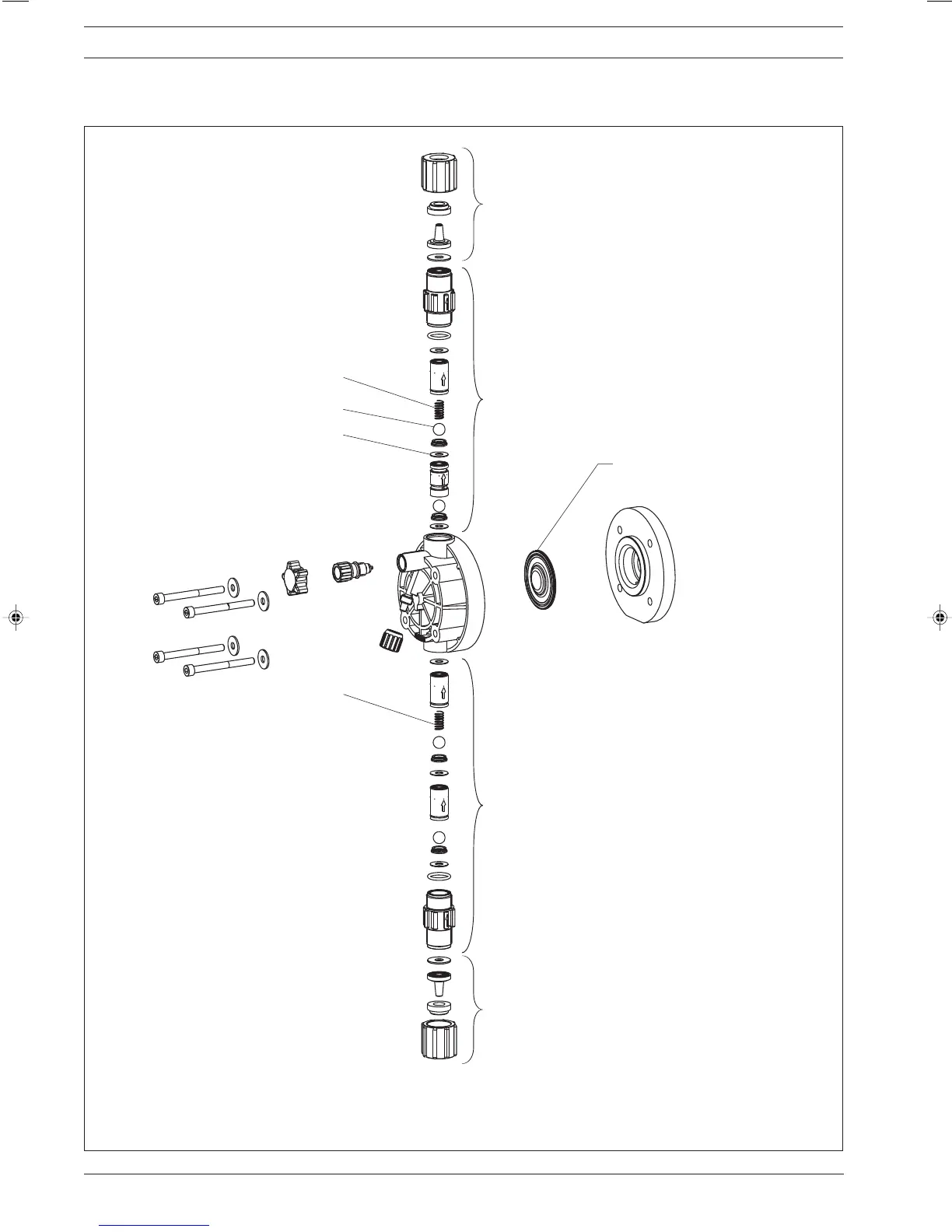

Exploded diagrams of liquid ends
Liquid end 0708 (1008) – 0220 (0420)
PVT with degassing
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
Diaphragm 0708/1008 1000248
Membran 0413/0713 1000249
Membran 0220/0420 1000250
Connector kit 18/5 PVT 1023247
Connector kit 12/9 PVT 1023248
Discharge valve set 9.2-2 PVT 1023125
Suction valve set 9.2-2 PVT 1023126
Connector kit
1 Seal set 9.2-2 PVT 1023129
4 Valve balls 9.2 404281
*
*
