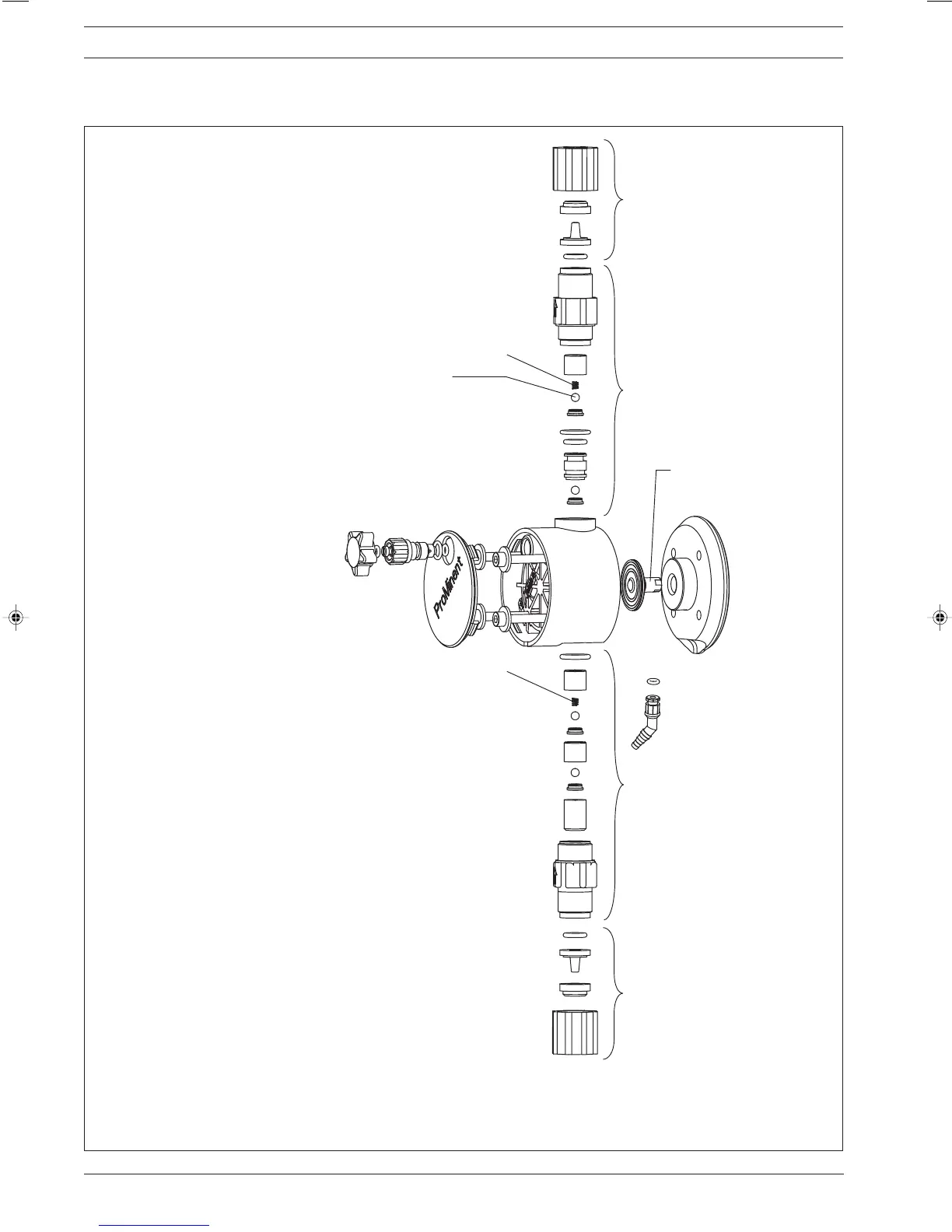

Exploded diagrams of liquid ends
Liquid end 1000 - 1005 (1605)
PP with coarse/fine bleed
*
*
60_07-104_00_18-04_2
Connector kit 6/4 PPE 817150
Connector kit 8/5 PPE 817153
Connector kit 6/4 PPB 817166
Connector kit 8/5 PPB 817167
Discharge valve set PPE 740350
Discharge valve set PPB 740351
Diaphragm 1000 1000244
Diaphragm 1601 1000245
Diaphragm 1602 1000246
Diaphragm 1005 1000247
Suction valve set PPE 792644
Suction valve set PPB 792646
Connector kit
4 valve balls 404201
1 seal set EPDM 1001775
1 seal set FPM 1001773
Spare parts kits for:
Type Material Order No.
1000 PPE 1001644
1601 PPE 1001645
1602 PPE 1001646
1005 (1605) PPE 1001647
1000 PPB 1001652
1601 PPB 1001653
1602 PPB 1001654
1005 (1605) PPB 1001655
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
