ProMinent Beta BT4a - Liquid End 0708 (1008) - 0220 (0420) - NP with Coarse;Fine Bleed

ProMinent
®
Page 34

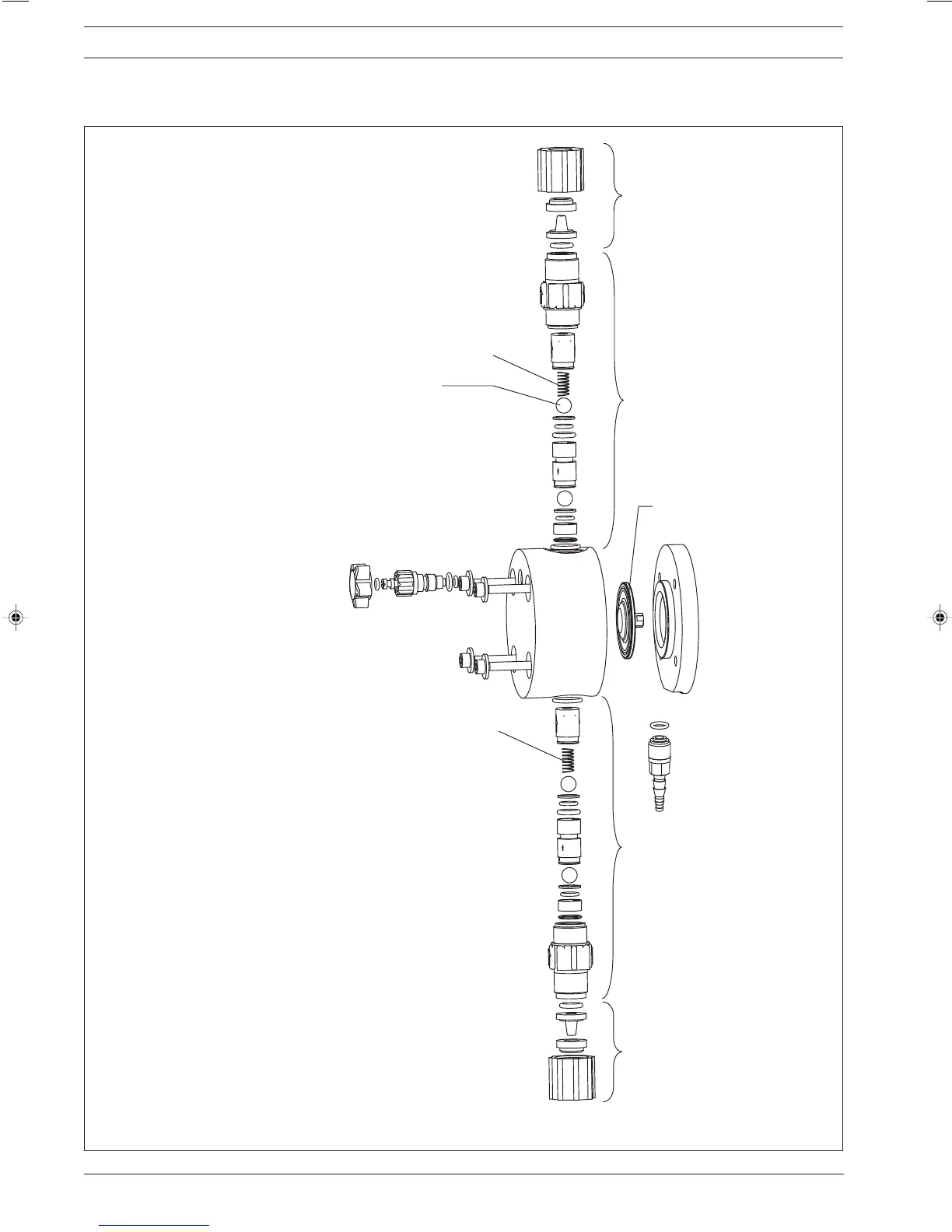

Exploded diagrams of liquid ends
Liquid end 0708 (1008) - 0220 (0420)
NP with coarse/fine bleed
*
*
60_07-104_00_24-04_2
Connector kit 8/5 PCE 817048
Connector kit 12/9 PCE 817049
Connector kit 8/5 PCB 817053
Connector kit 12/9 PCB 817051
Discharge valve set PCE 1001439
Discharge valve set PCB 1001438
Diaphragm 0708 1000248
Diaphragm 0413 1000249
Diaphragm 0220 1000250
Suction valve set PCE 1001435
Suction valve set PCB 1001434
Connector kit
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
Spare parts kits for:
Type Material Order No.
0708 (1008) NPE 1001716
0413 (0713) NPE 1001717
0220 (0420) NPE 1001718
0708 (1008) NPB 1001725
0413 (0713) NPB 1001726
0220 (0420) NPB 1001727
4 valve balls 404281
1 seal set EPDM 1001776
1 seal set FPM 1001774
