ProMinent Beta BT4a - Liquid End 1000 - 1005 (1605) ТТ

ProMinent
®
Page 44

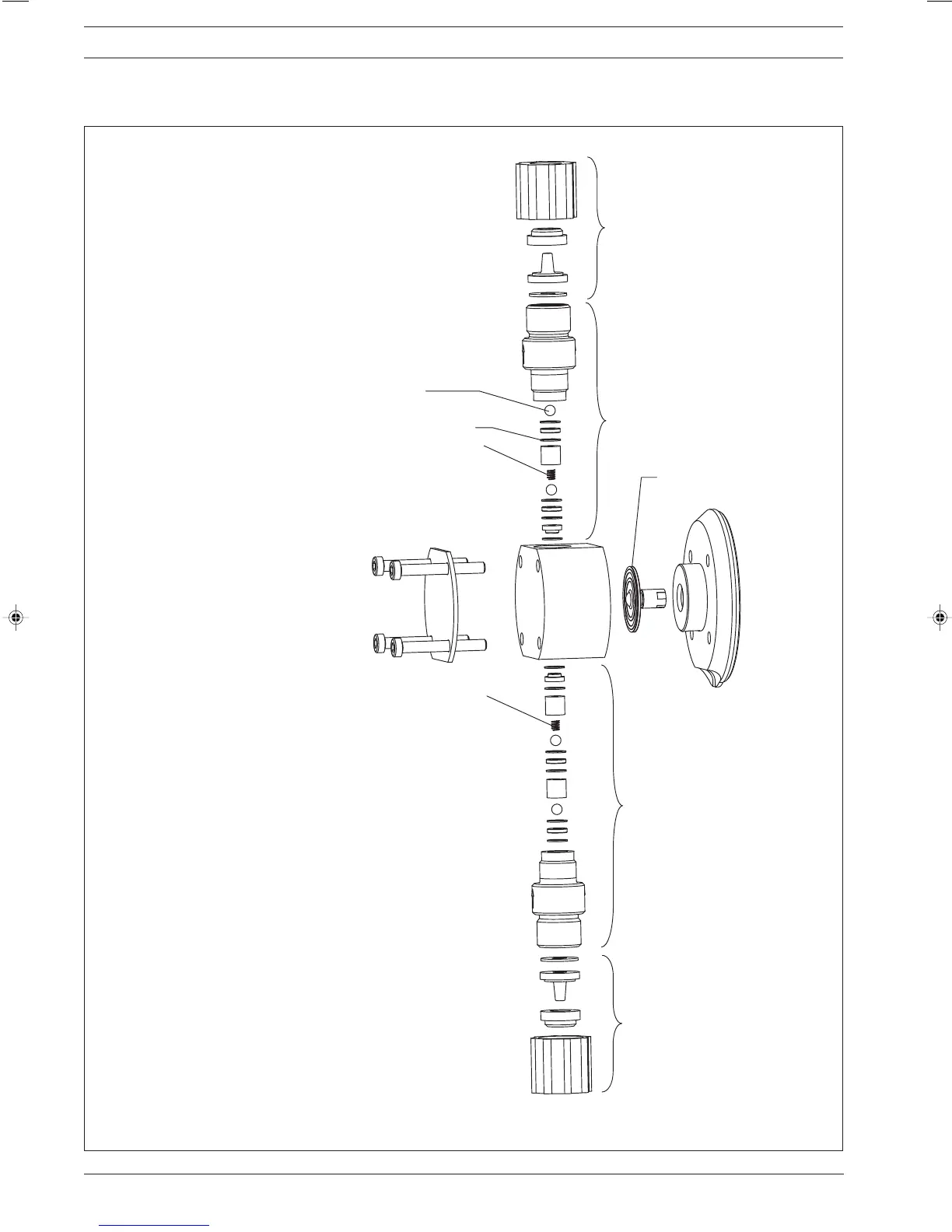

Exploded diagrams of liquid ends
Liquid end 1000 - 1005 (1605)
TT
*
*
60_07-104_00_29-04_2
Connector kit 6/4 TTT 817201
Connector kit 8/5 TTT 817204
Discharge valve set TTT 809406
Diaphragm 1000 1000244
Diaphragm 1601 1000245
Diaphragm 1602 1000246
Diaphragm 1005 1000247
Suction valve set TTT 809407
Connector kit
Spare parts kits for:
Type Material Order No.
1000 TTT 1001737
1601 TTT 1001738
1602 TTT 1001739
1005 (1605) TTT 1001740
4 valve balls 404201
11 seals PTFE 483907
The listed items are included in the spare parts kit.
* Customer accessories
Subject to technical alterations.
