ProMinent DULCOMETER Compact - Page 37

Wiring diagram
Assignment variations
Assignment variations
External
Open/Closed
Potential-free contact required!
Mains voltage
Mains voltage
Mains voltage
Mains voltage
Conductivity sensor, conductive
Temperature sensor
Conductivity sensor, conductive, with Pt100/Pt1000
"Pause" digital input
Standard signal output 1,
0/4...20 mA (recorder, actuator)
Raise/lower external pump
Raise/lower solenoid valve
Limit value relay, timer, actuator 1
Relay (alarm)
Red
Red
Blue
Black
Blue
Black
Yellow/Green
Brown
A1613

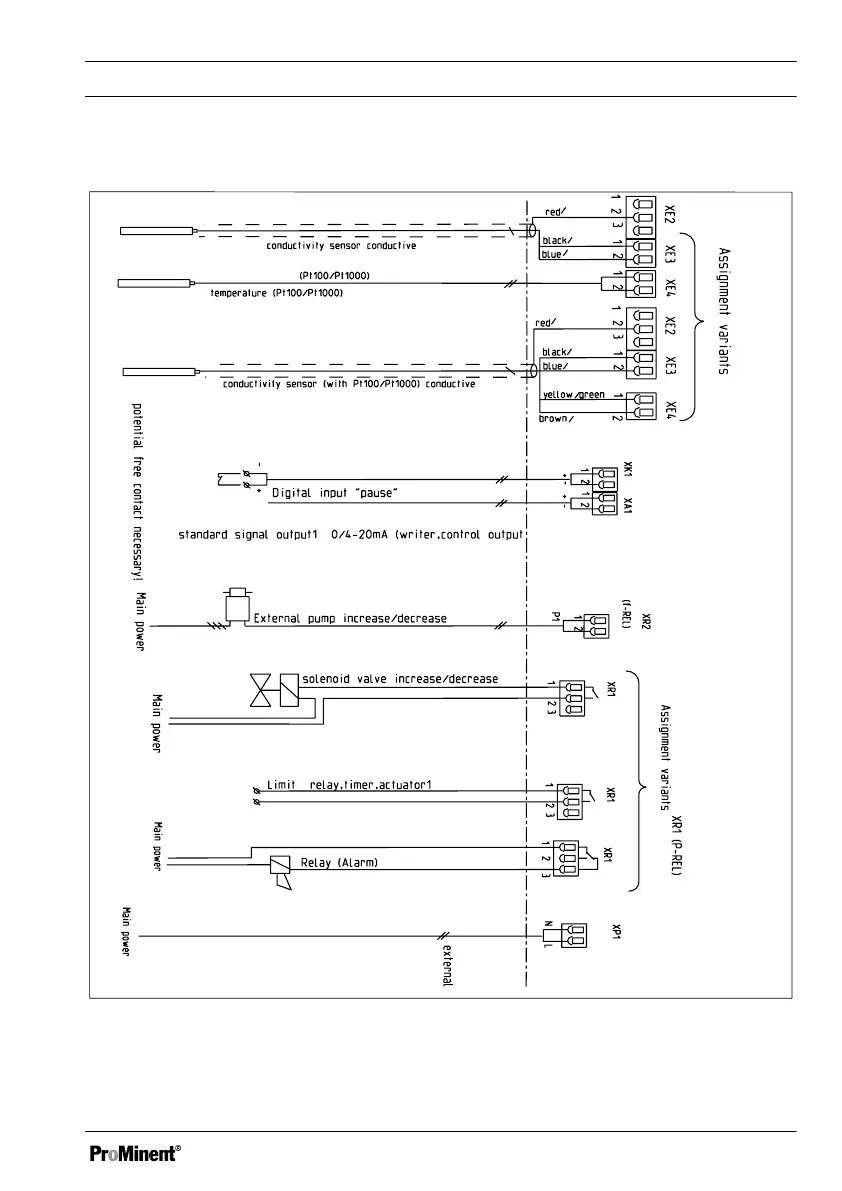

Fig. 13: Wiring diagram
Assembly and installation
37
