P_SI_0024

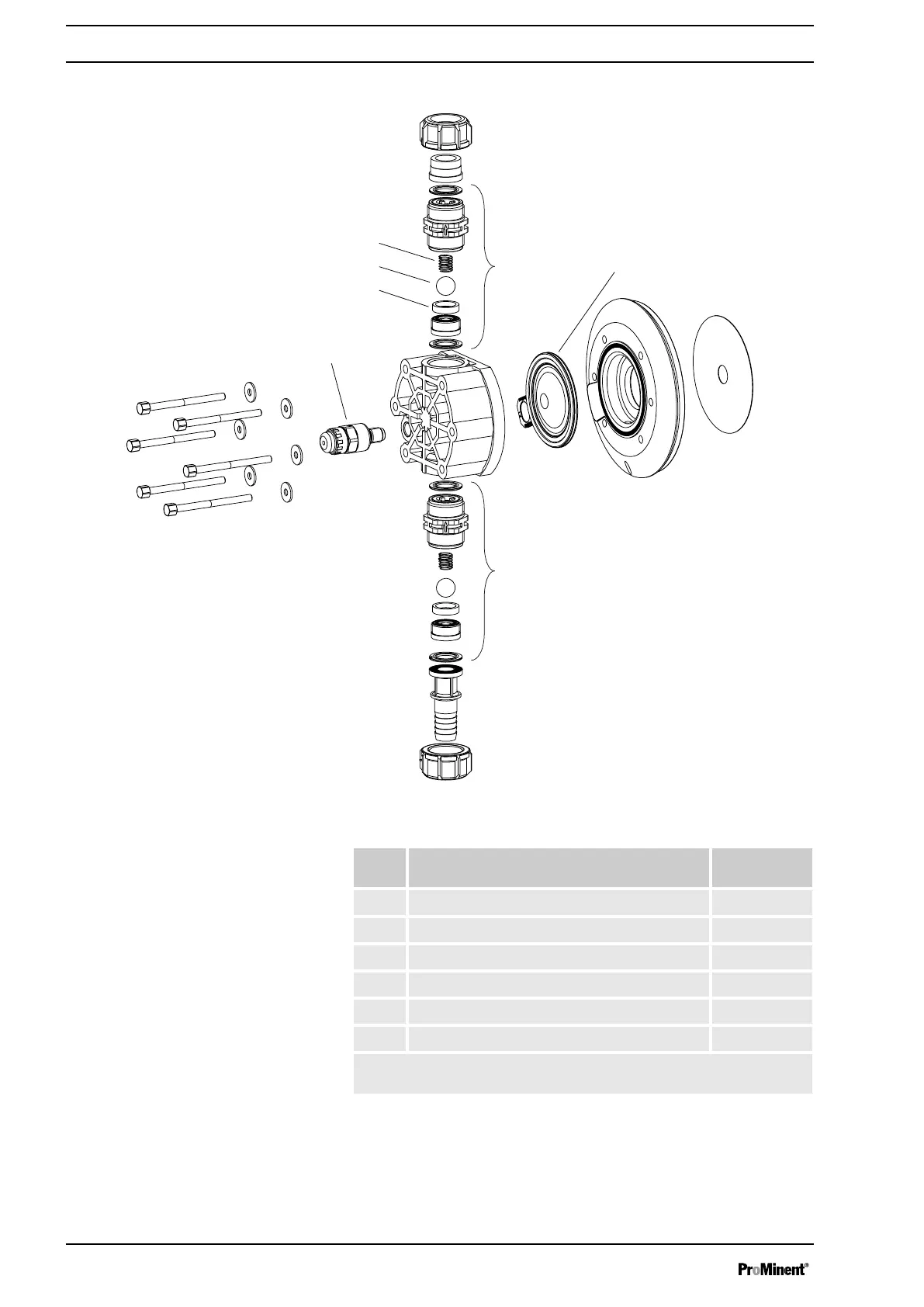

Fig. 39: Liquid end Sigma/ 1 120 PVT

Item Description Type 04084,

04120, 07042

1 Spring **

2 Ball *

3 Ball seat *

4 Diaphragm rupture sensor, visual 1033323

5 Valve 792517*

6 Multi-layer diaphragm 1035828*

* The items listed are included in the spare parts kit. ** Special accesso‐

ries (not included in the spare parts kit). Technical changes reserved.

Liquid end Sigma/ 1 120 PVT

Exploded view drawings

Table of Contents4
Identity Code6
Safety Chapter9
Storage, Transport and Unpacking13
Overview of Equipment and Control Elements15
Key Functions17
LCD Screen Identifiers17
Functional Description20
Drive Unit20
Liquid End21
Integral Bleed Valve22
Multi-Layer Safety Diaphragm23
Operating Modes24
Functions24
Options25
Function and Fault Indicator26
LCD Screen26
LED Displays26
Hierarchy of Operating Modes, Functions and Fault Statuses26
Assembly28
Installation31
Installation, Hydraulic31
Installation, Electrical34
Control Connectors35
HMI Operating Unit41
Pump, Power Supply42
Other Units43
Set-Up44
Basic Principles of Control Adjustment44
Checking Adjustable Values / Error Messages44
Changing to Adjustment Mode45
Selecting the Operating Mode (Menu "Mode")46
Operating Mode Settings (Menu "Settings")46
Manual" Operating Mode Settings47
Batch" Mode Settings47
Contact" Operating Mode Settings48
Analog" Operating Mode Settings51
Programmable Function Settings ("Settings" Menu )54
Settings for the "Auxiliary Frequency" Function (aux Menu)54
Settings for the "Calibrate" Function (CALIBRATE Menu)55
Settings for the "Metering" Function (DOSING Menu)56
Settings for the "Dosing Monitor" Function (DOSING MONITOR Menu)57
Settings for the "Relay" Function (RELAY Menu)57
Settings for the "Analog Output" Function (ANALOG OUTPUT Menu)59
Settings for the "Diaphragm Break" Function (DIAPHRAGM BREAK Menu)59
Settings in the "System" Menu" (SYSTEM Menu)60
Service (SERVICE Menu)60
Clear Counters (CLEAR COUNTERS Menu)60
Adjusting the Display (DISPLAY Menu)61
HMI Logout61
Security (SECURITY Menu)62
Information about the Pump (INFORMATION Menu)63
Set Language (LANGUAGE Menu)63
Operation64
Manual64
Remote Operation66
Maintenance67
Repairs69
Cleaning Valves69
Replacing the Metering Diaphragm71
Troubleshooting75
Faults Without a Fault Alert75
Fault Alerts75
Warning Alerts76
All Other Faults77
Decommissioning78
Technical Data80
Performance Data80
Viscosity81
Shipping Weight81
Wetted Materials81
Ambient Conditions81
Ambient Temperatures81
Media Temperatures82
Air Humidity82
Enclosure Rating and Safety Requirements82
Electrical Connection82
Diaphragm Rupture Sensor83
Relay83
Sound Pressure Level83
Motor Data Sheets84
Dimension Sheets85
Exploded View Drawings87
Exploded Drawings Sigma/ 187
Ordering Information93
Diagrams for Adjusting the Capacity94
EC Declaration of Conformity95
Operating / Adjustment Overview96
Continuous Displays97
Index99
