ProMinent S1Cb User Manual

Extended
Curve type
Curve points
Analog error
End
Main menu
Mode
Settings
Service
Information
Language
Settings
Analog
Auxiliary freq.
Calibrate
Dosing
Relay
Analog
Standard
Extended
End
Analog error
Off
On
Continuous
display

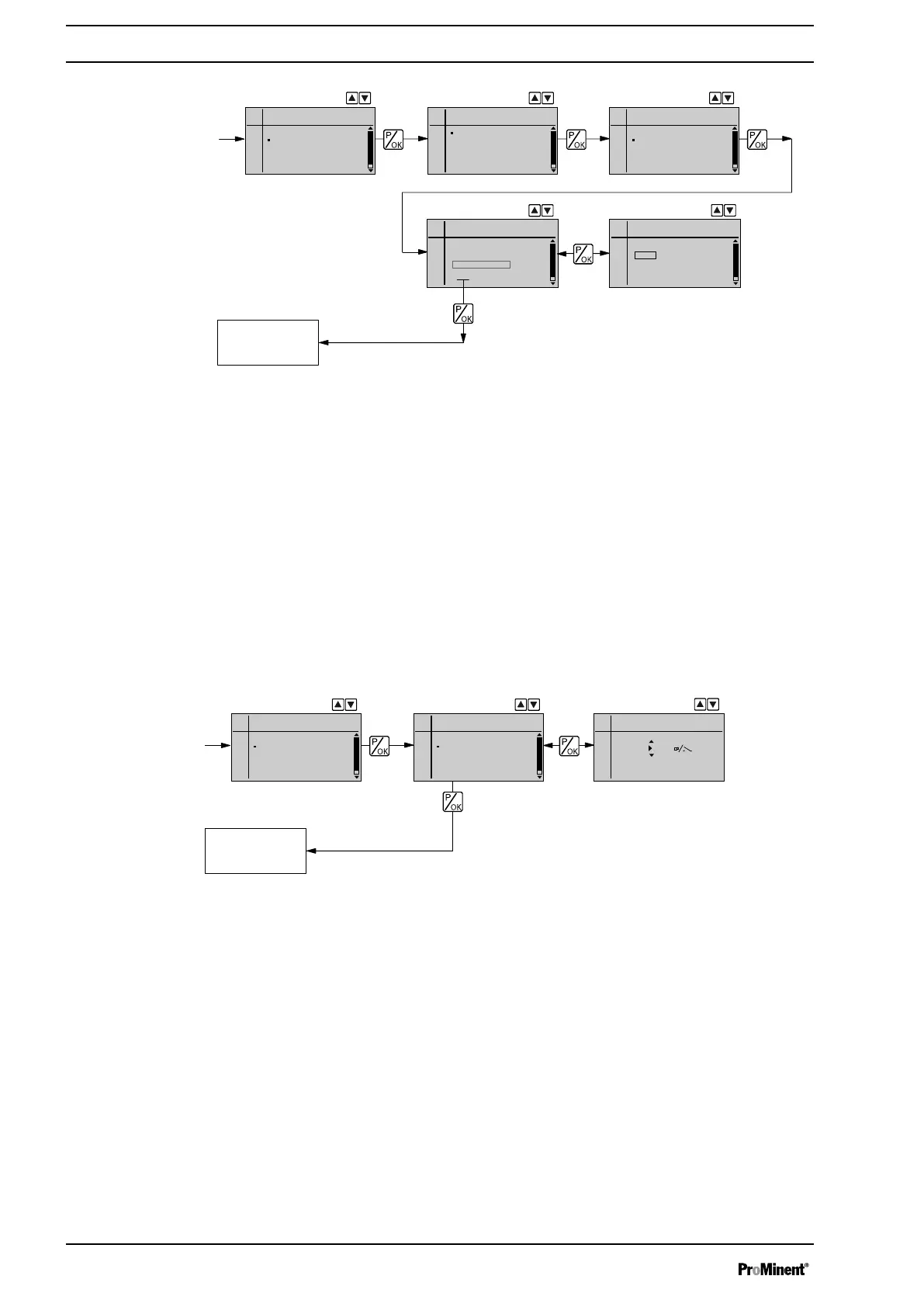

8.6 Programmable function settings ("Settings" menu )
Setting menus are available in all operating modes in the menu "SET‐
TINGS" for the following programmable functions:
n Auxiliary frequency (menu
‘AUX’ )
n Flow (menu
‘FLOW’ ) (only available if a dosing monitor is connected)
n Calibrate (menu
‘CALIBRATE’ )
n Metering (menu
‘METERING’ )
n Relay (menu
‘RELAY’ ) (only available if a relay is fitted)
n System (menu
‘SYSTEM’ )
8.6.1 Settings for the “Auxiliary frequency” function (AUX menu)
Continuous
display
Main menu
Mode
Settings
Service
Information
Language
Settings
Batch
Auxiliary freq.
Calibrate
Dosing
Relay
Auxiliary freq.
0 70
The programmable function
‘Auxiliary frequency’ facilitates the switchover
to an auxiliary stroke rate, which can be set in the
‘Auxiliary freq.’ menu. It
can be activated via the "External control" terminal. If the auxiliary fre‐
quency is being used, then the identifier "Aux" appears on the LCD
screen.
This
‘auxiliary frequency’ has priority over the stroke rate, which is speci‐
fied by the currently selected operating mode - see also the chapter "Func‐
tion description" - "Hierarchy of operating modes".
Set-up
54
