ProMinent S1Cb User Manual

Continuous
display
Memory
Off
On
Main menu
Mode
Settings
Service
Information
Language
Settings
Batch
Auxiliary freq.
Calibrate
Dosing
Relay
Batch
Memory
Factor
End
5
Factor
Batch
Memory
Factor
End
5 0 0 0 0 5

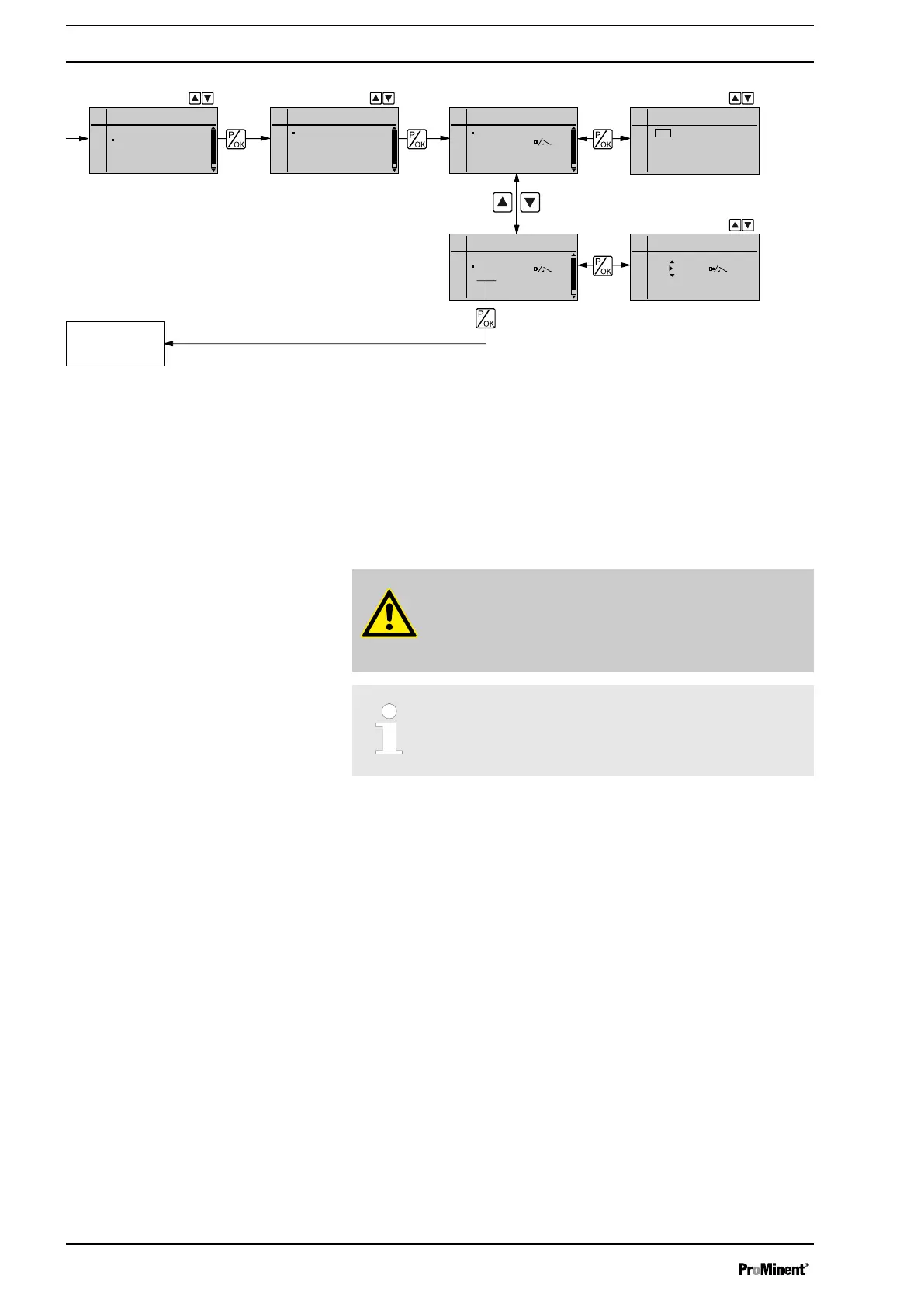

The operating mode
‘Batch’ is one variant of the ‘Contact’ operating
mode - see the following chapter. Here also, you can select a number of
strokes (no fractions, only integers from 1 to 99,999).
Operating mode ‘Batch’ is intended for large metering quantities.
Metering can be triggered by pressing the [P/OK] key or via a pulse
received via the "External Control" terminal.
The number of received pulses, which could not yet be processed, is
stored by the pump in the stroke memory, if it was activated.
CAUTION!
When changing over from the "Manual" operating mode to
the "Batch" operating mode, the pump maintains the stroke
rate.
The stroke rate can also be set in ‘Batch’ mode. It should
normally be set to the maximum stroke rate.
Additionally, you can activate the "Memory" function extension (Identifier
"m"). When "Memory" is activated, the pump adds up the remaining
strokes , which could not be processed, up to the maximum capacity of the
stroke memory of 99,999 strokes. If this maximum capacity is exceeded,
the pump goes into fault mode.
8.5.3 "Contact" operating mode settings
The
‘Contact’ menu is available under ‘Contact’ mode in the ‘Settings’
menu.
‘Contact’ operating mode allows you to trigger individual strokes or a
stroke series.
You can trigger the strokes via a pulse sent via the "External control" ter‐
minal.
The purpose of this operating mode is to convert the incoming pulses with
a reduction (fractions) or small step-up into strokes.
"Memory" function extension
Set-up
48
