17 Exploded view drawings
17.1 Exploded drawings Sigma/ 1
P_SI_0024
1
5
4
5
6
2
3

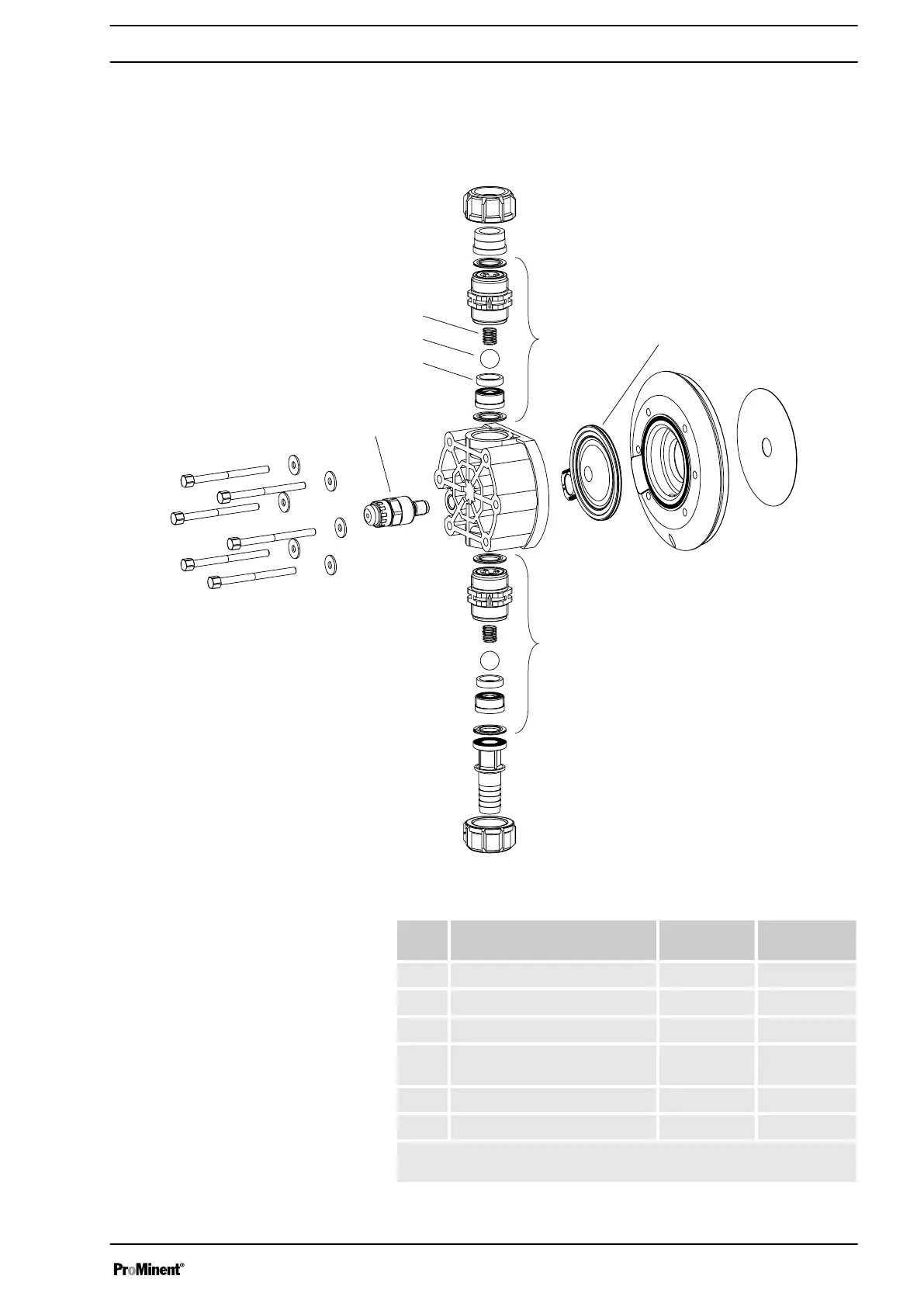

Fig. 38: Liquid end Sigma/ 1 050 and 065 PVT
Item Description Type 12035,
12017, 10050
Type 07065,
10044, 10022
1 Spring ** **
2 Ball * *
3 Ball seat * *
4 Diaphragm rupture sensor,
visual
1033323 1033323
5 Valve 1002267* 1002267*
6 Multi-layer diaphragm 1030114* 1030115*
* The items listed are included in the spare parts kit. ** Special accesso‐
ries (not included in the spare parts kit). Technical changes reserved.
Liquid end Sigma/ 1 050 and 065 PVT
Exploded view drawings
87
