Promise Technology Pegasus R4i
Hardware
This section provides a brief introduction to the external hardware of the Pegasus R4i MPX RAID
Storage Module.
LED Description
Status
The Drive Status LED lights blue when functioning normally. A red Drive Status LED
indicates a problem with the physical drive or an array.
Activity
The Drive Activity LED lights blue when the physical drive is present and blinks blue
when there is activity on the drive.
Drive Module locks
The locks are used for the upper and lower drive modules on their respective side.
To unlock the drive modules, slide the lock toward the center of the Pegasus R4i. To
lock, slide to the outside.

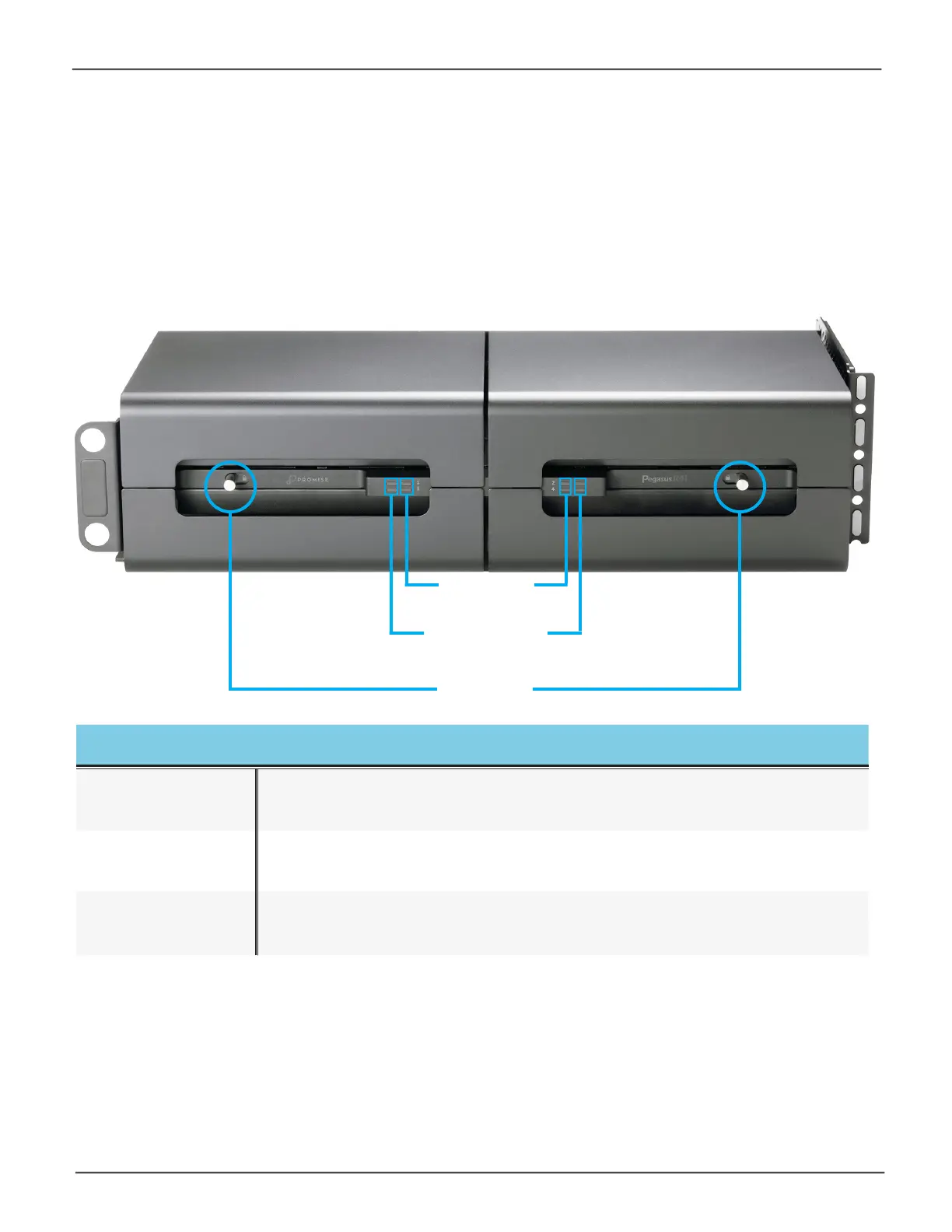

Front view
Activity LEDs
Drive Status LEDs
Drive Module
locks
