Promise Technology Pegasus R4i
Installing Pegasus R4i into Mac Pro
Make sure your Mac Pro is powered off before opening the system enclosure. Please refer to your
Mac Pro Essentials Guide for instructions to open the system enclosure in order to expose available
MPX bays used for the Pegasus R4i installation and to remove the clamp plates before beginning the
installation.

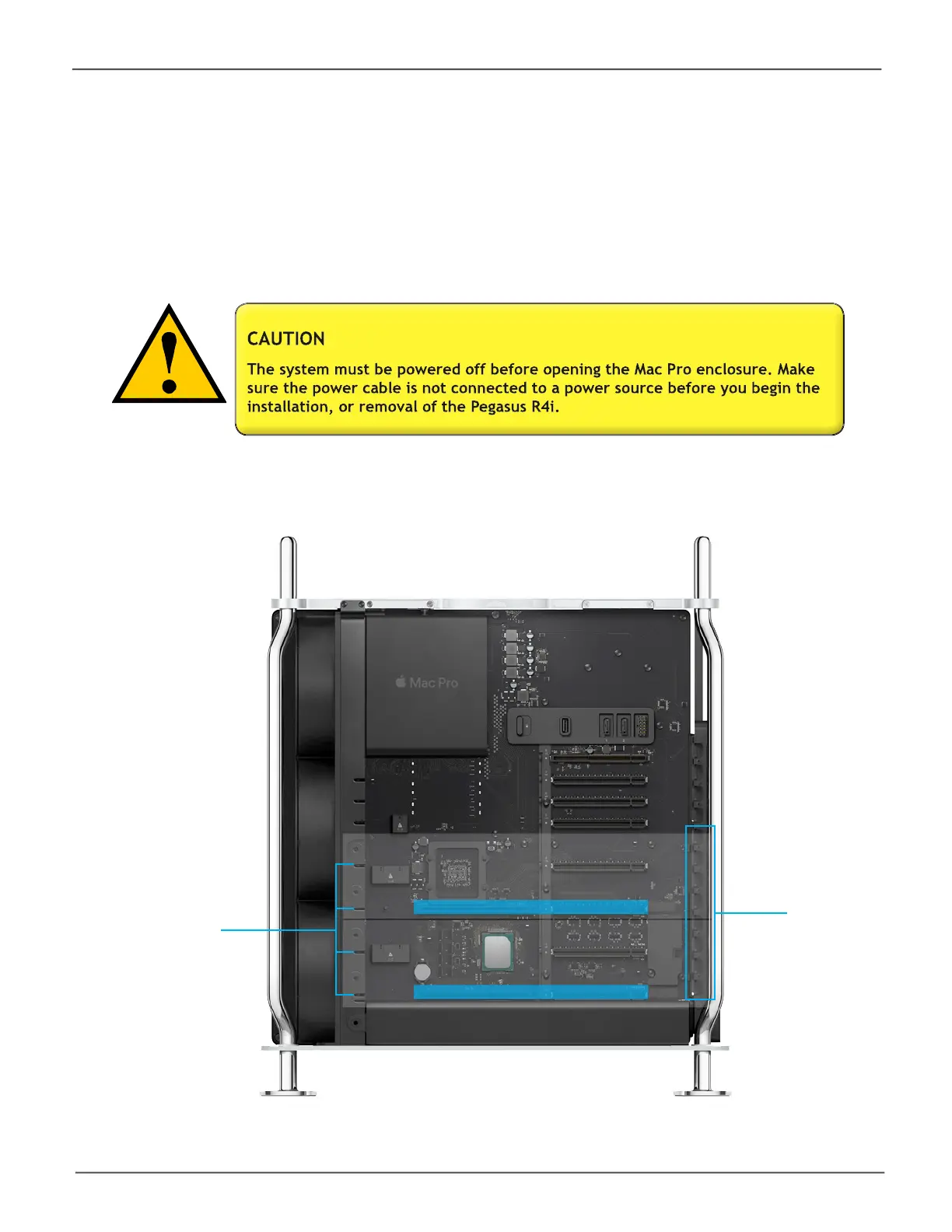

Internal components on Mac Pro
Bay 1
PCI Slot 1
PCI Slot 2
Bay 2
Slots guide the ribs
on the left side of
Pegasus R4i
Grooves used
to guide PCI
brackets
