Promise Technology Pegasus R4i
Front View
The Front View active menu lets you view the enclosures and all components on the front of the
Pegasus R4i.
Move the cursor over the drive module to display the information of the installed physical drive,
including the device ID, physical capacity, operational status, etc. Click on the drive to bring up the
Physical Drive Information, displaying the detailed information of the device.
FrontViewoptionsincludetheabilitytoindicatewhichmodulescontainunconguredphysicaldisks
(colored green), or to highlight arrays (colored purple).
Show Uncongured Physical Drives
Click the Show unconguredPD(s)boxtoidentifyanyunconguredphysicaldrives,theseappear
colored light green.

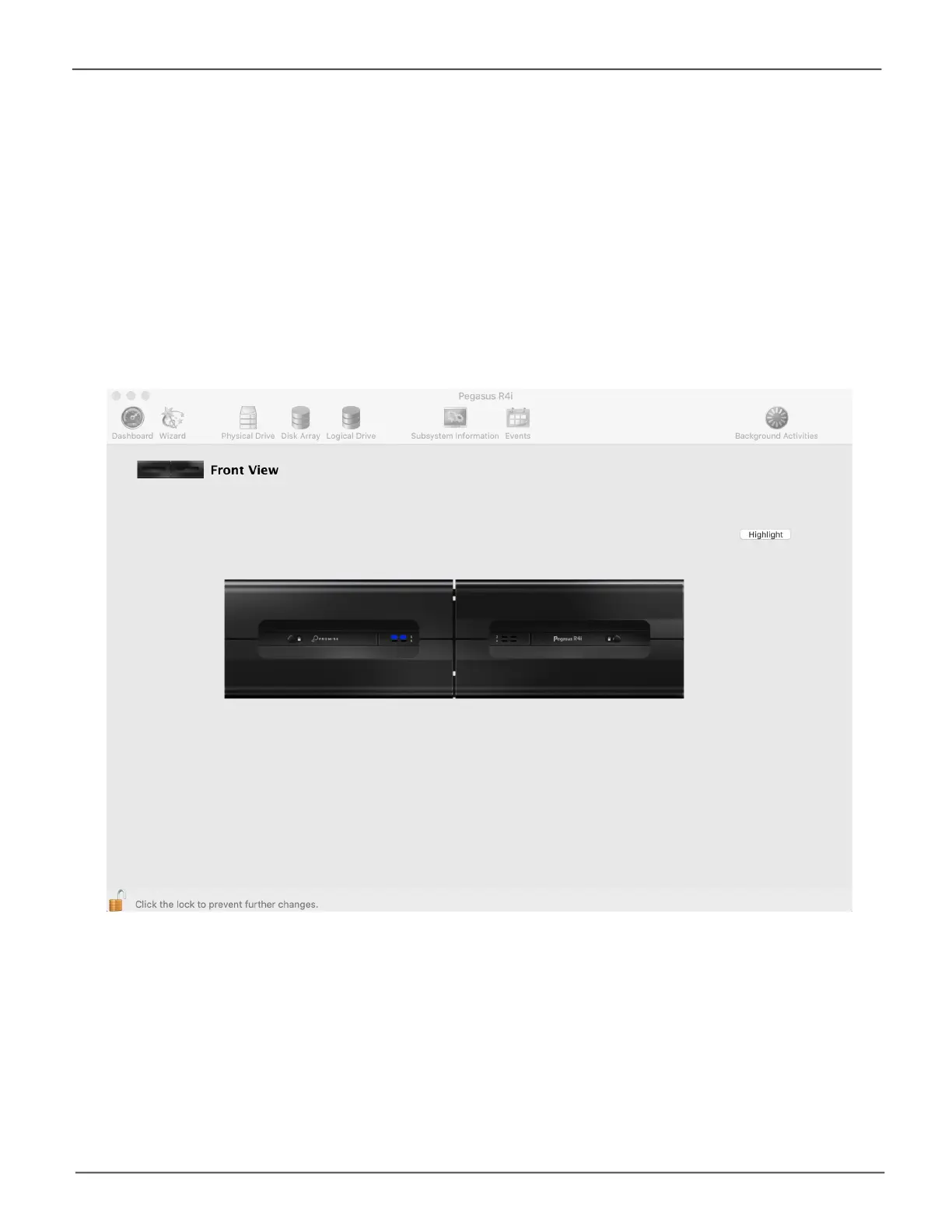

Device - Front View display menu
