Promise Technology Pegasus R4i
Viewing a List of Disk Arrays
To view a list of disk arrays, do one of the following actions:
• From the Dashboard window, click the Disk Array link.
• From the Storage menu, choose Disk Array. The list of disk arrays appears. Each disk
array lists:
• ID – DA0, DA1, etc.
• Alias – If assigned
• Status (Normal, Degraded or Incomplete/physical drive missing icon)
• Capacity – Data capacity of the array
• Free Capacity –Unconguredorunusedcapacityonthephysicaldrives
• Media Patrol – Enabled or disabled on this array
• Number of Logical Drives – The number of logical drives on this array

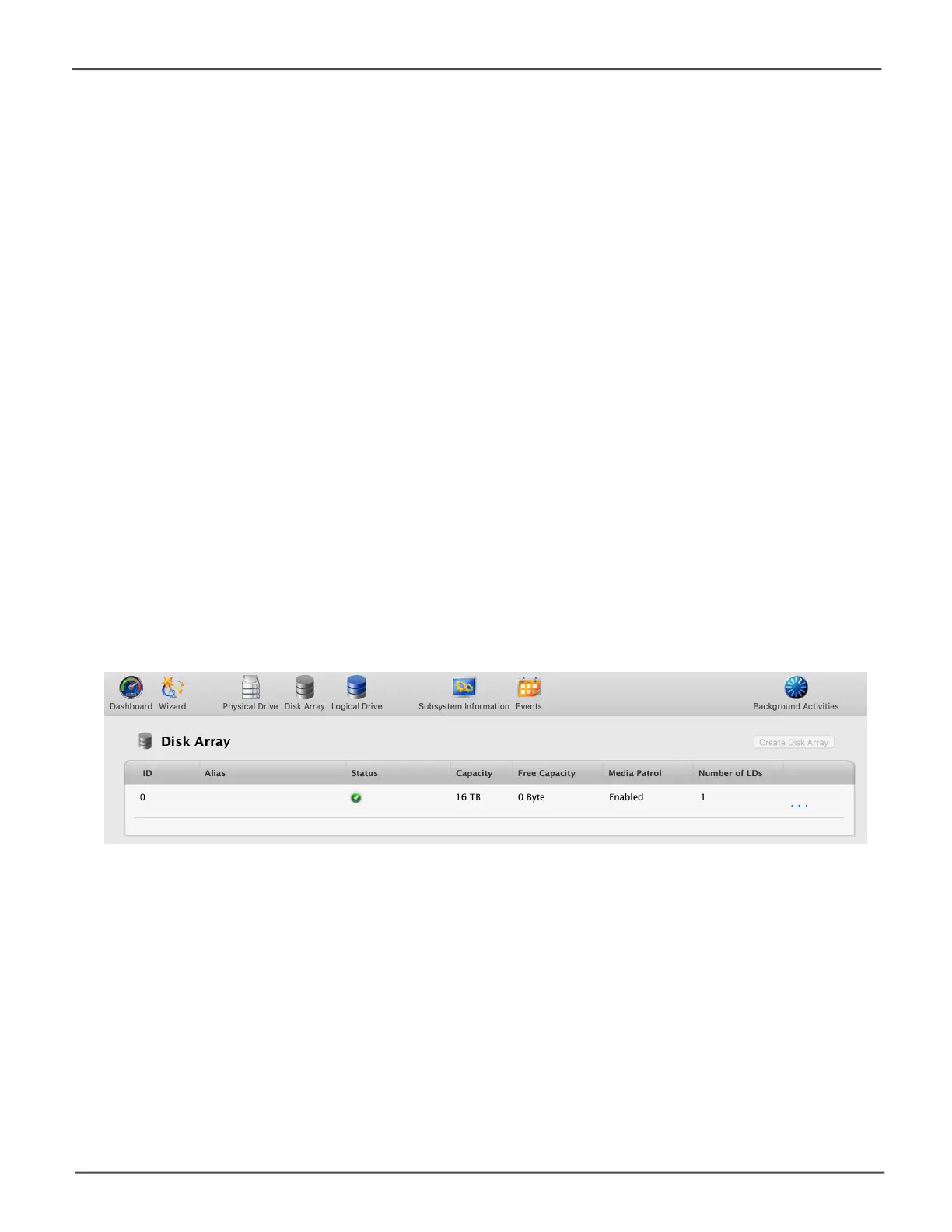

List of Disk Arrays
