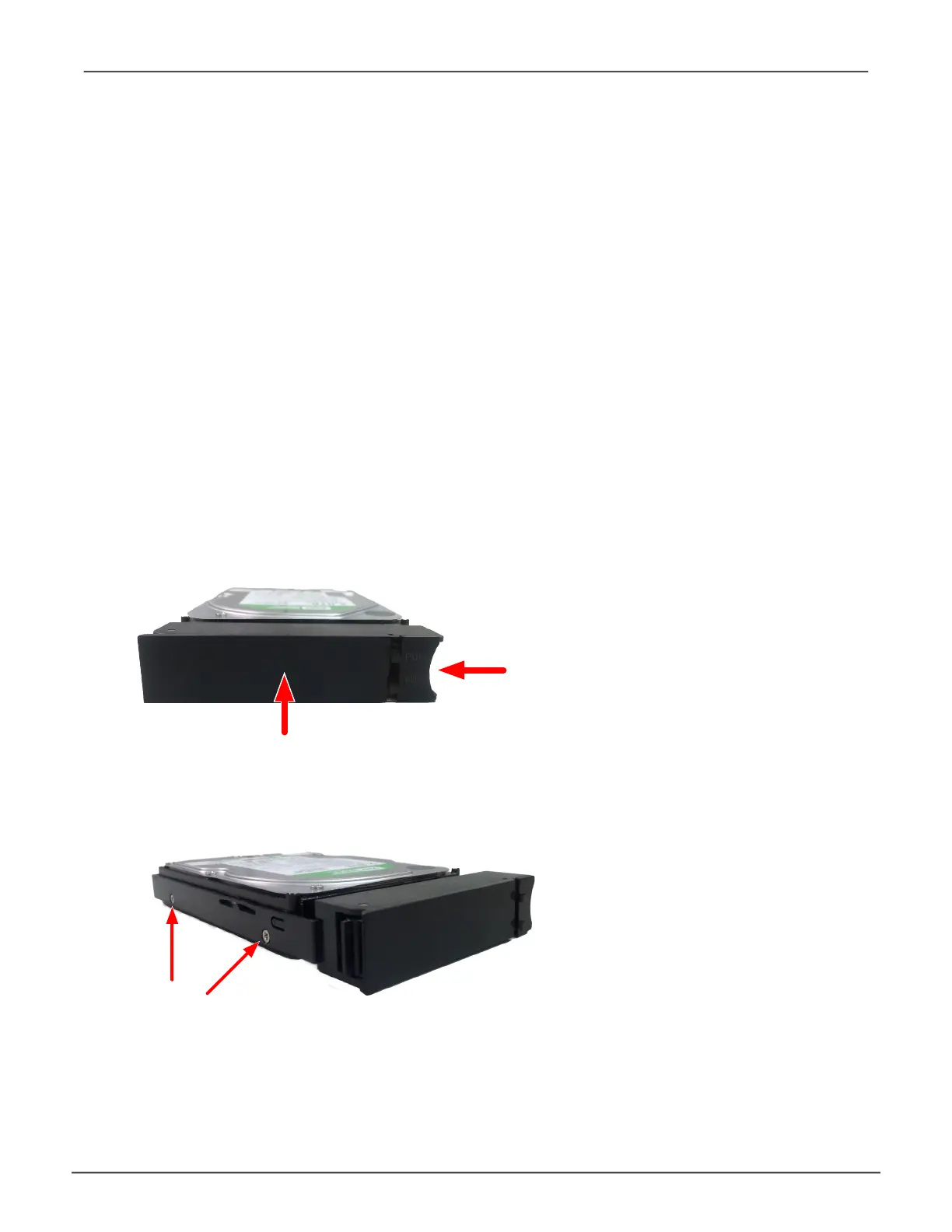

Counter sink screws; two screws on each
side.
Push in the center to insert the drive carrier into an empty drive
bay.
Pull handle to release the latch, then pull
straight out gripping the handle.
Place your free hand underneath when
removing or inserting the carrier containing
a hard disk drive, so you do not drop it.
DrIVe carrIers
The instructions below apply to all types of drive carriers intended for use with the Vess A-Series.
1. Remove a disk drive carrier.
2. Carefully lay the disk drive into the drive carrier at the front, so that the screw holes on the sides line up.
3. Insert the screws through the holes in the drive carrier and into the sides of the disk drive.
See illustration below.
Install only the counter-sink screws supplied with the drive.
• Install four screws per drive.
• Snug each screw. Be careful not to over-tighten.
4. Reinstall the drive carrier into the enclosure.
5. Repeat steps 1 through 3 until all of your disk drives are installed.
19
Hardware SetupVess A3340 Product Manual
