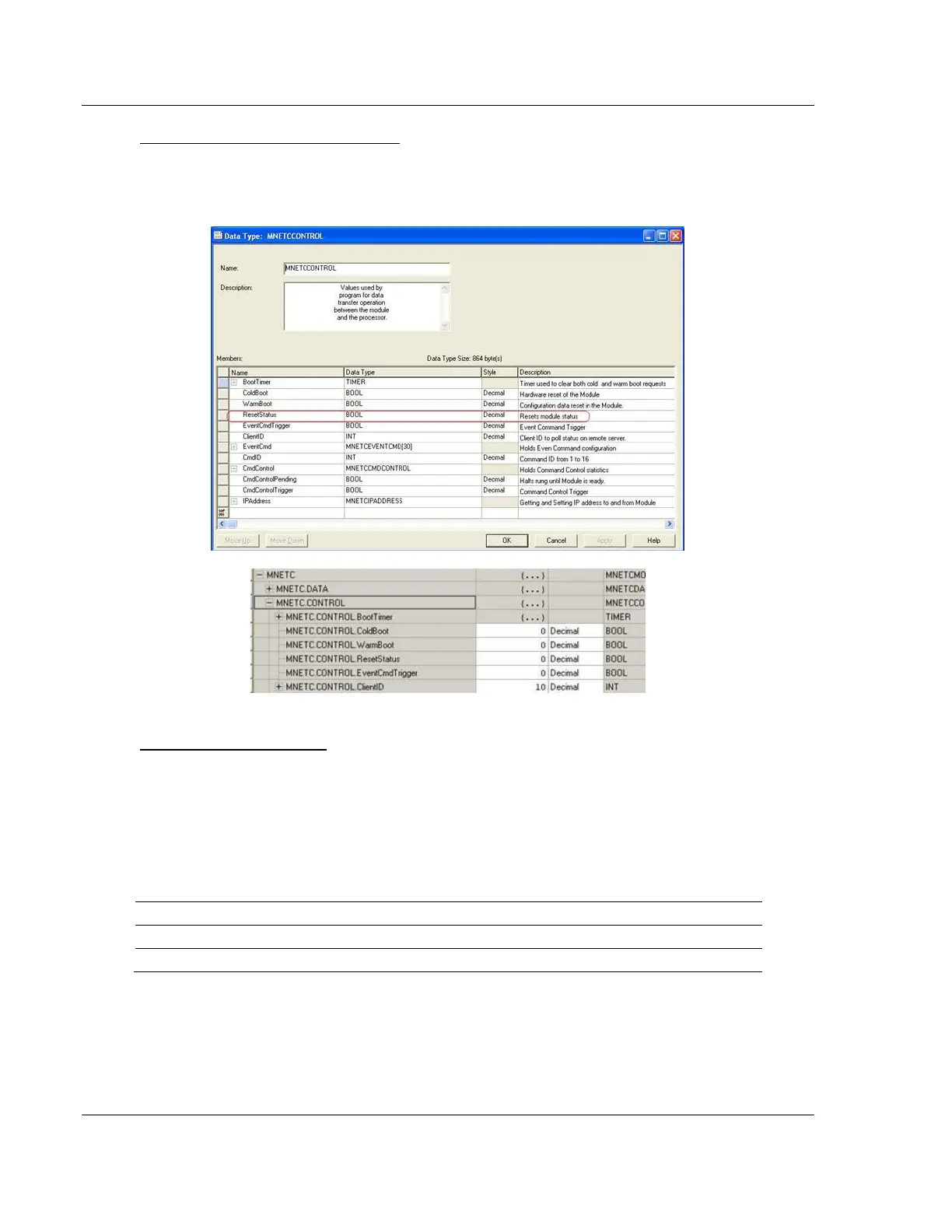

Reset Module Status Block (9997)
This block allows the processor to reset all status values available from the
module to the processor or through the PCB Diagnostics menu. This block is
triggered through the following data type and controller tag elements:
Warm Boot Block (9998)
This block is sent from the ControlLogix processor to the module (output image)
when the module is required to perform a warm-boot (software reset) operation.
This block is commonly sent to the module any time configuration data
modifications are made in the controller tags data area. This will cause the
module to read the new configuration information and to restart.
