ProSoft Technology MVI56E-MNETC User Manual

Reference MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
User Manual Modbus TCP/IP Client Enhanced Communication Module - Client/Server
Page 160 of 172 ProSoft Technology, Inc.
September 20, 2018

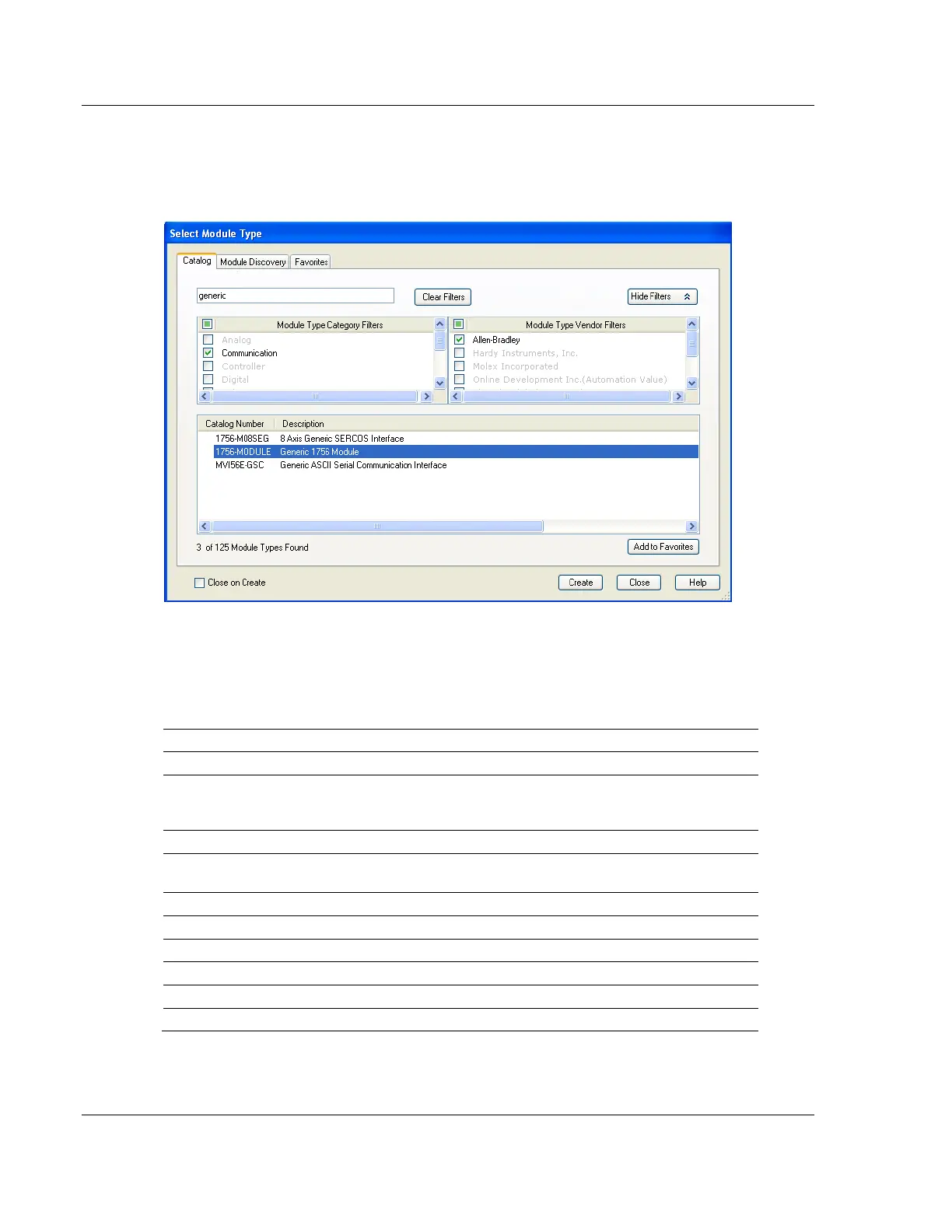

This action opens the Select Module dialog box .Enter GENERIC in the text
box and select the GENERIC 1756 MODULE. If you're using an earlier
version of RSLogix, expand OTHER in the Select Module dialog box, and
then select the GENERIC 1756 MODULE.
2 Select the 1756-MODULE (GENERIC 1756 MODULE) from the list and click OK.
This action opens the New Module dialog box.
3 Fill in the module properties as follows. You must select the Comm Format as
DATA - INT in the dialog box, otherwise the module will not communicate.
Parameter
Value
Name
Enter a module identification string. Example: MNETC_2
Description
Enter a description for the module. Example: MODBUS
TCP/IP CLIENT ENHANCED COMMUNICATION MODULE -
CLIENT/SERVER
Comm Format
Select DATA-INT.
Slot
Enter the slot number in the rack where the MVI56E-
MNETC/MNETCXT module is located.
Input Assembly Instance
1
Input Size
250
Output Assembly Instance
2
Output Size
248
Configuration Assembly Instance
4
Configuration Size
0
4 Click OK to continue.
