MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform MVI56E-MNETC/MNETCXT Configuration
Modbus TCP/IP Client Enhanced Communication Module - Client/Server User Manual
ProSoft Technology, Inc. Page 35 of 172
September 20, 2018

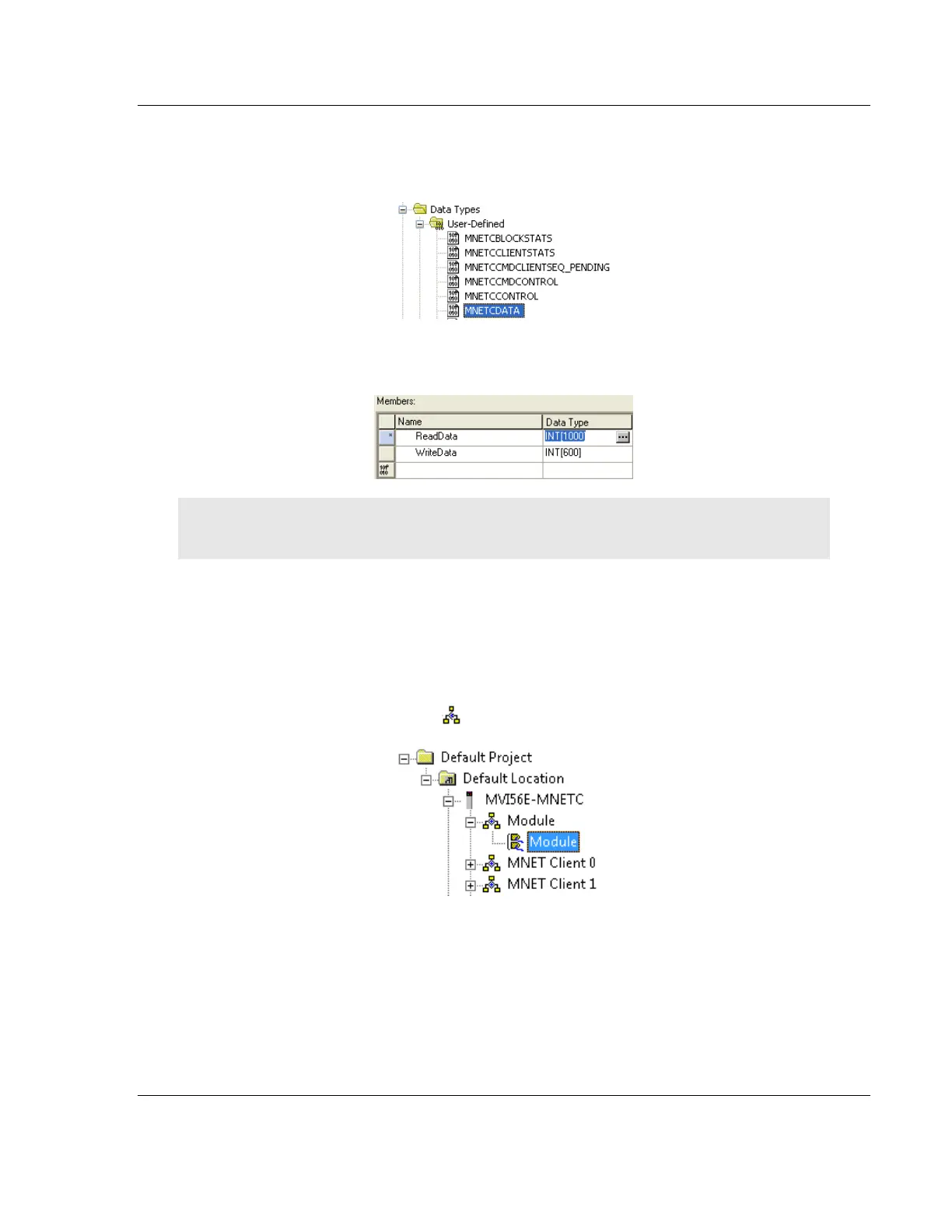

1 In the CONTROLLER ORGANIZATION window, expand the DATA TYPES and
USER-DEFINED folders, and then double-click MNETCDATA. This action
opens an edit window for the MNETCDATA data type.
2 In the edit window, change the value of the READDATA array from INT[600] to
INT[1000] as shown, and then click APPLY.
Note: If RSLogix resets your data values, refer to the backup copy of your program to re-enter your
configuration parameters.
3 Next, navigate to CONTROLLER TAGS and double click to open an edit
window. Click the MONITOR TAGS tab at the bottom of the edit window.
You execute the rest of the steps in ProSoft Configuration Builder.
4 Start ProSoft Configuration Builder.
5 Double-click the MVI56E-MNETC icon to expand the menu for the module in
PCB.
6 Click the [+] icon next to the MODULE icon to expand the Module menu.
To Next Page
