MVI56E-MNETC/MNETCXT Configuration MVI56E-MNETC/MNETCXT ♦ ControlLogix Platform
User Manual Modbus TCP/IP Client Enhanced Communication Module - Client/Server
Page 58 of 172 ProSoft Technology, Inc.
September 20, 2018

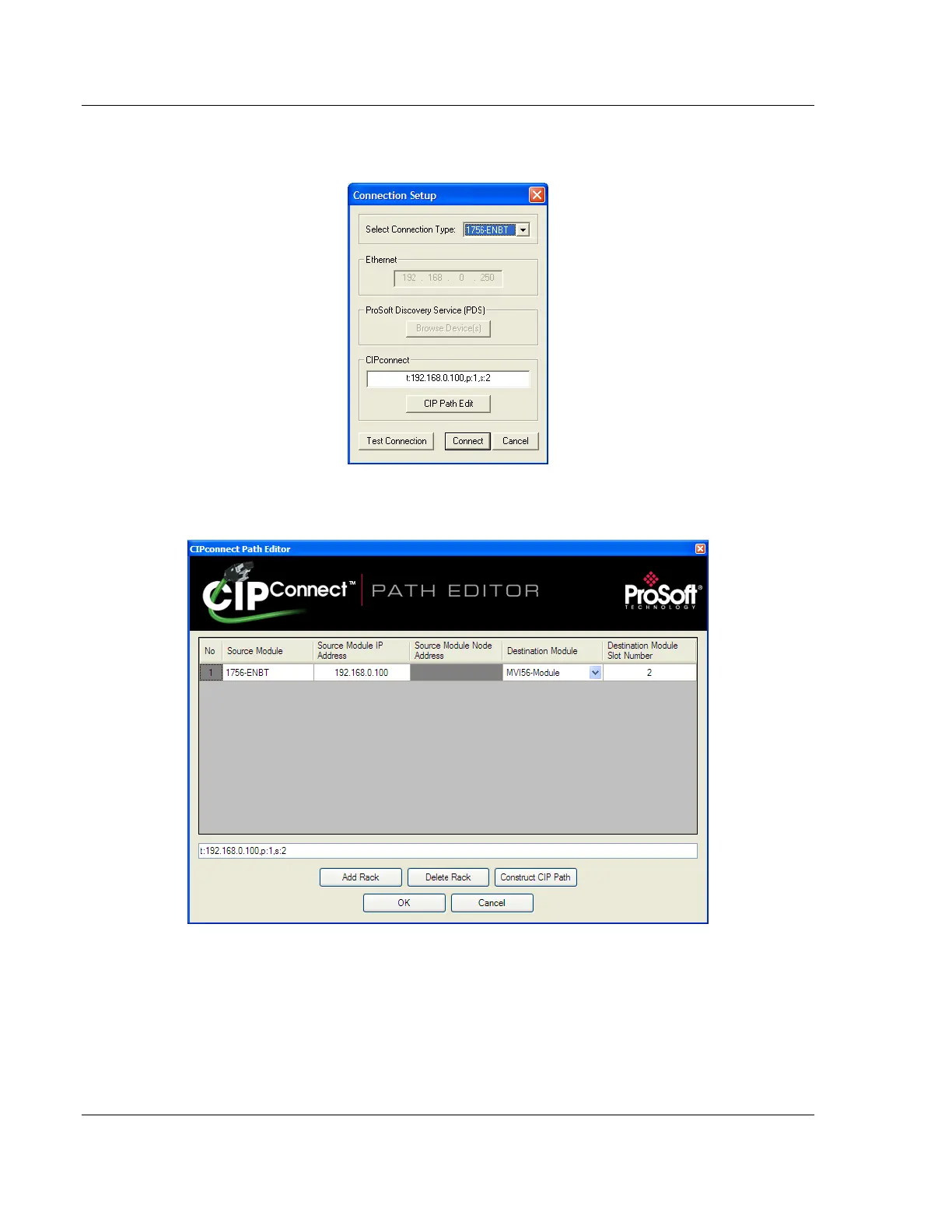

3 In the Select Connection Type dropdown list, choose 1756-ENBT. The
default path appears in the text box, as shown in the following illustration.
4 Configure the path as shown in the following illustration, and click
CONSTRUCT CIP PATH to build the path in text format.
5 Click OK to close the CIPconnect Path Editor and return to the Connection
Setup dialog box.
