ProSoft MVI56E-MCMR - Page 100

Configuring the MVI56E-MCMR Module MVI56E-MCMR ♦ ControlLogix Platform
User Manual Modbus Communication Module with Reduced Data Block
Page 100 of 223 ProSoft Technology, Inc.

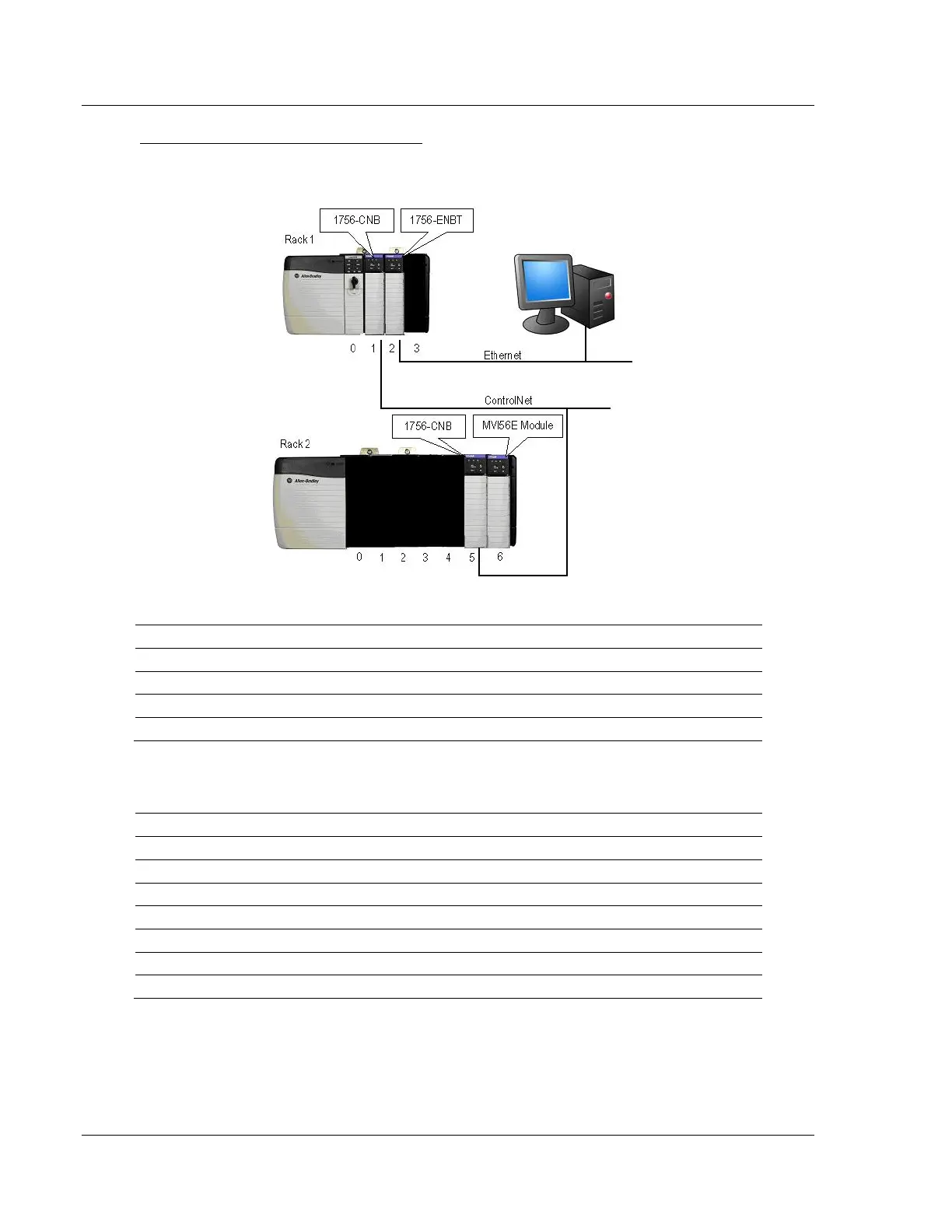

Example 2: Remote Rack Application
For this example, the MVI56E-MCMR module is located in a remote rack
accessible through ControlNet, as shown in the following illustration.
Rack 1
Slot
Module
Network Address
0
ControlLogix Processor
-
1
1756-CNB
Node = 1
2
1756-ENBT
IP=192.168.0.100
3
Any
-
Rack 2
Slot
Module
Network Address
0
Any
-
1
Any
-
2
Any
-
3
Any
-
4
Any
-
5
1756-CNB
Node = 2
6
MVI56E-MCMR
-
