MVI56E-MCMR ♦ ControlLogix Platform Configuring the MVI56E-MCMR Module
Modbus Communication Module with Reduced Data Block User Manual
ProSoft Technology, Inc. Page 101 of 223

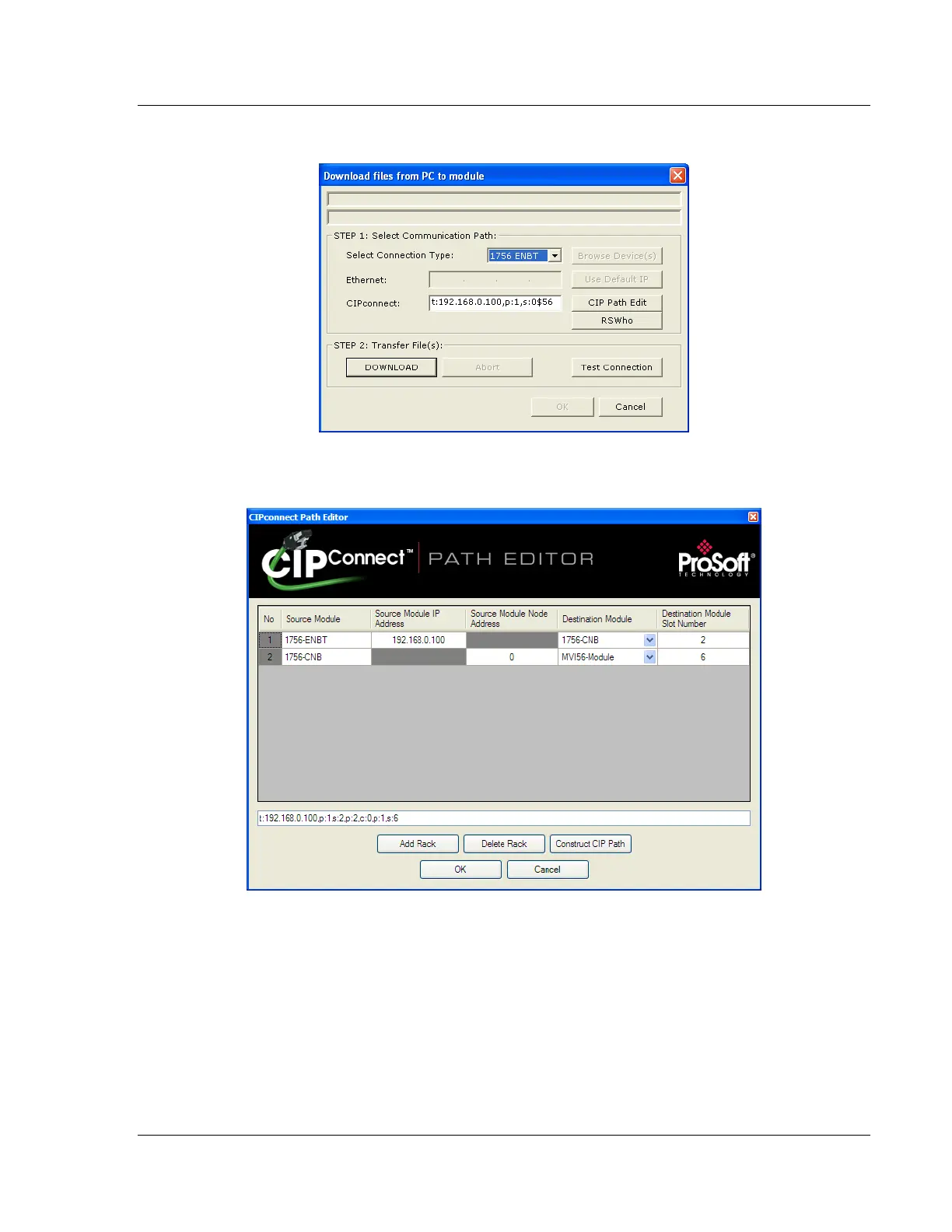

1 In the Download dialog box, click CIP PATH EDIT.
2 Configure the path as shown in the following illustration and click CONSTRUCT
CIP PATH to build the path in text format.
Click OK to close the CIPconnect Path Editor and return to the Download
dialog box.
