ProSoft MVI56E-MCMR - Page 33

MVI56E-MCMR ♦ ControlLogix Platform Start Here
Modbus Communication Module with Reduced Data Block User Manual
ProSoft Technology, Inc. Page 33 of 223

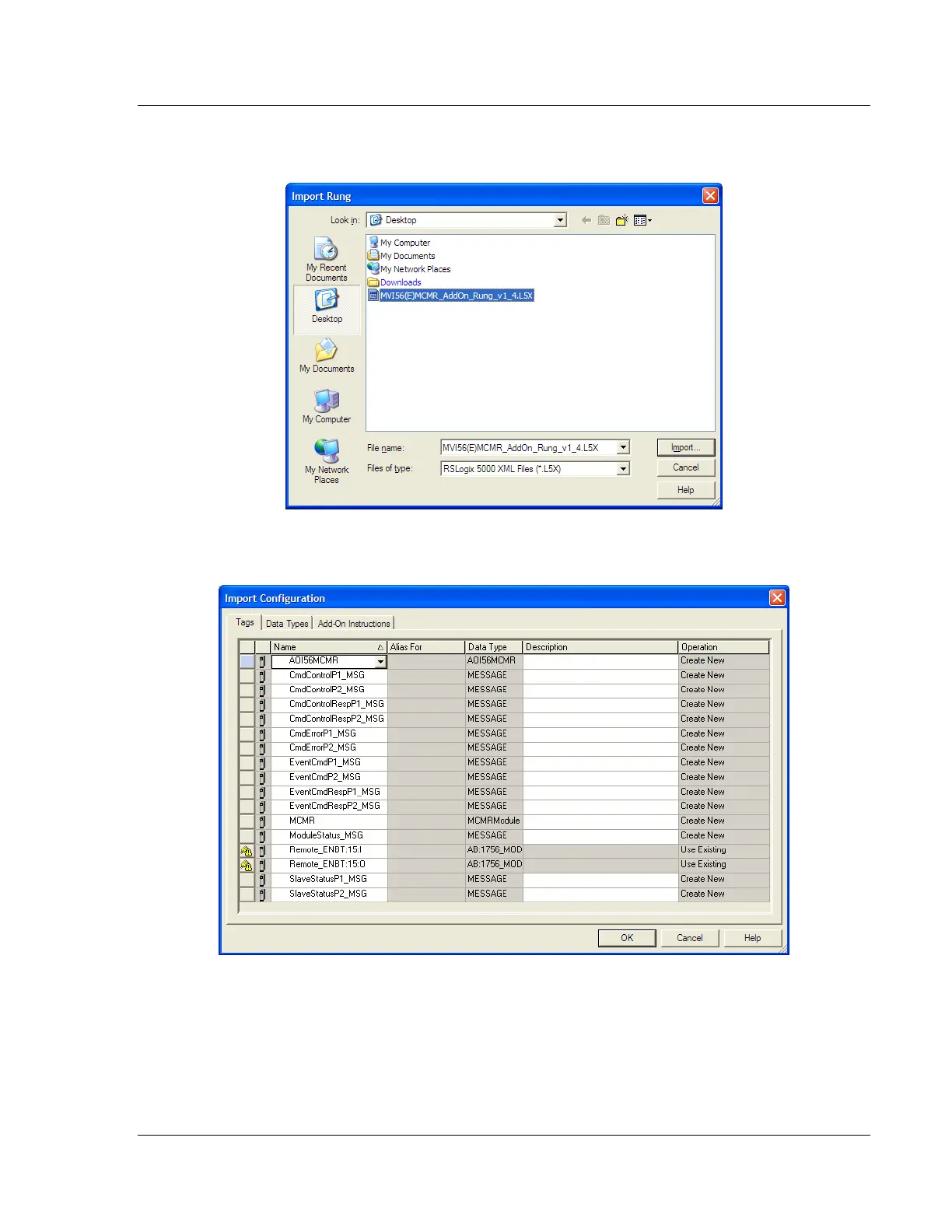

9 Select the MVI56(E)MCMR_ADDON_RUNG_V1_4.L5X file, and then click
IMPORT.
10 This action opens the IMPORT CONFIGURATION window, which shows the tags
that will be imported.
