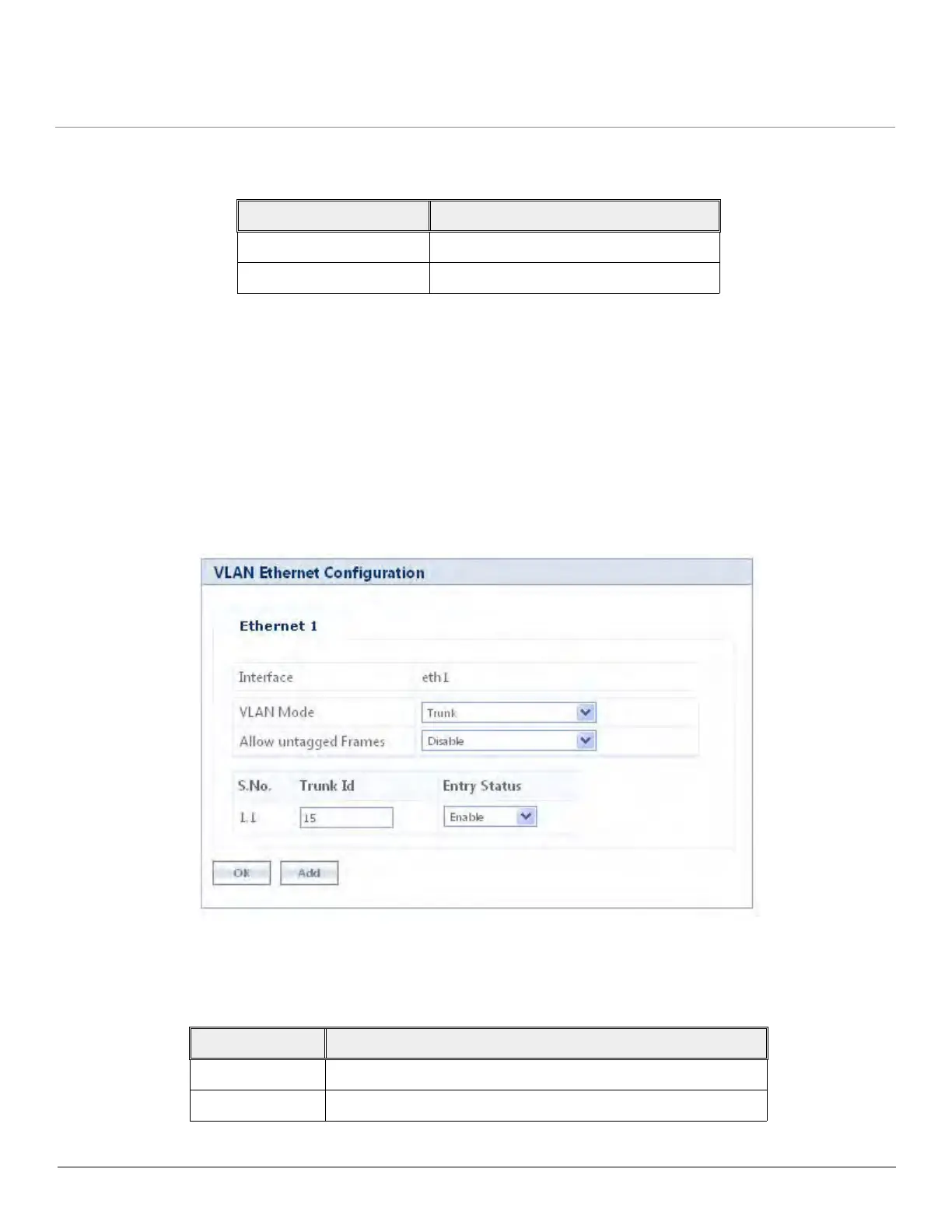

Page #99 background imageLoading...
Page #99 background image
Advanced Configuration
Tsunami QB-8100 Series (100 Mbps/5 Mbps Models) Installation and Management Guide 99
2. Enter the parameters listed in the following table.
3. Click OK.
Click COMMIT for the changes to take effect. Once the transparent mode is set, both tagged and untagged frames are
received on the interface.
NOTE: Wireless Interface of the device will always be in transparent mode. There is no support provided to edit the
wireless interface VLAN parameters.
4.7.2.2 Trunk Mode
Trunk mode is configurable on both the ethernet interfaces of End Point A and End Point B. It is mainly used to connect VLAN
aware networks. When an interface is in Trunk mode, it forwards only those tagged frames whose VLAN ID matches with a
VLAN ID present in trunk table. All other frames will be dropped.
Figure 4-44 VLAN operation in Trunk Mode
To enable Trunk mode, click ADVANCED CONFIGURATION > VLAN > Ethernet and enter the settings as described in the
following table:
Parameters Description
Interface Displays the name of the interface.
VLAN Mode Select the VLAN mode as Transparent.
Parameter Description
Interface Displays the name of the interface.
VLAN Mode Select the VLAN Mode as Trunk.
