139

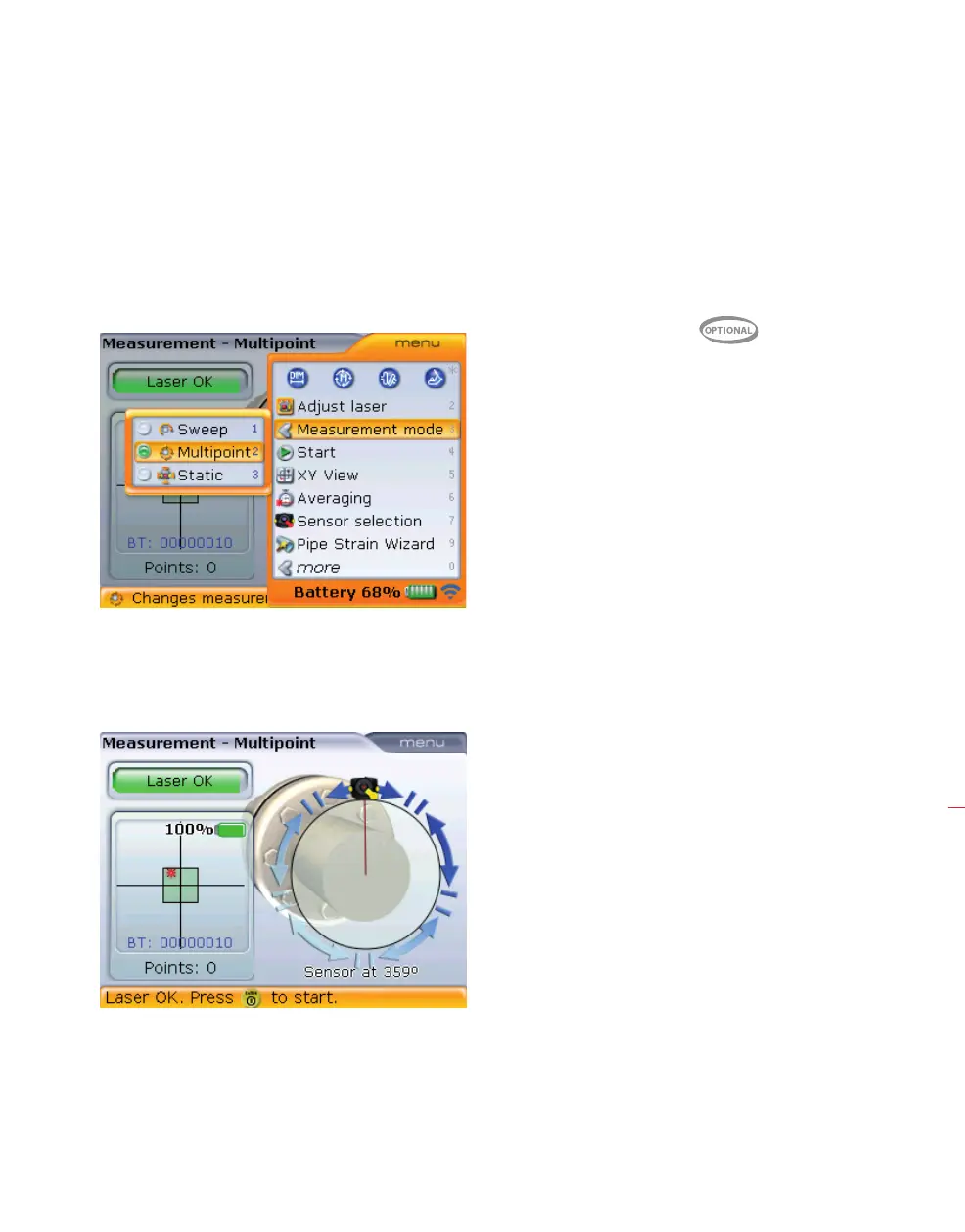

3. With the sensor aperture open, press m and establish wireless communication
(refer to ‘Wireless measurement’ section 4.4’). The laser beam location should be
apparent in the adjustment screen.
4. Press
q. A context menu appears. Use the context menu item ‘Measurement
mode’ to select the ‘Multipoint’ measurement mode. (For details about this
mode refer to ‘Multipoint measurement’ section 6.1.1.)
5. Press
e to confirm selection.
6. The laser dot should be in the square target. If not, center laser beam (refer to
‘Laser beam adjustment’ in section 5.9).
7. With laser beam centered, press
e to take the first measurement point.
8. Rotate the sensor to the next measurement point.
9. Rotate the laser holder and the RS5 laser and observe the detector view in the
measurement screen (see next screenshot): at the moment when the laser dot is
positioned on the Y-axis, press
e to take the next measurement.
Note: The Multipoint
measurement mode is
an optional firmware
module. Please order
part number ALI 12.715
[Multipoint measure
mode] to activate the
feature.
Cardan drive machines
