PRÜFTECHNIK OPTALIGN smart RS5 BT User Manual

Horizontal shaft alignment
63
To disenable tolerances directly, use the navigation keys and highlight the tick [ ]
and then confirm selection by pressing
e.

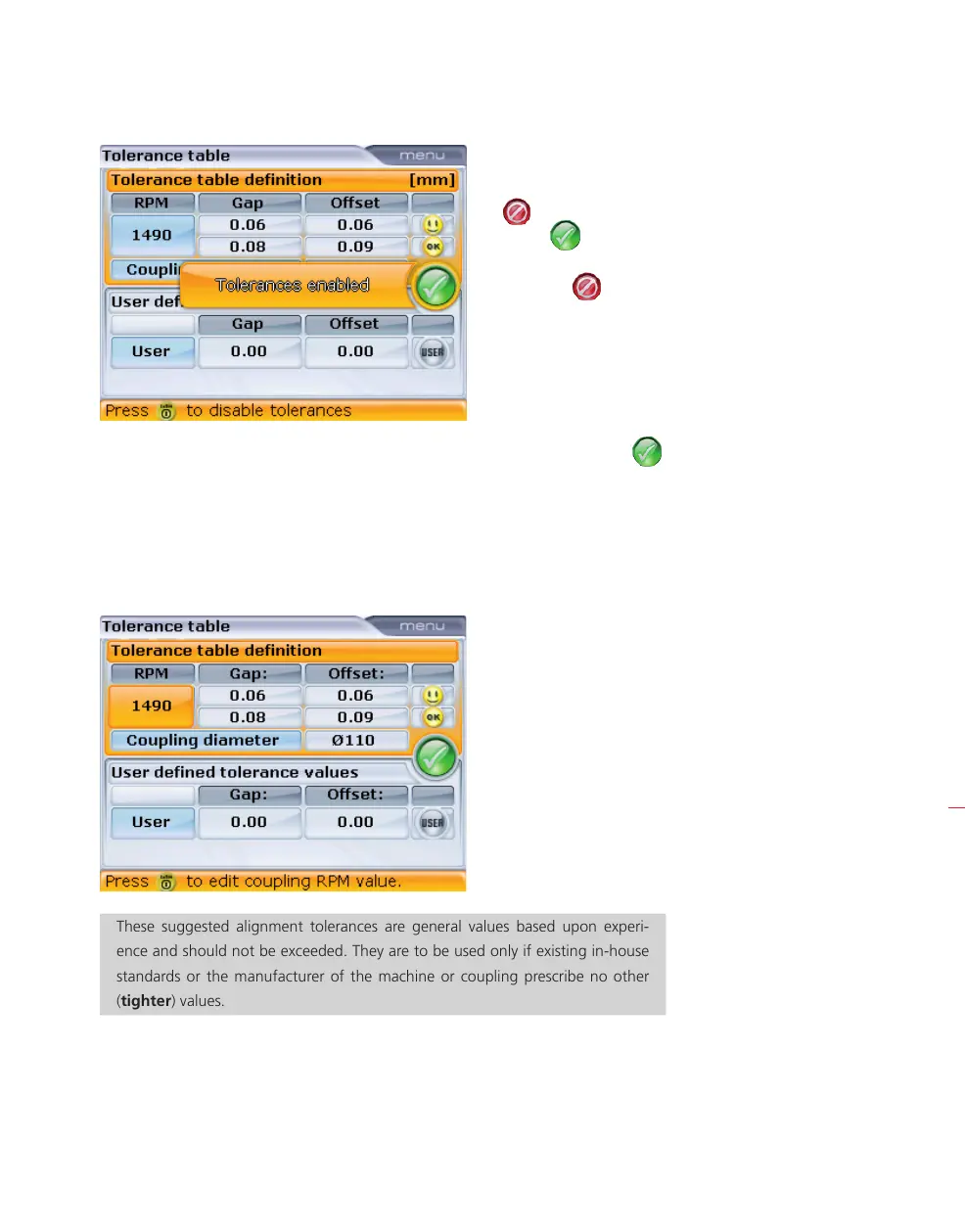

5.7.6 Tolerance table
The “Tolerance table” screen may be used to display the suggested active
PRÜFTECHNIK Condition Monitoring tolerance table.
These suggested alignment tolerances are general values based upon experi-
ence and should not be exceeded. They are to be used only if existing in-house
standards or the manufacturer of the machine or coupling prescribe no other
(tighter) values.
The tolerance table values are rpm dependent. Changing the rpm results in the cor-
responding gap/offset tolerance values. Use the navigation key to highlight the rpm
box. With the box highlighted, use the data entry keys and enter the required rpm
then confirm entry pressing
e.
If tolerances are already
disenabled, a “no” symbol
[
] appears instead of
the tick [
]. Tolerances
may be enabled directly by
highlighting
and the
pressing
e to confirm
selection.
While in the “Tolerance
table” screen, the
navigation keys may be
used to toggle between the
system and user defined
tolerance values.
a
CAUTION
