Psion Teklogix 7530 Hand-Held Computer User Manual139
Chapter 5: Configuration
Trap Destination Tab
5.8.3 Trap Destination Tab
A trap is an unsolicited report sent to SNMP Managers by the SNMP Agent running
on the managed node. This option allows you to define where the report will be sent.

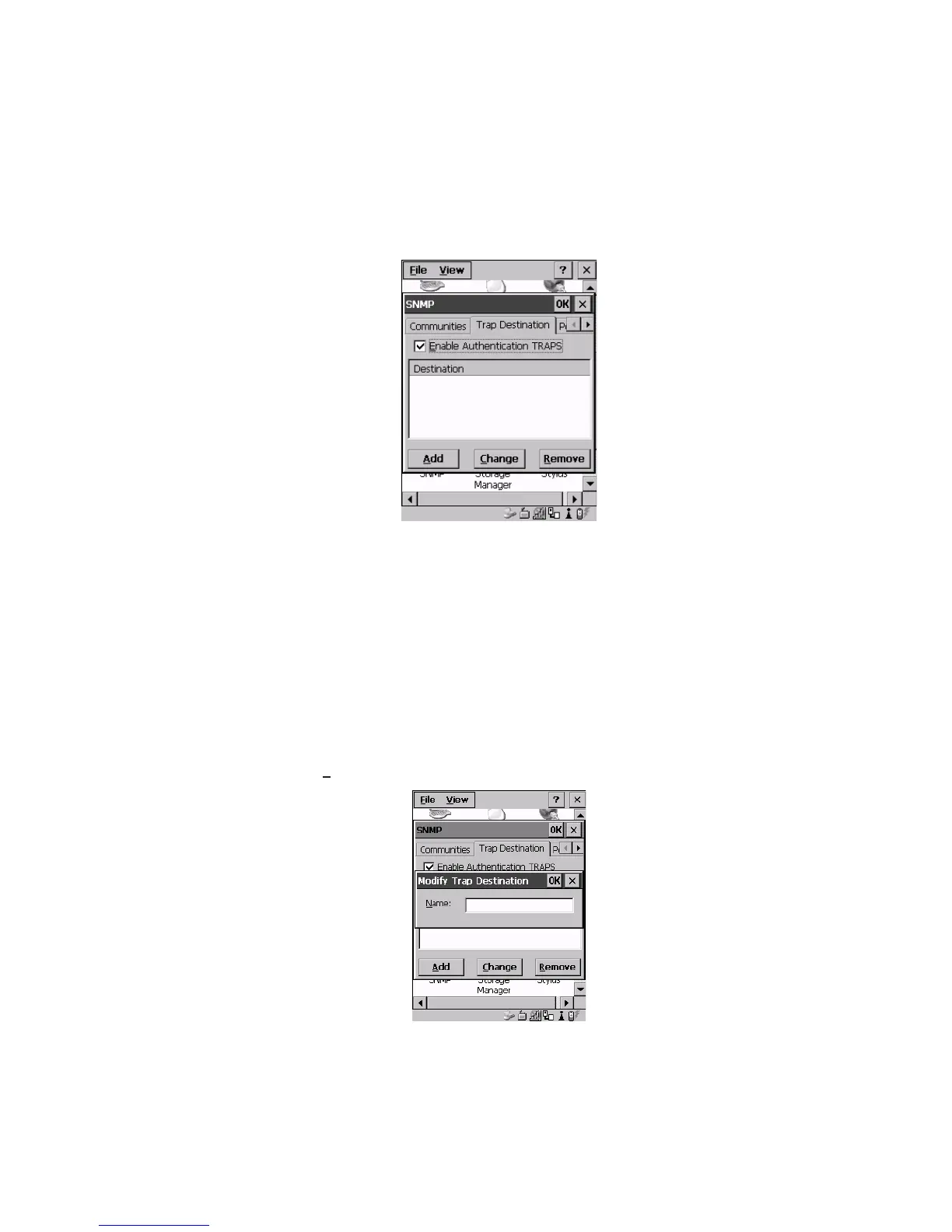

Figure 5.55 Trap Destination Tab
5.8.3.1 Enabling Authentication TRAPS
Enabling (√) ‘Enable Authentication TRAPS’ allows authorization traps to be sent when a
failure is detected (e.g., an SNMP message received with a bad community name).
5.8.3.2 Adding A Destination
To add a new destination:
• Choose the
Add button.
Figure 5.56 Adding A Trap Destination
• Type a destination in the text box provided, and press <ENTER>.
