6.

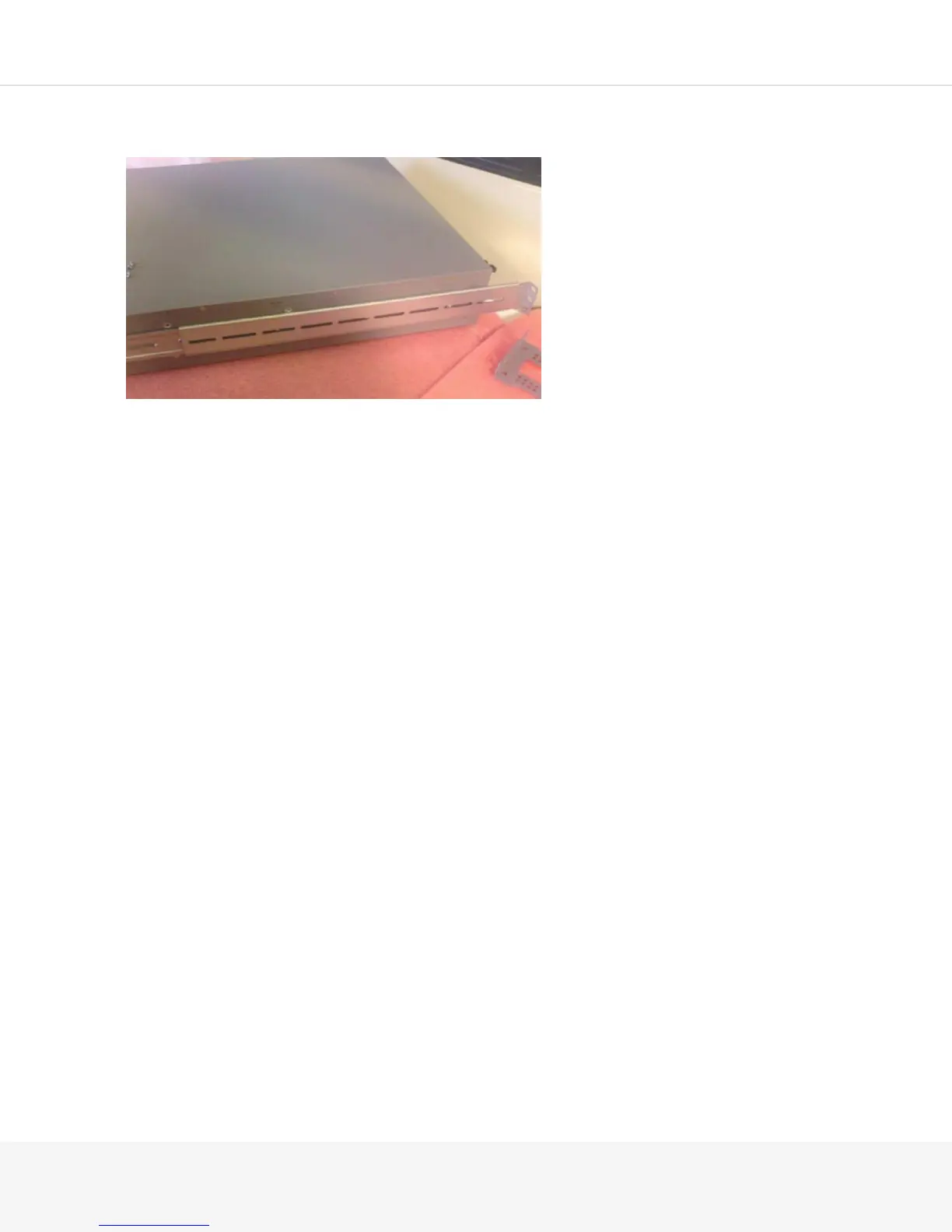

Slide the rear rail onto the front rail. The ear of the rear rail should be facing the rear of the Pulse
Secure Gateway chassis and pointing outward.
7.
Measure your rack or cabinet to determine the distance between the ear on the front rail and the ear
on the back rail and adjust your rear rail accordingly.
8.
Secure the rear rail to the front rail using the flat-head M4 screws.
Using the MAG4610 Rack-Mounting Kit
A mounting kit is included with the MAG4610 Pulse Secure Gateway and has the following pieces:
•
2 front brackets
•
2 rear brackets
•
2 rails
•
8 silver medium length phillips drive screws and washers
•
8 black medium length phillips drive screws and washers
•
12 round-head silver phillips drive screws
•
2 small silver flat-head phillips drive screws
•
10 small silver flat-head phillips drive screws
