60
Solar Watts is for on Grid
A. The system waits to turn on the smart load until enough PV power is produced (when on the grid)
AC Coupling Settings (“For AC Coupled Input to Gen”)
A. To use the Gen input terminal as an AC coupled input, check the "For AC Coupled Input to Gen" box (this
feature will also work with three-phase "Grid-Tied" Inverters)
B. In this mode, the meaning of “Smart Load OFF Batt” and “Smart Load ON Batt” change.
Smart Load OFF Batt: The SOC % or V at which the AC coupled inverter(s) are shut down when in off-grid mode.
NOTE:
¤
90% recommended
Smart Load ON Batt: The SOC % or V at which the AC coupled inverter(s) are turned on when in off-grid mode.
NOTE:
¤
60%-80% recommended
When On-Grid, the AC-coupled Inverter is always on, selling any extra power back to the grid.
Ensure you can (are allowed) sell power to your utility provider when using AC Coupled PV Arrays on-grid.
To use the LOAD terminal for AC coupling grid-tied Inverter (s)
A. You must select "AC couple on load side"
B. The Gen terminals are not used (even though the GEN terminals are not physically being used for this mode,
AC coupling on the LOAD side prevents the use of the GEN terminals)
C. Wire as shown in the preceding example diagram labeled "Load side AC coupling example"
Some load-side AC coupling installations require a line-side tap instead of landing on a service panel.
NOTE: Some load-side AC coupling installations require a line-side tap instead of landing on a service panel.

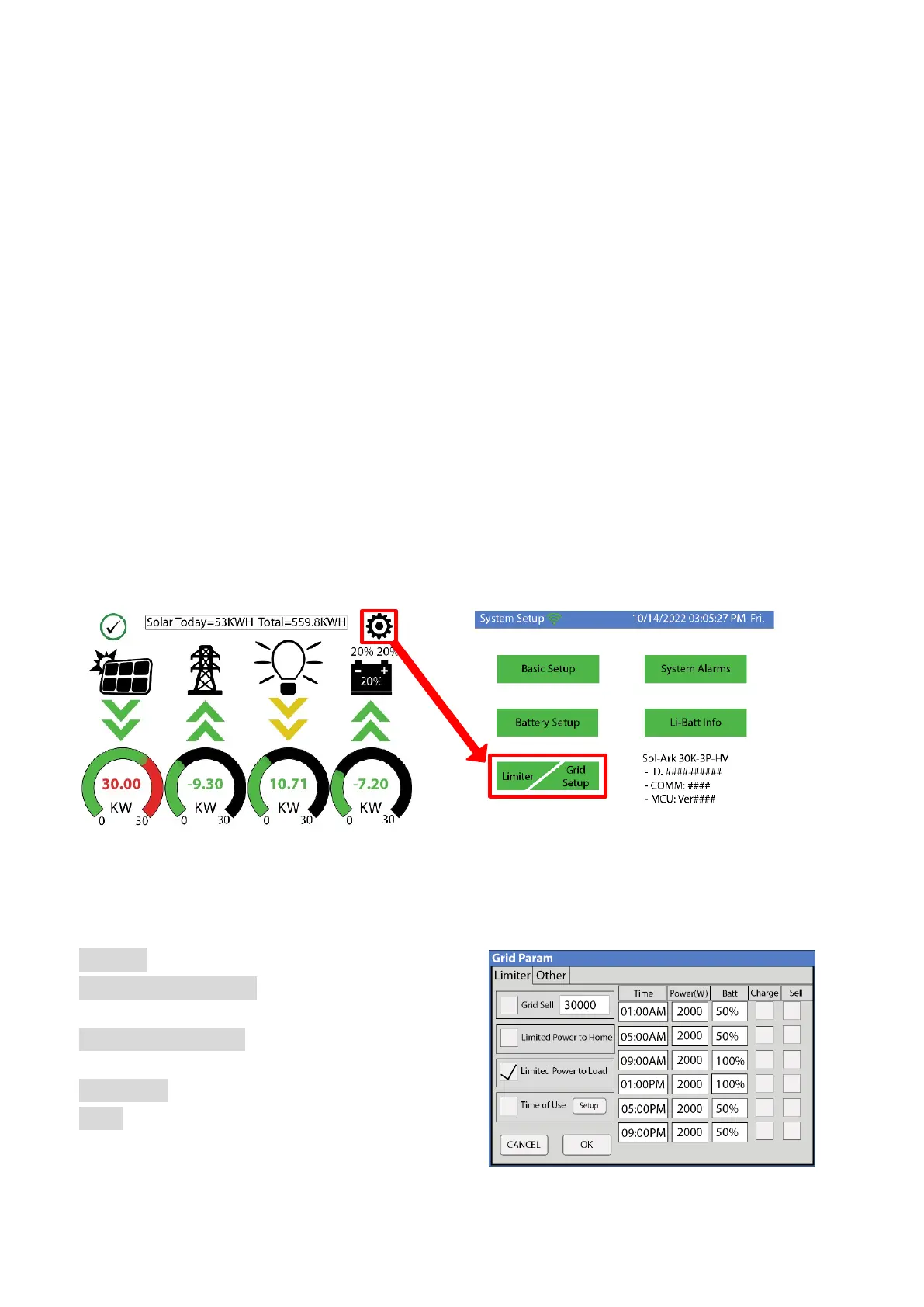

5. Limiter Tab / Grid Setup
Limiter Tab / Other Tab
Grid Sell: maximum watts sold to the grid.
Limited Power to Home: Limits power produced by the
system to match the demand of the Home (CTs Required)
Limited Power to Load: Limits power produced by the
system to match the demand of connected loads.
Time of Use: Use the batteries while the grid is ON
Time: When the System will sell batt/PV power to the
Grid or Home
