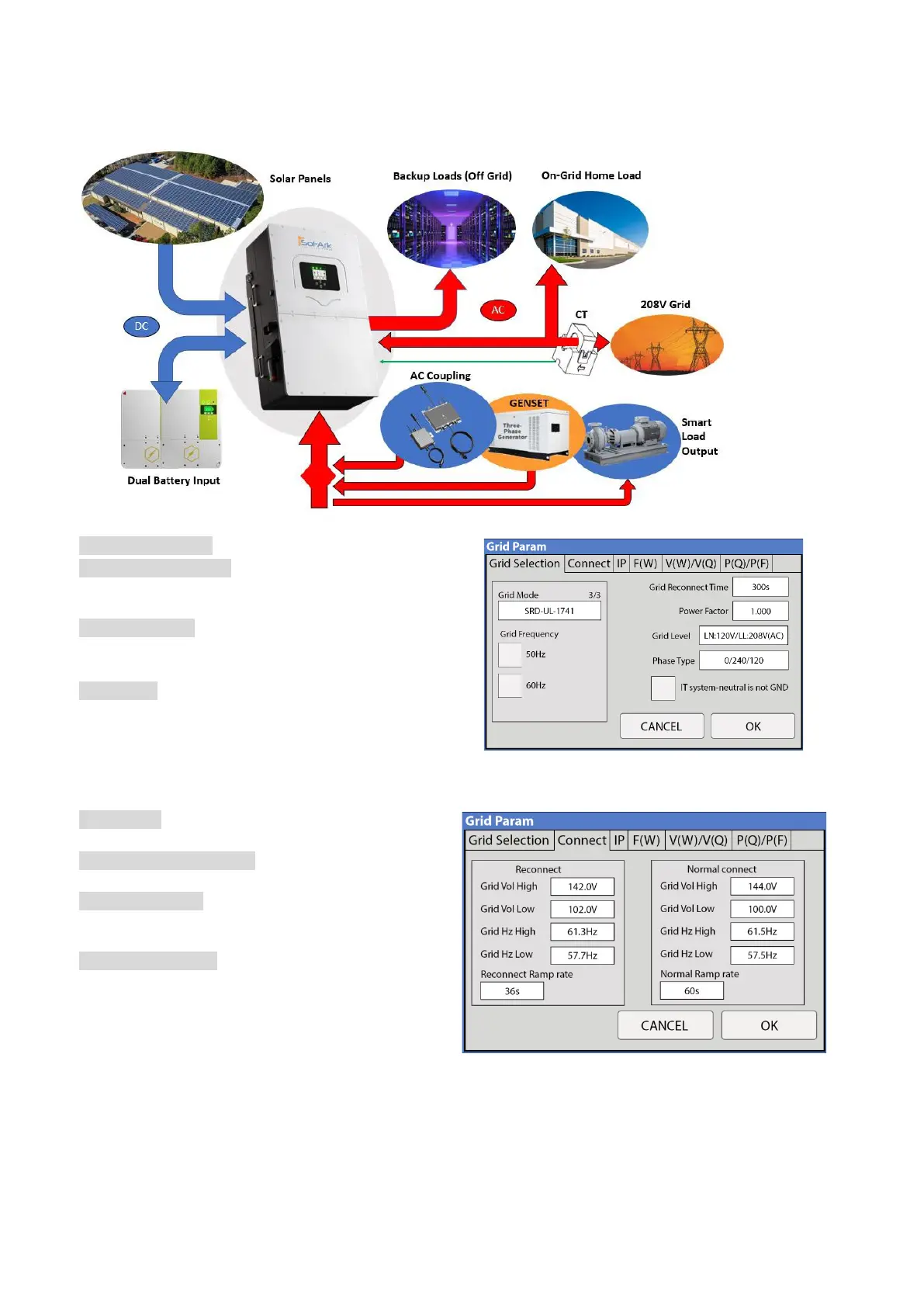

Power source priority:
1. Solar Panels | 2. Batteries (programmable % discharge) | 3. Grid (control when Grid charges) | 4. Generator
Grid Selection Tab
General Standard: uses Protect Parameters in table.
UL 1741 & IEEE1547: Enables sell compliant
functionality UL1741SA: Enables wider Freq, Voltage,
and Power Factor
Grid Frequency: Select the Grid Frequency connection.
Grid Reconnect Time: Time to reconnect to the grid after
grid loss.
Grid Level: Several voltage levels for the inverter output
voltage when in off-grid mode. LN:120VAC LL:208VAC,
LN:115VAC LL:200VAC, LN:133VAC LL:220VAC
NOTE: Each time the input/output voltage changes, the
inverter(s) require a power cycle
Connect Tab
Reconnect: The voltage and frequency range the
Inverter uses to reconnect to the grid after a grid loss
Reconnect Ramp Rate: The reconnection power
ramp
Normal Connect: The voltage and frequency range
the Inverter uses when connecting to the grid for the
FIRST time.
Normal Ramp Rate: The startup power ramp
NOTE: We recommend widening the frequency
range when connecting a generator to the grid
terminal (55-65Hz).
