Caution: Wrong communication cables connection will cause the battery system failure.
Attention,¤
Une mauvaise connexion des câbles de communication entraînera une défaillance du
système de batterie.
3.3.4.1 Grounding
Danger: The PowerCube-M1-C modules’ grounding is based on metal directly touch between the
module’s surface and rack’s surface. So it needn’t grounding cables at all. If uses normal rack,
remove the paint at the corresponding place.
Danger: La mise à la terre des modules PowerCube-M1-C repose sur le contact direct des métaux
entre la surface de module et celle du rack. Il n’est donc pas nécessaire de mettre les câbles à la terre. Si vous
utilisez un rack normal, il est possible d’enlever la peinture aux positions correspondantes.
The fix hole of the fix frame can be fixed directly with the metal frame of the cabinet. Then through the grounding
of the cabinet to ensure reliable grounding.
The cable shall be copper with yellow-green color.
The ground cable can also be connected from the M8 grounding bolt on the frame base. Grounding cable must
be≥6AWG.
3.3.4.2 Cables Connection

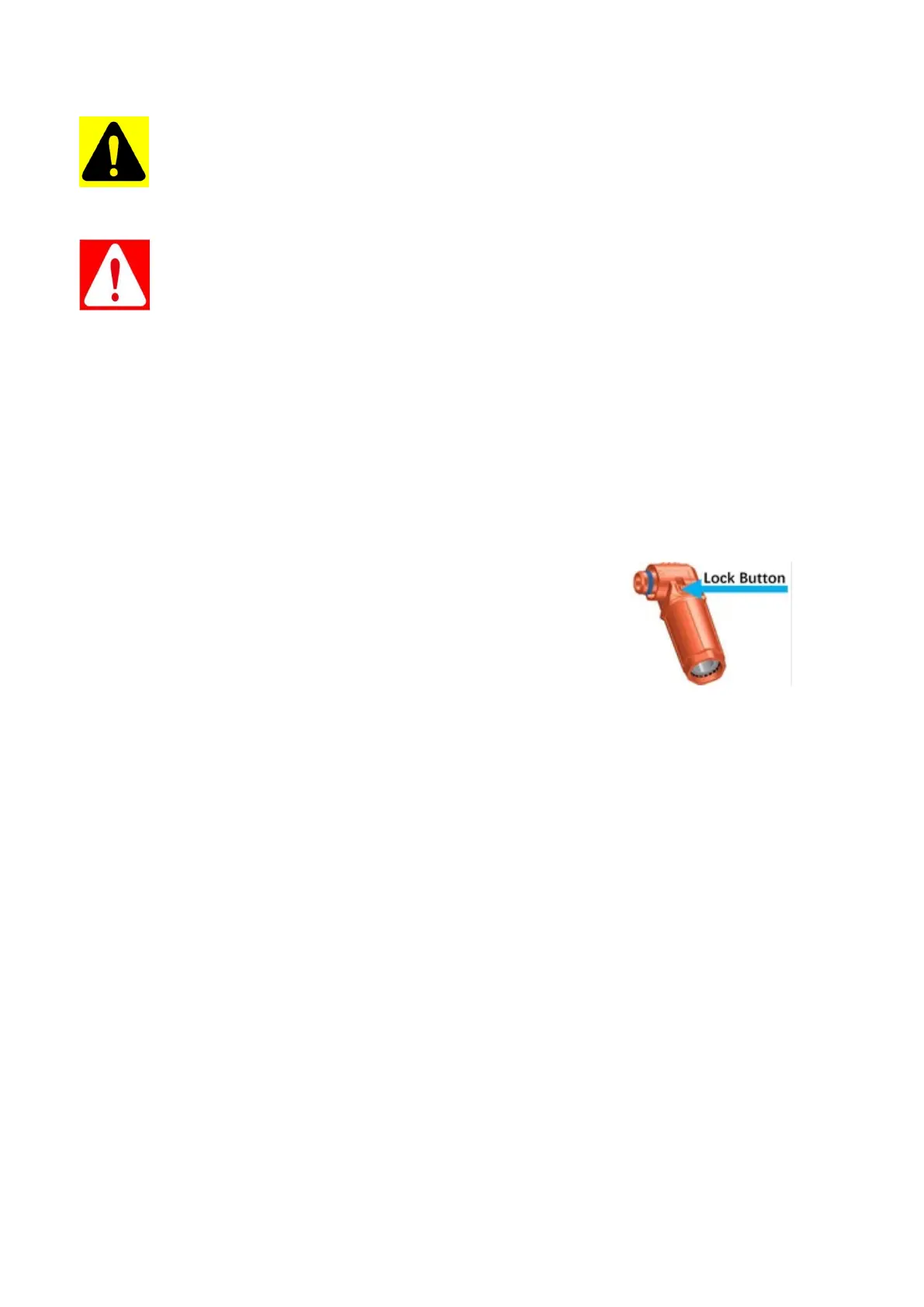

NOTE: Power cable uses water-proofed connectors. It must keep pressing this
Lock Button during pulling out the power plug.
