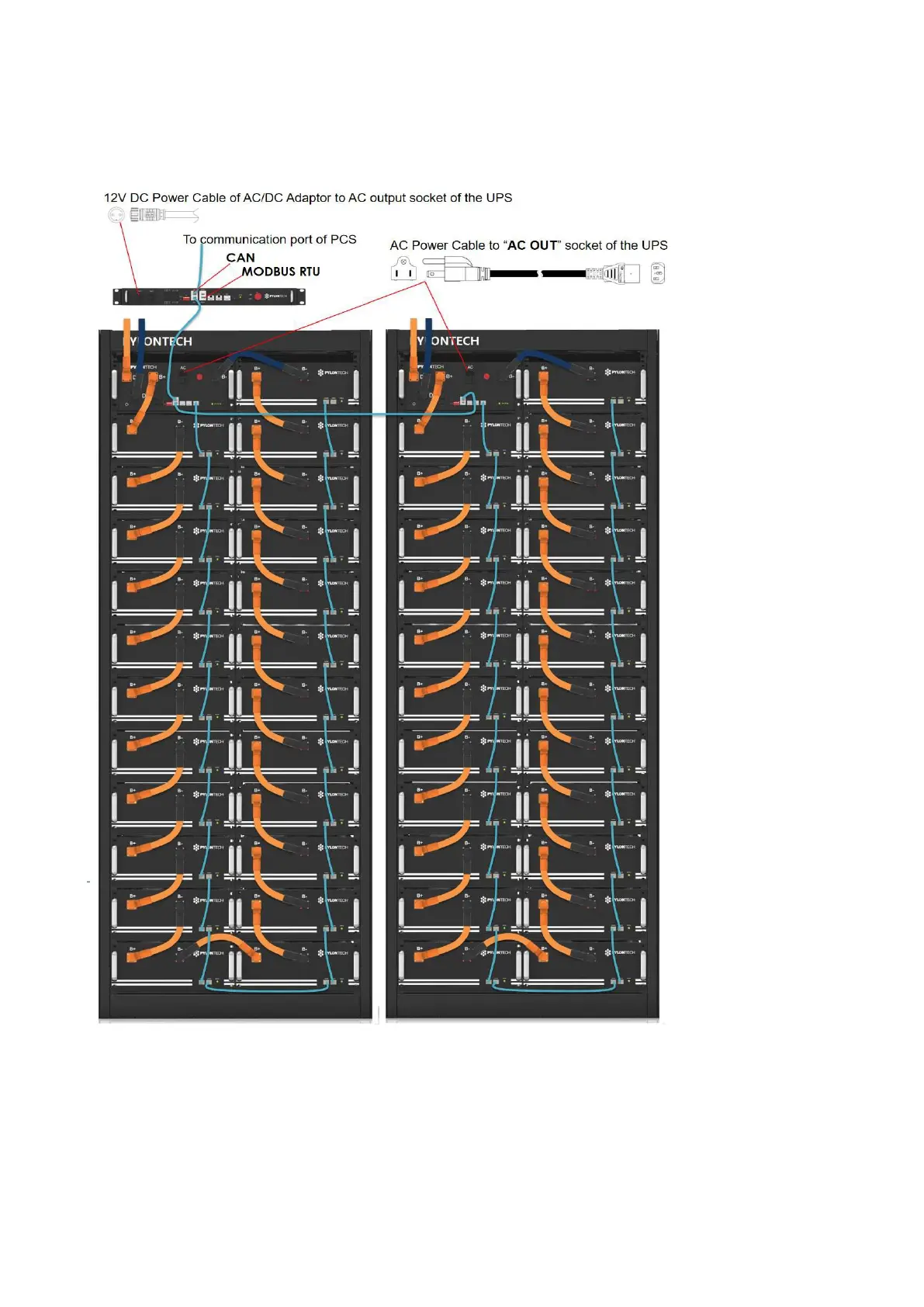

I. CAN Communication Mode between MBMS and BMS (battery string qty. ≤6 set)

When system configured PowerCube-M1-C ≤6 set. The communication between PowerCube-M1-C uses CAN

communication mode. The communication between the MBMS and the BMS of 1st PowerCube-M1-C uses CAN

communication mode.

NOTE: The 1st PowerCube-M1-C should be installed nearest by the MBMS.

Pylontech M1C-UL9540 - Page 75
