72

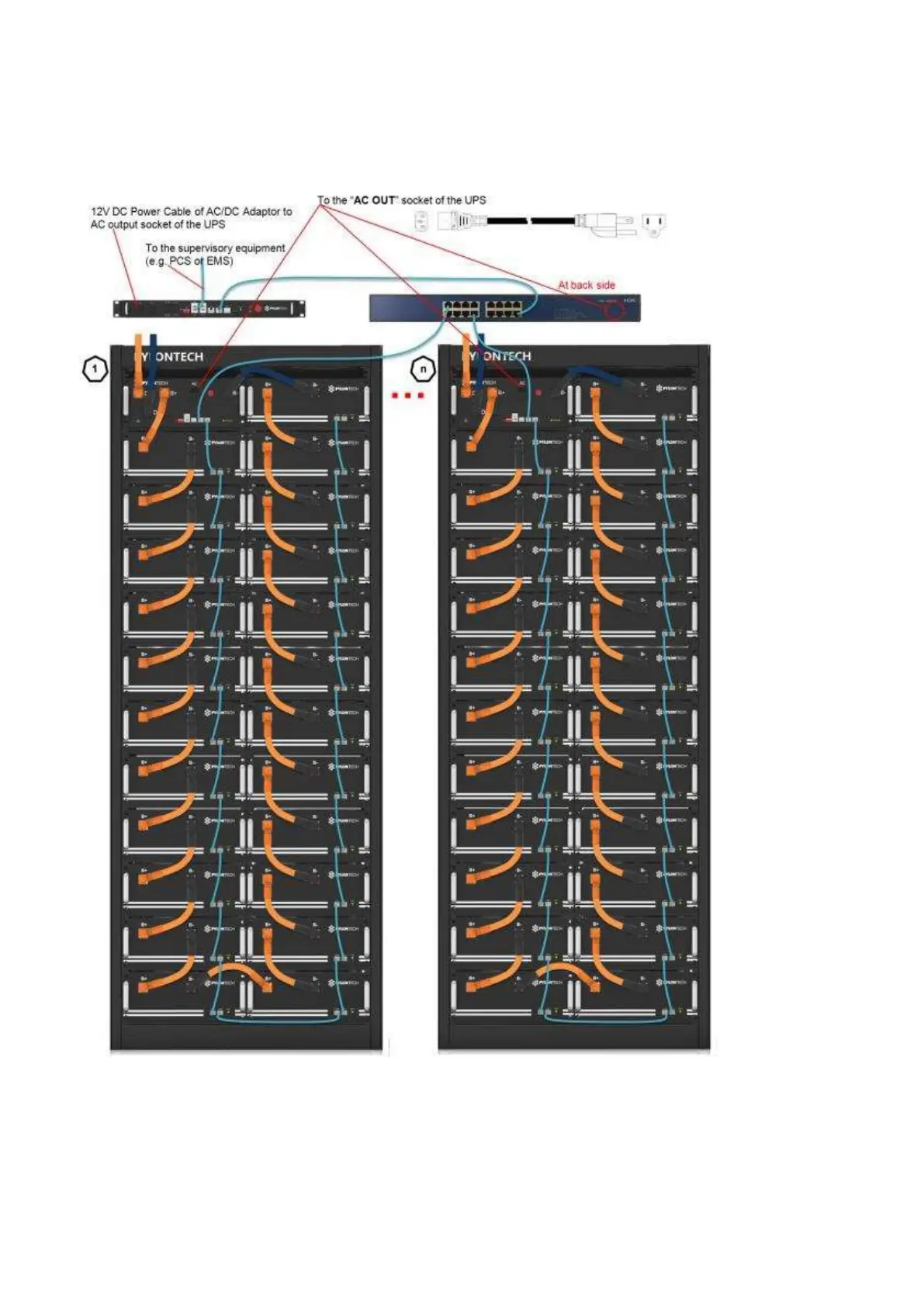

II. Ethernet communication between MBMS and BMS (battery string qty. ≤32 set).
A.
When system configured PowerCube-M1-C ≤32set. The communication between PowerCube-
M1-Cs and MBMS uses Ethernet Switch by LAN communication.
B.
Relation of MBMS and battery strings (PowerCube-M1-Cs) in the ports of Ethernet Switch
Both ends of BMS to MBMS communication cables must be marked with labels.
Les deux côtés du câble de communication de BMS à MBMS doivent être marqués avec des
étiquettes.
