MAIN MENU SETUP GUIDE QT426 User Manual
31 | Page
4.5.2 Motion
Motion includes two sub menus: motion and schedule.
① Motion
Step 1: Enter into system configurationalarm configurationmotion; refer to Fig 4-23:

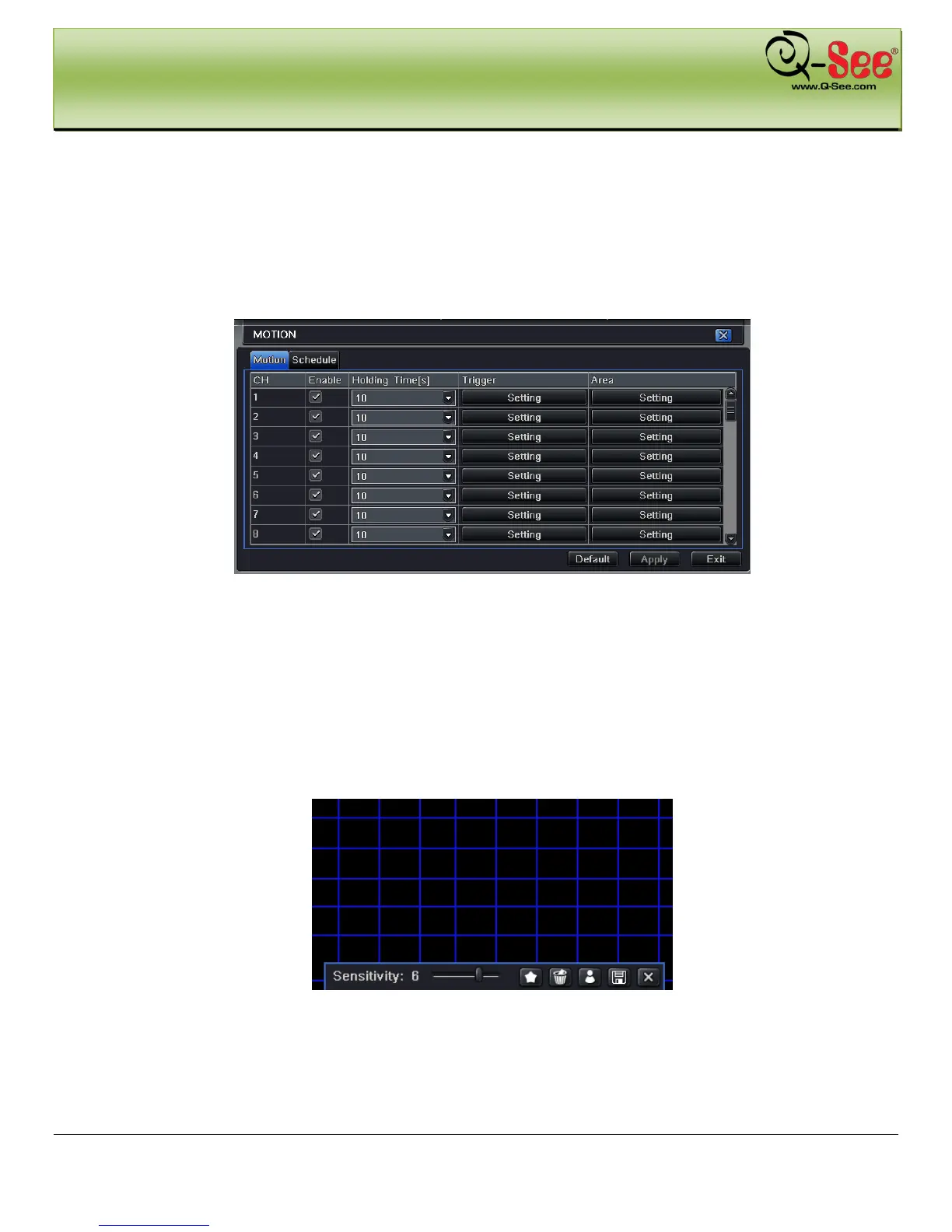

Fig 4-23 Alarm Configuration-Motion
Step 2:Enable motion alarm, set alarm hold time which means time interval between two consecutive motion events.
If there is other motion detected during the interval period which is considered continuous movement; it will be
included in the current file, otherwise, it will be considered the start of a new motion file. Click Trigger button, a dialog
box will pop-up:
Step 3: The setup steps of motion trigger are similar to alarm handling; user can refer to Chapter 4.5.1 Sensor
alarm handling for more details.
Step 4: Click Area button, a dialog box will pop-up shown as Fig 4-24:
Fig 4-24 Motion-Area
