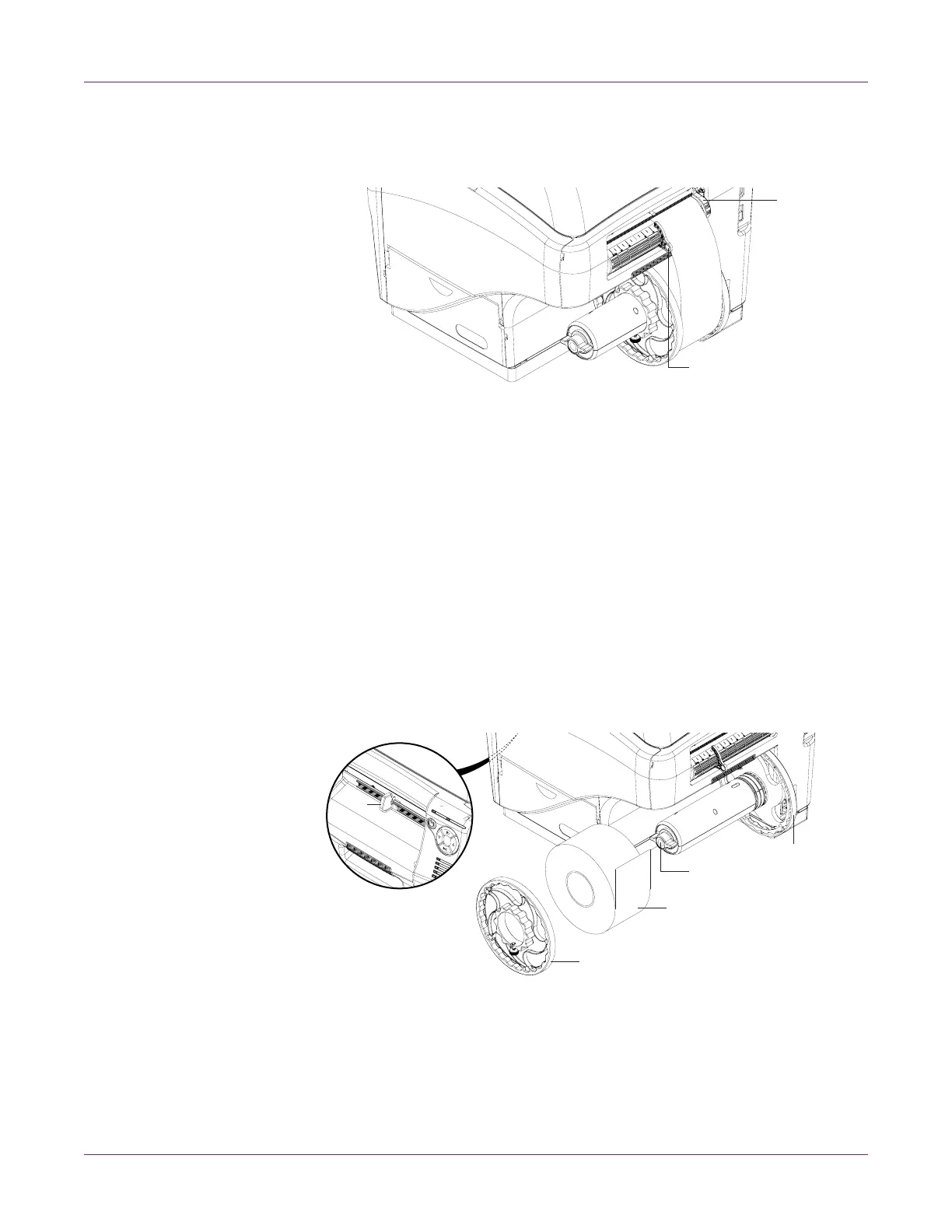

8 Place the media near the entry slot and slide the adjustable media guide [6] to the
width of the media. The edges of the media should lightly contact the edges of the
fixed media guide [7] and the adjustable media guide [6].
9 Slowly guide the media into the printer as illustrated. You will feel slight resistance
as the media enters the roller area. Make sure there is no excessive slack in the
media during this process.
10 The printer will beep three times to indicate the media has been detected. Release
the media when the printer starts automatically feeding it into the printer. The
printer will feed media and the loading process will be complete.
Loading Media with Manual Feed Mode
In most cases, the standard media loading procedure is the best method for installing
a label roll. If you experience multiple failures using the standard method, use the
alternate method described in this section.
Note: This procedure applies only to printers with firmware version 1.1 or later.
1 Turn the wing nut [1] on the end of the mandrel counterclockwise to loosen the
mandrel.
2 Loosen the fastener on the outer flange [4]. Then remove the outer flange from the
mandrel.
3 Orient the media roll [2] as illustrated and put it on the mandrel. Make sure the roll
makes contact with the inner flange [3].
