Browser-Based User Interface
R&S
®
NRPxxS(N)
45User Manual 1177.5079.02 ─ 10
Aperture Time
Sets the aperture time, the width of the sampling windows.
Remote command:
[SENSe<Sensor>:][POWer:][AVG:]APERture on page 94
Duty Cycle
Sets the duty cycle, the percentage of one period during which the signal is active, for
pulse modulated signals. If the duty cycle is set, the sensor calculates the signal pulse
power from its value and the average power.
Remote command:
[SENSe<Sensor>:]CORRection:DCYCle:STATe on page 110
[SENSe<Sensor>:]CORRection:DCYCle on page 110
Smoothing
Enables the smoothing filter, a steep-cut off digital lowpass filter. The filter reduces
result fluctuations caused by modulation.
Remote command:
[SENSe<Sensor>:][POWer:][AVG:]SMOothing:STATe on page 96
6.4.2 Burst Mode
Describes the parameters of the burst average measurement.
Further information:
●
Chapter 9.7.2, "Burst Average Measurement", on page 96
Detailed description of the burst average mode and its remote commands

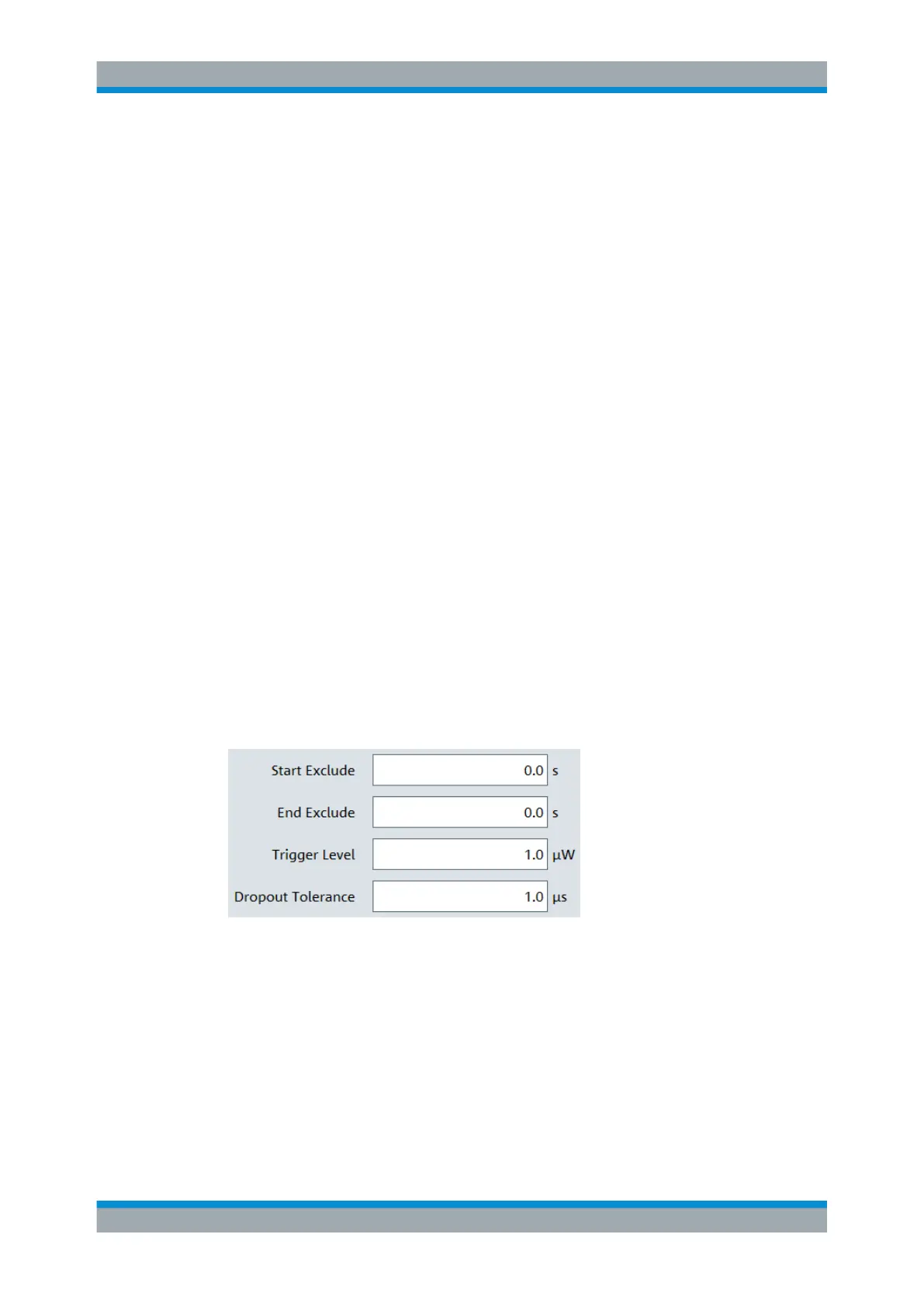

Access: main dialog of the web user interface > navigation pane > "Burst"
Start Exclude.................................................................................................................45
End Exclude..................................................................................................................46
Trigger Level................................................................................................................. 46
Dropout Tolerance.........................................................................................................46
Start Exclude
Sets a time that is to be excluded at the beginning of the measurement period.
Remote command:
[SENSe<Sensor>:]TIMing:EXCLude:STARt on page 109
Measurement Modes
